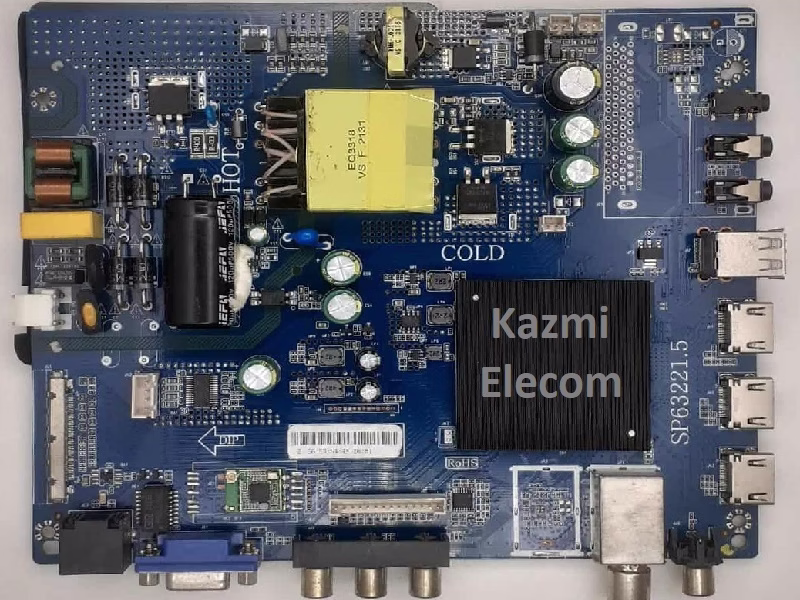

SP63221.5 UHD Smart Board
SP63221.5 is an Intelligent smart Wifi 4K universal network driver LED TV motherboard with a support resolution of Ultra High Definition 3840×2160. SP63221-5 is dedicated to 60 Hz screens. It is a combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, VGA interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. SP63221_5 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C/S) signals (Optional). This board has an inbuilt WiFi module and LAN interface. T.MS6586.U801 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Universal Driver Board
Model: SP63221.5
Chipset: MT9632 M7332
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 9
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali 400
RAM: 1.5 GB DDR3
ROM: 8 GB EMMC
Backlight: 500-750mA, 58-87V, 45W
USB Input: 02
HDMI Input: 03
Scart: No
VGA: Yes
RJ45 (LAN): Yes
Wifi: Yes
AV Input: Yes (Mini)
Sound Output: 8Wx2
RF TUNER: Available
Video System: PAL/SECAM/NTSC
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
SP63221.5 Firmware for free download:
