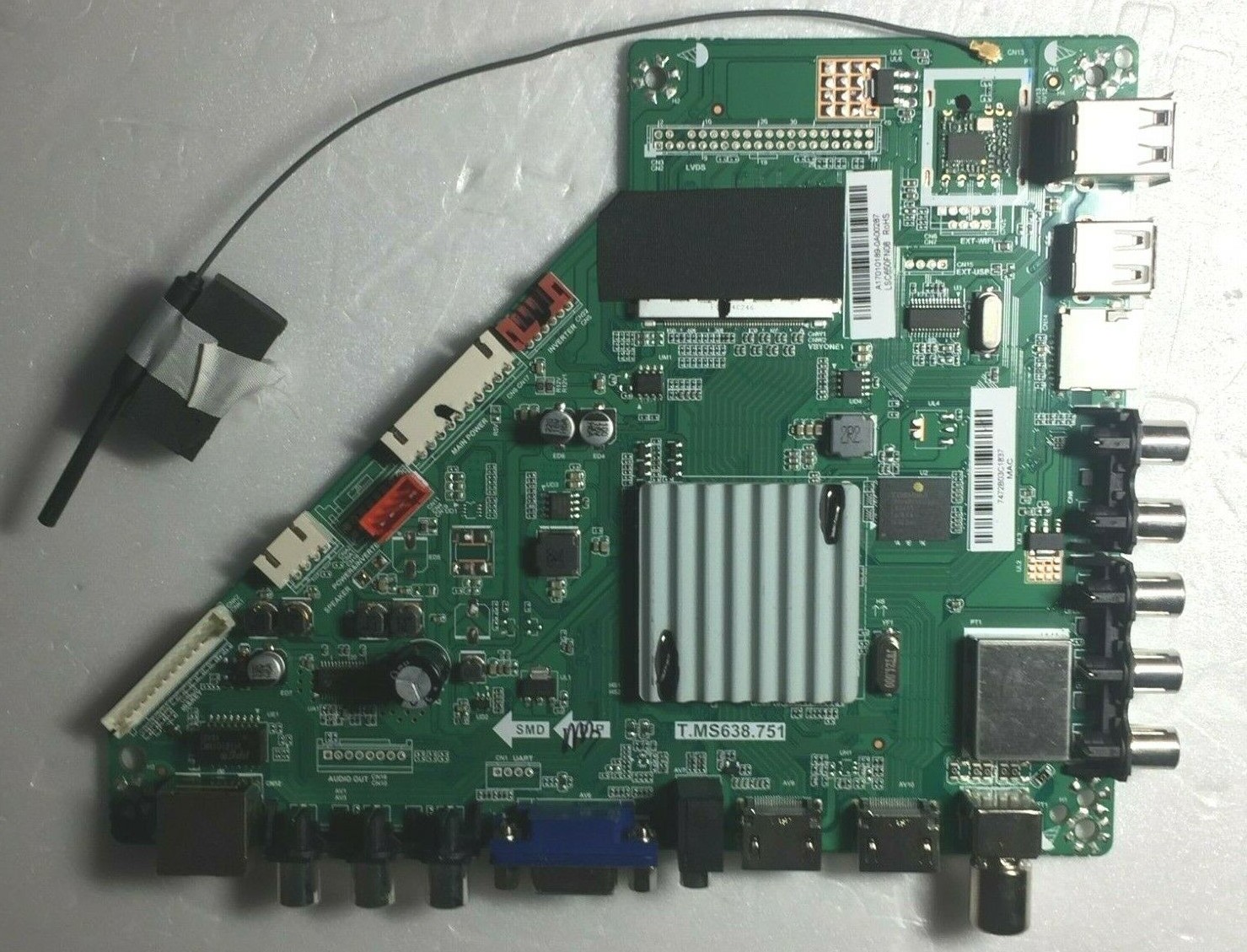

T.MS638.751 4K Smart Internet TV Board
T.MS638.751 is an Intelligent smart 4K network driver LED TV board with a support resolution of 3840×2160. T_MS638_751 is dedicated to 100 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. T-MS638-751 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. T MS638 751 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C/S) signals. T.MS638.751 Firmware file is given below for Technician’s support.
General Features & Specifications:
Brand/Make: LCD/LED 4K internet Smart LED TV Motherboard
Model: T.MS638.751
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 7.0
CPU: Quad Core
GPU: Mali T720MP2
RAM: 1GB DDR3
ROM: 4Gb/8Gb
OSD Language: Chinese Default
Sound Output: 20W (10Wx2)
RF TUNER: DVB-T/T2/C/S/S2/(S/S2 option)
Video System: PAL/SECAM/NTSC
Power Input: 100-240 ~ 50/60Hz
Power Consumption: 100W (may be different according to panel)
Standby Power: 0.5W
Firmware: allupgrade_msd638_4G.bin
Firmware Type: USB Update Firmware, T.MS638.751 program data USB
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.MS638.751 firmware file for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | T.MS638.751-3840x2160-768M-4G.part1 | Download |
T.MS638.751-3840x2160-768M-4G.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
I need mother board of Micromax 42in led tv HD which will you suggest me I need 2 ram and 8gb memory kindly help
visit your local market
i did it and now its said “loading data 1%” and stuck
ram/rom maybe mismatch
Do you have the T.MS638.751 8G (instead of 4G) firmware?
No
File have empty of t.ms638.751 4k. So please update or give a link in mailm
