T.MS6586.U782 UHD Smart Board
T.MS6586.U782 is an Android network driver board with a UHD resolution of 3840×2160. T-MS6586-U782 has a powerful Wi-Fi system. It is a 4K Smart UHD TV with an Android Platform and great entertainment features. It has an Ultra HD Wide Screen. T_MS6586_U782 Smart Board has multiple ports, including A/V, USB interface ports, and many HDMI ports, in addition to earphones. T-MS6586-U782 has a LAN/RJ45 Connector interface port for the wired internet network.
T.MS6586.U782 is a Non-Combo Smart Network board with a Digital TV tuner (Optional) built in. The graphics and sound quality of this motherboard are good. T-MS6586-U782 Android board is very good, and the Response rate is very efficient. The T-MS6586-U782 China smart network board can support 43″ to 75″ screen panels. T.MS6586.U782 firmware is available for technician support.
Technical Specifications:
Brand/Mark: China Universal Android WIFI Board

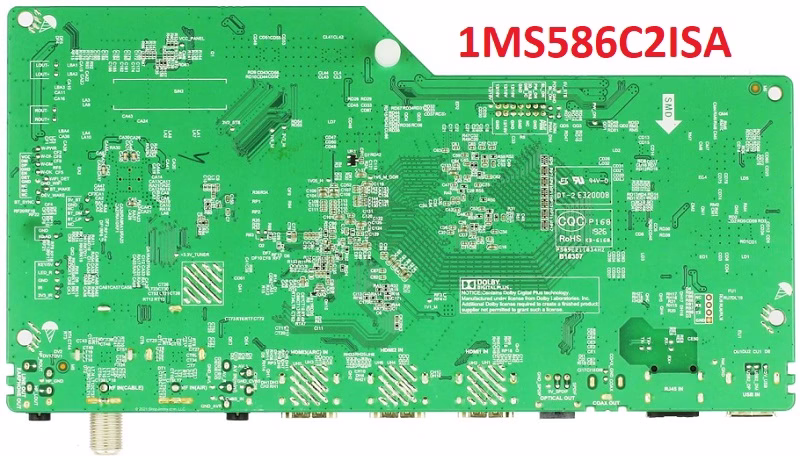

Main Board: T-MS6586-U782 1MS586C2ISA
Main Chipset: MS6586LA
OS: Android 9.0 Pie
CPU: 4-Core
CPU Frequency: 1200 MHz
GPU: ARM Mali-470 MP3
GPU Frequency: 470 MHz
Back Light V/C : mA
Ram: 1 GB
Rom: 4 GB eMMC
Interface Type: RJ45, HDMI, AV, TV, USB1, Earphone
Resolution: up to 3840×2160
Panel Voltage: 12V
Tuner: R842
HDMI Input: 03
USB Interface: 01
LAN Interface: Yes (RJ45)
Firmware Type: EMMC Backup
EMMC: KLMAG1JETD-B041
Product: Panasonic, Vios, Daewoo
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
T.MS6586.U782 Firmware for free download:
