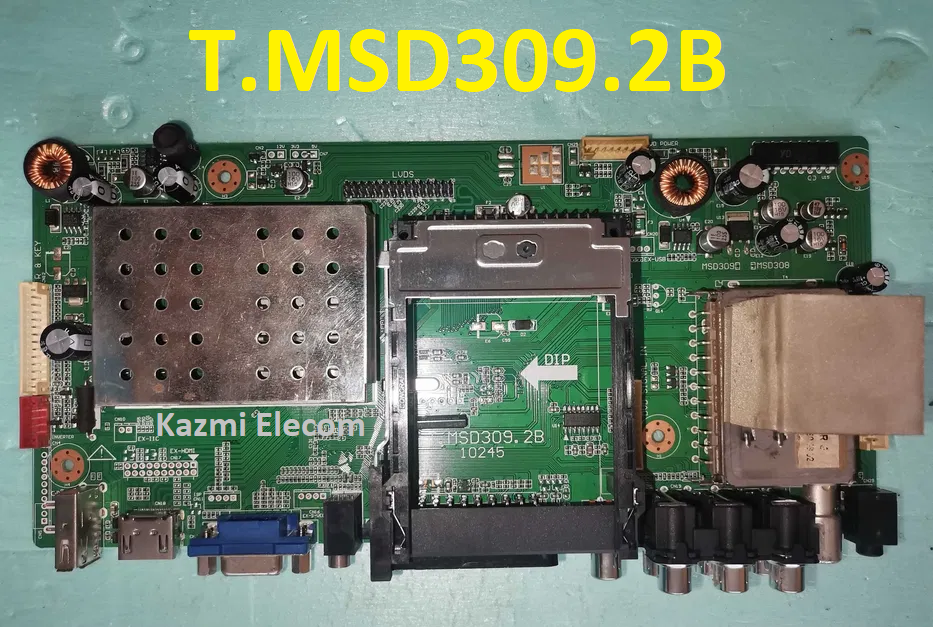

T.MSD309.2B LED TV Board

T.MSD309.2B is a universal LCD/LED Board that has Full HD resolution Supported up to 1920×1080. T-MSD309.2B is a combo board which means the main power supply, ATV board, and LED backlight driver board is a built-in single PCB. It has all the connectivity ports as per user requirements as HDMI, AV, RF, VGA, and SCART. The firmware files are given below for the technician’s support.


General Specifications:

Brand/Mark: China Universal

Model: T.MSD309.2B 10245, 11314

Main Chip: MSD308, MSD309


Product: LED TV

Input Voltage: 12V DC

Backlight Volt:

MAX Backlight Watt: 65w

Backlight Current:

Resolution: up to 1920×1080

Flash size: 4 MB

AUDIO: 1517

Tuner: DT68CT-2-E

Service Menu:



The following Software is a backup dump and can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

T.MSD309.2B Firmware Free Download :


For video tutorials, visit “Kazmi Elecom” my YouTube channel.
