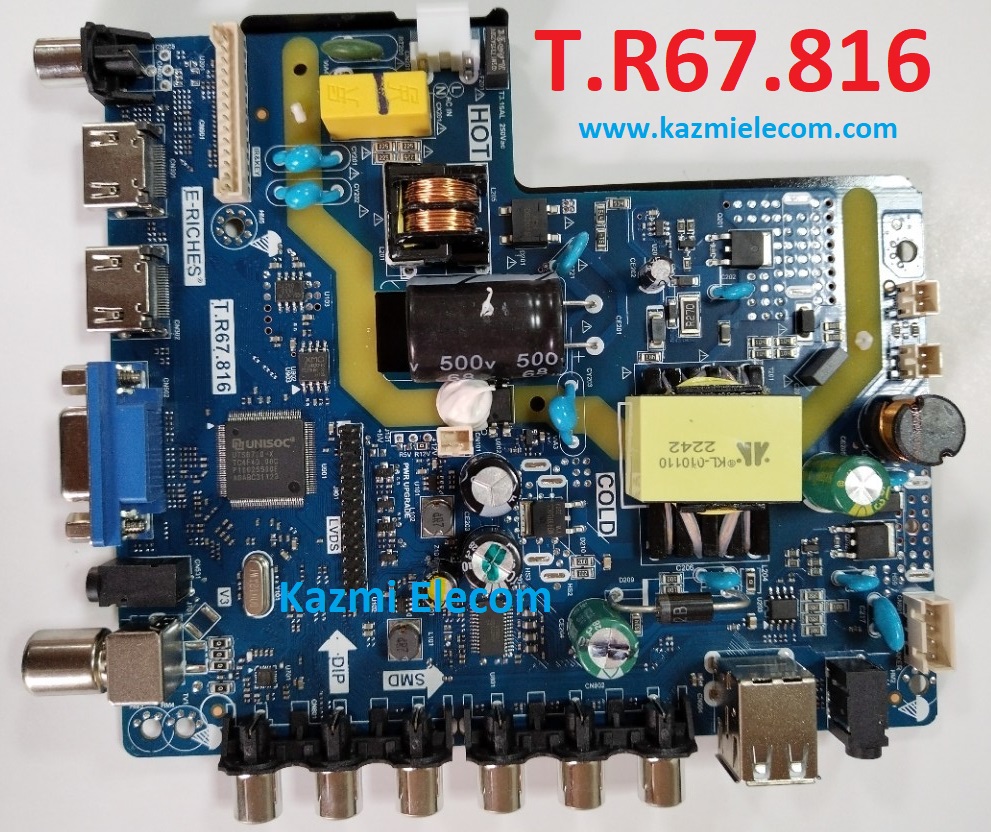

T.R67.816 LED TV Board
T.R67.816 is a simple ATV Driver Motherboard designed for LCD/LED TVs. It is designed to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module LED Backlight Inverter Circuit module and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.
Its USB input interface can be used to update software/firmware and play multimedia files. It can also support Earphone output. T.R67.816 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.R67.816
Main Chip: UTS6710
Product: LCD/LED TV
LED Backlight: 33V-93V 48W 600mA
Flash IC: 4Mb
Sound Chip: 2X7W
Tuner IC:
Screen supported: 32-39 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Firmware Name:
Firmware Type: BACKUP dUMP
Resolution Code:
- Input 31181
- Input 31182
Service Code:
Menu 1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download your required resolution and then extract it you will get the folder. For More Details about the download process, watch the video Click Here
sir we need T.R67.816 RESOLUTIONS 1366×768 1920×1080 SOFTWARE.
link updated
T.R67.816 SOFTWARE
download
