T56J11.2 Universal LCD/LED HDTV Controller Board
T56J11.2 is a universal small jumper setting board. This board is suitable for 15-inch to 55-inch LCD LED TV Panel Screens. It is also compatible with Laptop panel screens. This is a non-Combo board which means the input DC 12V circuit module or adapter Supply will be required to power on this board. The lamp card or LED backlight inverter driver controller board will also be required as per the user’s requirements.
Basic Info:
Model No. T56J11.2
Main Chipset: TSUV56RJUL-Z1
Trademark: ES
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes

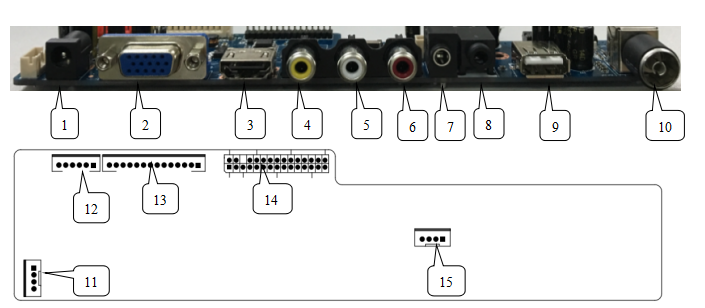

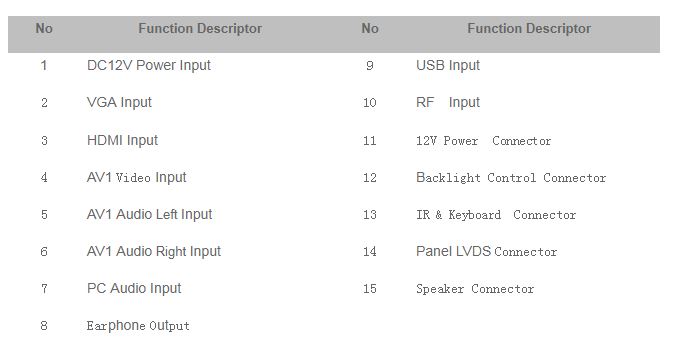

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.24W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Plugin the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the power and Wait even IR indicator led stops flashing
- Done. Unplug the U-disk (It will take a max 1 min to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required resolution firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T56J11.2 Firmware Free Download All resolutions Here :
| S.NO. | BOARD/RESOLUTION | DOWNLOAD LINK | REMOTE |
|---|---|---|---|
| 1 | T56J11_D8_640X480_170601 | Download | China |
| 2 | T56J11_D8_800X600_170721 | Download | China |
| 3 | T56J11_1024X768_170601 | Download | China |
| 4 | T56J11_1280X768_170601 | Download | China |
| 5 | T56J11_1280X1024_170601 | Download | China |
| 6 | T56J11_1366X768_170601 | Download | China |
| 7 | T56J11_1440X900_170601 | Download | China |
| 8 | T56J11_1600X900_170601 | Download | China |
| 9 | T56J11_1600X1024_170622 | Download | China |
| 10 | T56J11_1600X1200_170601 | Download | China |
| 11 | T56J11_1680X1050_170601 | Download | China |
| 12 | T56J11_1920X1080_S8_170601 | Download | China |
| 13 | T56J11_1920X1200_170601 | Download | China |
| 14 | T56J11_CLAA150XG_D8_XGA_170601 | Download | China |
| 15 | T56J11_CLAA150XG_S8_XGA_170601 | Download | China |
| 16 | T56J11_1366X768_170812_RUBA | Download | Changhong Ruba |
| 17 | T56J11_1920X1080_170812_RUBA | Download | Changhong Ruba |
| 18 | T56J11_852X480_170828_LG | Download | LG |
| 19 | T56J11_1024X768_170828_LG | Download | LG |
| 20 | T56J11_1280X1024_170828_LG | Download | LG |
| 21 | T56J11_1366X768_170828_LG | Download | LG |
| 22 | T56J11_1680X1050_170828_LG | Download | LG |
| 23 | T56J11_1920X1080_170828_LG | Download | LG |
| 24 | T56J11_1920X1200_170828_LG | Download | LG |
| 25 | T56J11_852X480_170828_SAMSUNG | Download | Samsung |
| 26 | T56J11_1024X768_170828_SAMSUNG | Download | Samsung |
| 27 | T56J11_1280X1024_170828_SAMSUNG | Download | Samsung |
| 28 | T56J11_1366X768_170828_SAMSUNG | Download | Samsung |
| 29 | T56J11_1680X1050_170828_SAMSUNG | Download | Samsung |
| 30 | T56J11_1920X1080_170828_SAMSUNG | Download | Samsung |
| 31 | T56J11_1920X1200_170828_SAMSUNG | Download | Samsung |
| 32 | T56J11_852X480_170828_SONY | Download | Sony |
| 33 | T56J11_1024X768_170828_SONY | Download | Sony |
| 34 | T56J11_1280X1024_170828_SONY | Download | Sony |
| 35 | T56J11_1366X768_170828_SONY | Download | Sony |
| 36 | T56J11_1440X900_170828_SONY | Download | Sony |
| 37 | T56J11_1680X1050_170828_SONY | Download | Sony |
| 38 | T56J11_1920X1080_170828_SONY | Download | Sony |
| 39 | T56J11_1920X1200_170828_SONY | Download | Sony |
| 40 | T56J11.2_Multi Panel Software | Download | |
| 41 | T56J11.2-1280X800-USB | Download | |
| 42 | T56J11.2-1400X1050-USB | Download |
