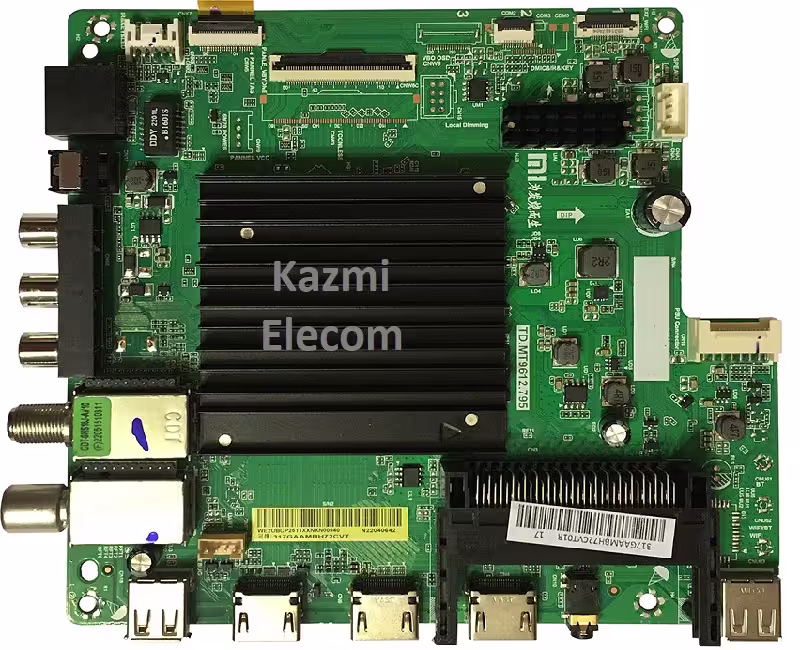

TD.MT9612.795 UHD Smart Board
TD.MT9612.795 is an Intelligent, smart Android network driver LED TV motherboard with an Ultra High-Definition 3840×2160 resolution. TD-MT9612-795 is dedicated to 60 Hz screens. It is a combo board. It features full connectivity for the input interface. It features multiple input connectivity ports, including dual HDMI, Mini AV, Coaxial, headphones, S-Video, optical, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. TD-MT9612-795 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special Bluetooth 5.1 connectivity feature. This board has an inbuilt WiFi module and LAN interface. The TD.MT9612.795 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED UHD Smart Android Driver Board
Model: TD.MT9612.795
Chipset: MT9611IAATA
Supported Resolution: 3840×2160
Screen Format: 16:9
Operating System: Android 10
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1/2 GB DDR3
ROM: 8/16/32 GB EMMC
Backlight: 60-72V 300mA,
USB Input: 02
HDMI Input: 02
Scart: Yes
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes (Mini)
Sound Output: 20W DTS-HD
RF TUNER: DVB-C , DVB-S2 , DVB-T , DVB-T2
Video System: PAL/SECAM/NTSC
Product: XIOMI, MI, SHIAMI
Power Input: 100- 240V 50/60 Hz
Firmware Type: EMMC Backup

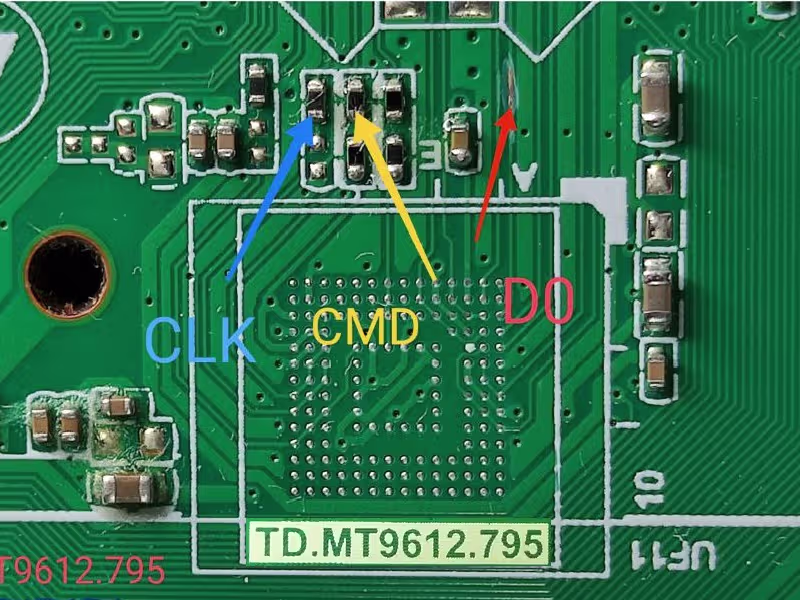

EMMC: THGAMRG7T13BAIL
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have sufficient knowledge of loading/installing software/firmware or dump files, or are experiencing any issues during firmware installation, visit and read here first.
TD.MT9612.795 Firmware for free download:
