TP.ATM30.PB817 Software Free Download

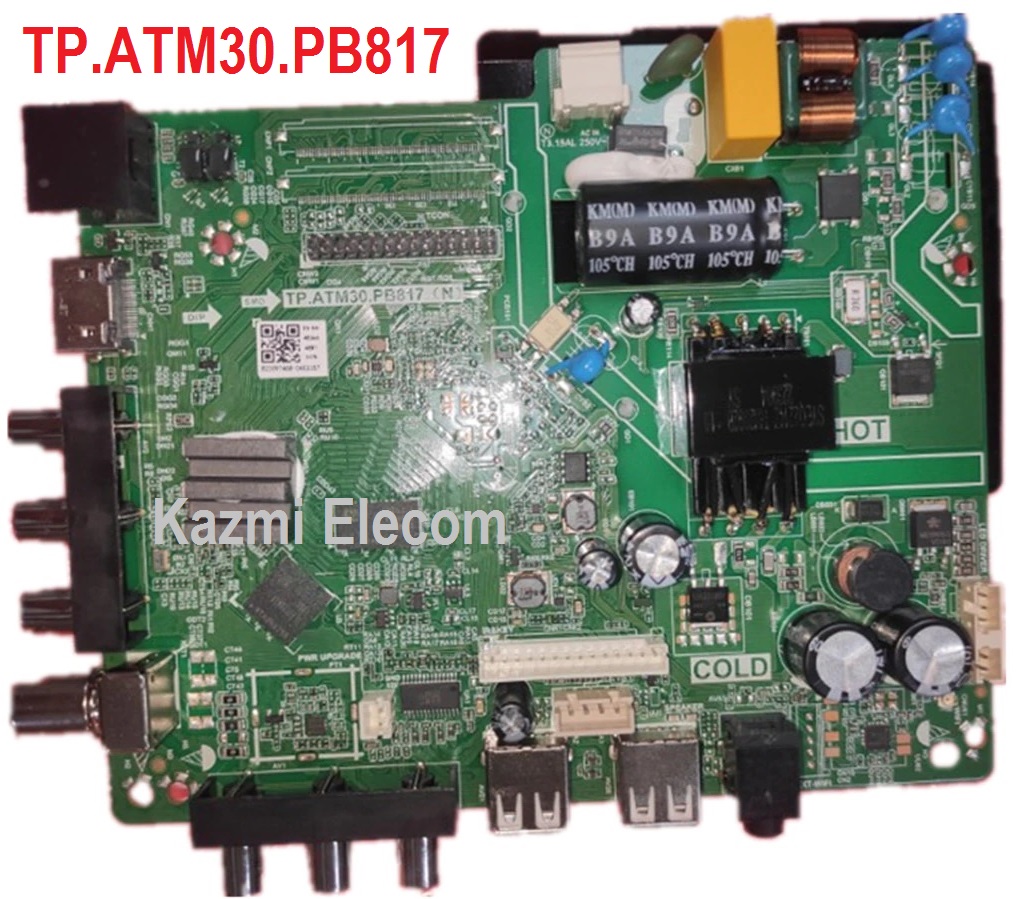

TP.ATM30.PB817 Smart LED TV Board

TP.ATM30.PB817 is a universal android network driver smart led tv board with an FHD resolution of 1920×1080. TP_ATM30_PB817 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP ATM30 PB817 Smart Board has Dual A/V ports, Dual USB interface Ports, and an HDMI port as well. TP-ATM30-PB817 has a LAN/RJ45 Connector interface port also for the wired internet network. TP.ATM30.PB817 is a Combo Network Triple play board that has a Digital TV tuner built-in in it.

The Graphics and Sound quality of the TP.ATM30.PB817 android board is very good and the Response rate is very efficient. TP.ATM30.PB817 china’s smart network board can support up to 42″ LED Panels but for better results, it can be used in 28″ to 32″ panels. TP.ATM30.PB817 firmware file is given below for the technician’s support.

Tp.atm30.Pb817

General Specifications:

Brand/Mark: Universal Android WIFI Network Drive Smart Board

Main Board: TP.ATM30.PB817

Main Chipset: aml920

Operating System: Android 9

CPU: A53

GPU: Mali-450

CPU: A53

GPU: Mali-450

CPU Frequency: 1.2GHz

GPU Frequency: 432MHz

RAM: 512 Mb

ROM: 4Gb

Backlight:  34-80V 480MA

Resolution: up to 1920×1080

Screen Size supported: 28 to 32 Inch

Audio Output power: 2x8W

Input Voltage: 200-240V AC

Firmware: allupgrade_aml920_4G_512M_mxl661_50.img, allupgrade_aml920_4G_512M_multi_54.img

Firmware Type: USB Updateable Firmware

Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

TP.ATM30.PB817 firmware file for free download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
