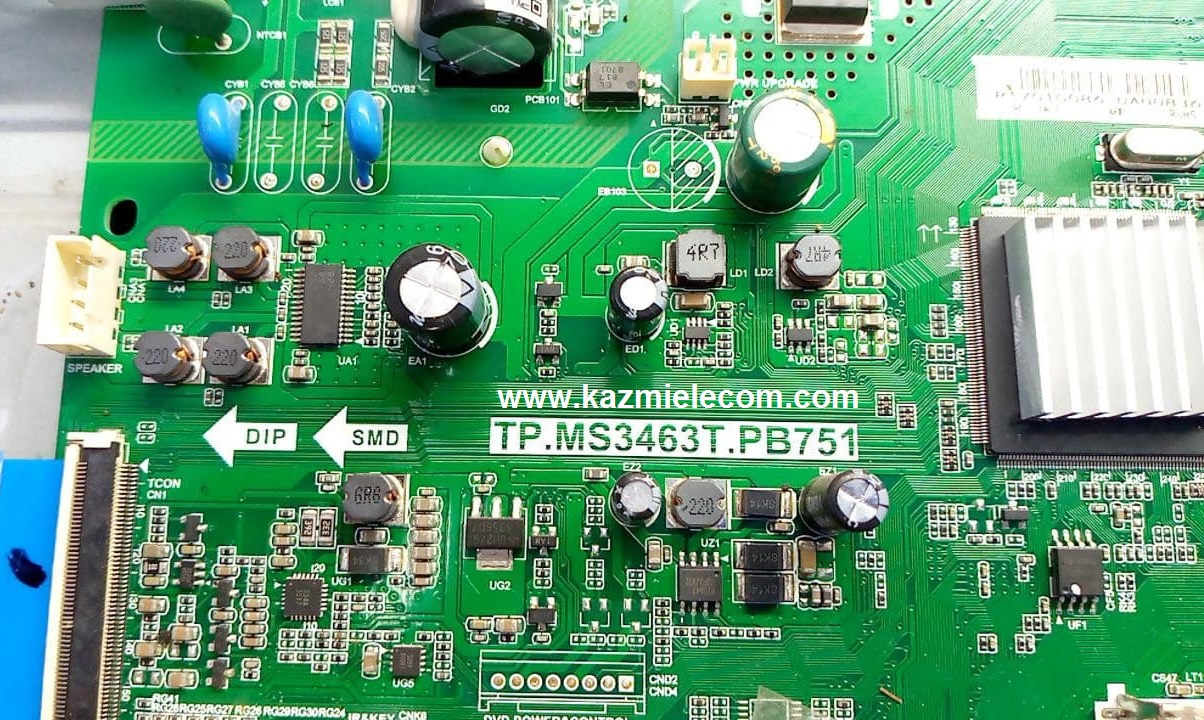

TP.MS3463T.PB751 LED TV Board

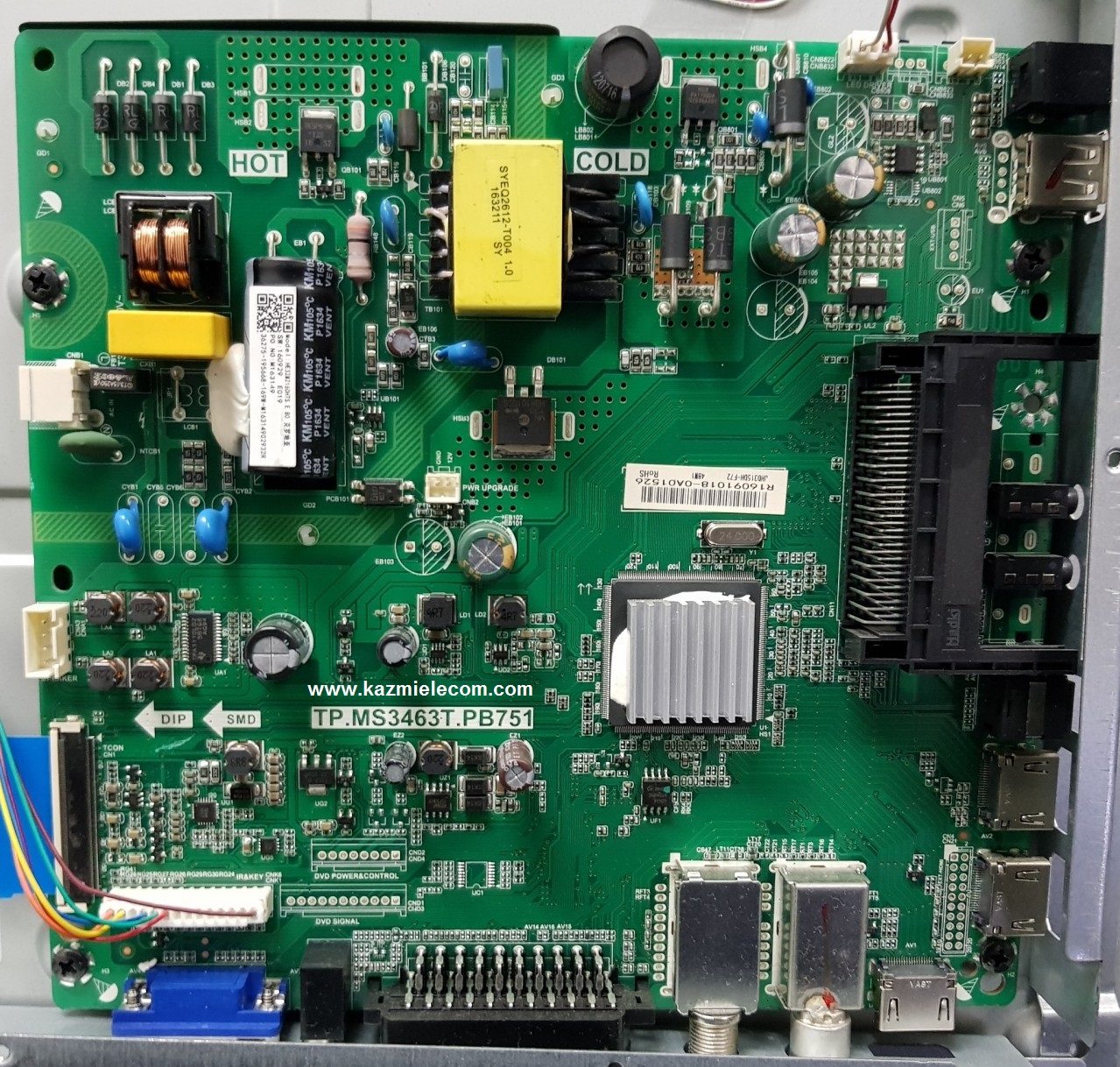

TP.MS3463T.PB751 is a universal LCD/LED Board that has Full HD resolution, supporting up to 1920×1080. TP_MS3463T_PB751 is a combo board, which means the main power supply, ATV board, and LED backlight driver board is a single PCB. The firmware files are given below for the technician’s support.
TP.MS3463T.PB751 is an ATV and DTV board. It has multiple input output connectivity, user interface ports as per user requirements, such as multiple HDMI inputs, VGA (PC Input), USB interface for multimedia and software Upgrade, SCART, Headphones, etc.
General Specifications:
Brand/Mark: China Universal
Model: TP-MS3463-PB751
Main Chip: MSD3463
TV System: PAL\SECAM\NTSC PLAYBACK
Product: LED TV
Input Voltage: 220V AC
MAX Backlight Watt: 48w
Backlight voltage:
Resolution: up to 1920×1080
Flash size: 8 MB
Service Menu:
Menu
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issue during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP-MS3463-PB751 firmware for free download:
