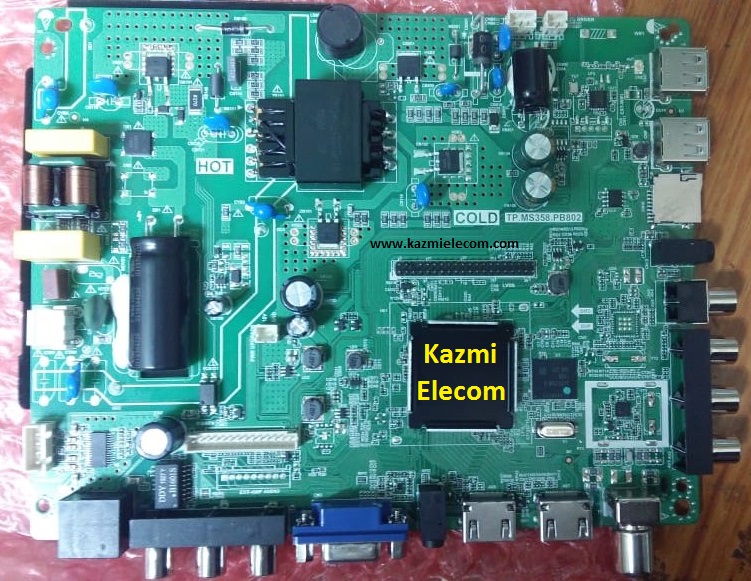

TP.MS358.PB802 Smart WIFI LED TV Board
TP.MS358.PB802 is a high-speed network driver board with an FHD resolution of 1920×1080. It is dedicated to 32″ to 46″ screens. TP_MS358_PB802 has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS358-PB802 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphone also.
TP.MS358.PB802 has a LAN/RJ45 Connector interface port also for the wired/cable internet network. TP.MS358.PB802 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP.MS358.PB802 android board are very good and the Response rate is very efficient. TP.MS358.PB802 china smart network board has android 4.4 version.
Technical Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP.MS358.PB802
Main Chipset: MSD6A358ATH-003D
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)/DTV (DTMB)
Operating System: Android 4.4
CPU: A35*4
CPU Frequency: 1.5 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512 Mb DDR SD-Ram
Rom: 4Gb eMMC
Backlight Power/Voltage: 65W 12V 30V-160V/35W 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0
75W 12V 36V-140V/45W
80W 12V 60V-140V/50W
82W 12V 141V-180V/52W
Backlight Current: 350-600mA
Audio Output: 2x8w
Resolution: up to 1920×1080 (32” to 46″)
Panel Power: 12V
Power Input: 100-240V AC
Service Code: Menu+1147
Firmware Name: msd358_4G_512M_AS_sos.bin OR msd358_4G_512M_AS_ref44.bin
Firmware Type: USB Upgradeable
Note: The following given firmware is USB upgradeable. Download all parts of the required resolution and then extract/unzip anyone of them you will get the folder. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MS358.PB802 firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | TP.MS358.PB802_A20_1366x768_512M_4G_Pakistan.part01 | Download |
TP.MS358.PB802_A20_1366x768_512M_4G_Pakistan.part02 | Download | |
2 | TP.MS358.PB802_1920x1080_1G_8G_Amman.part01 | Download |
TP.MS358.PB802_1920x1080_1G_8G_Amman.part02 | Download | |
3 | TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part1 | Download |
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part2 | Download | |
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part3 | Download | |
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part4 | Download | |
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part5 | Download | |
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part6 | Download | |
4 | TP.MS358.PB802_1366X738_1G_8G_REF41.part1 | Download |
TP.MS358.PB802_1366X738_1G_8G_REF41.part2 | Download | |
TP.MS358.PB802_1366X738_1G_8G_REF41.part3 | Download | |
TP.MS358.PB802_1366X738_1G_8G_REF41.part4 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Firmware File:
CS437353_FWB_F19002_MS358_PB802_A20_PAKISTAN_LC320DXY_SJA6_WB_S06_NOLOGO_4G_REF44
msd358_8g_1g_AS_ref38.bin needed.
Board: BD_TP_MSD358.PB802
Please upload.
Thanks.
TP MS 358 PB802
Dear sir can you upload 1920×1080 resolution.
TP. MS358.PB803.
1366×778.
Software chahiye sir
hello sir you have this file
Main Board Model: TP.MS358.PB802
ref38
Android 8
Ram 1GB
Rom 8GB
Board BD_TP_MS358_PB802
msd358_8G_1G_AS_ref38.bin file needed.
Please upload.
NB: Please check the file name uploaded in this post TP.MS358.PB801_A20_1366x768_4G_Pakistan_Ref44 (801)
I think it should be TP.MS358.PB802_A20_1366x768_4G_Pakistan_Ref44 (802)
Thanks.
Need android 8 with 1 gb ram and 8gb internal memory firmware.
sir file not found kindly re upload the files please.
ok dear i replace the links
Sir you hav’nt replaced them yet? thats not downloading
replaced and working now
Sir all the link are working of this tp-ms358-pb802 except part 3. the part-3 is not downloading it goes to the page “http://s9.up4ever.download/” and of this download does not start. Kindly Guide.
link replaced
Sir can you please upload the software of TP.ATM30.PB818. Please leave a message on 0303-5703949 so i can reach to it quickly. Urgent required.
all links are working fine. you can download
Sir thanku for replying .. but TP.ATM30.PB818 is not available on your site. Please upload that.
Not available this time
bahi please send me lvds pinout detail of ms358.pb802 please describe the board pins with signal
all china boards have same LVDS pin data
Salam sir ,
I need to ms358 pb 802 1GB ram 8 GB rom please upload
me tp also
Sir How would I know the correct resolution? Service menu shows the panel 1366×768 , when. I connect any device via hdmi it shows 1900×1080. Please tell me which is right?
panel resolution
sir i need 1920-1080 resolution tp.ms358.pb802
Link part 6 not working pls fix
you can download from link 2
Hii
Sir my Bd no is tp_ms358_pb802 when i search it comes with 10 results so do i have to download ten of them or just one and another thing is the my upgrade name is msd358_4g_512m_as_ref85.bin but in the result of my search it comes with ref44.bin so does this have a problem please help sir.
Thank you
this firmware is not for update purpose. if tv stuck on logo or any software problem the you can load it.
all parts you should download and extract any one of them. rename ref as you required or rename to sos
Sir
I need tp ms358 pb802 card for 50 inch lcd ram 1gb rom 8 gb
Kindy price mention
And suitable for this lcd
Regard
check your nearest wholesale market or contact with 03467115851
I need help I have a TP.MS358 PB802 board I have used the firmware but when I finish and turn off this only I have an illuminated screen without showing anything, can you help me
maybe resolution issue. first, check your panel resolution then try with the correct firmware
Salam & Allah Blesses on You…
Sir plz upload MS358.PB802 8G&1G Firmware in SamsungIR
As soon as possible
w.salam dear, not available in 8g
sir i cannot download software for tp-ms358-pb802.When i click downlaod it takes me to some chrome Ads pages.|Kindly i need your help
close the ads and stay on original page. watch video on the homepage of the website
kazim bhai please send me link to download Tp.ms358.pb802 software
thank u
why my tv doesnt boot when i plugged in usb.
change the usb disk
Sr I need a new software or firmware for the model
Tp.sk508s.pb802 please.
Thanks for the good job.
not available this time
sir mere pas tp.ms358.pb802 bord vali led h isme android 8 h 9 software kase download kare sir
update nai kar sakte
sir tp.ms358.pb802 ka 1gb aur 8gb file chahiye mil jayegi..
not available
KAZMIELE TP.MS358. HAS A BROKEN LINK CAN YOU RE UPLOAD PLEASE
all links are working
TP.MS358.PB801
NO GOOD LINK FOR ALL THE FILES
PLEASE REUPLOAD
mention the serial number and part number
ASLAM-O- ALIKUM
KAZMEI BHAI YE SOFTWARE KIA HE SAB OK HE MAGAR YOUTUBE AB CHALNA BAND HO GAI HE PICHLE VERSION MEN CHAL RAHI THI YE PICHLA VERSION PATA NAHI KON SA THA AB YE KIA HE TO YOUTUBE NAHI CHALTI KIA WAJA HE PLEASE BATAEN KIA KARNA HO GA?
software change karna hoga aur koi hal nai
Bhai kon sa karun ab men to tp.ms358.pb801 ka karne ki koshish ki magar nahi hota red light blink karti he magar software nahi hota. P83 ka bhi karne ki koshish ki magar is men nahi hota please help is men aur kon sa ho ga.
Asalam o Alaikum
I have JVC smart tv 45N5105 and main board is MS358 PB801 which is not available here in South Africa i found MS358 PB802 main baord, will it work with my TV ????? I tried to update software but does not boot from USB i tried different ports and USB drives but no avail. any suggestions ????
JZK
Sir mjhy tp.m358.pb802 board ka smart led software 32″ Samsung logo main need hy plz guide krden
Respected Sir,
Need Firmware and Flash file for : tp ms358 pb803
Thanks
Aamir Khan
not available for PB803. I think PB802 is same
Hello sir is there 4g 1080 resolution available for tp ms358 pb802?
Bhai salam alaikum TP.MS358.PB802 software downoad hogaya hai .
magar woh unzip nahin ho raha hai.
please advise kairen.
try with 7zip
THNK YOU
aoa sir i could not download program , error file not found
mention part number and serial number
Sir,
details from service menu
Board – BD_TP_MS358_PB802
upgrade name – msd358_4G_512M_AS_ref80.bin
Flash – 4G
Memory – 512M
sony – wisdom share
youtube and hotstar not working
Any upgrade to firmware or software please sir?
Please guide.
Thank you.
can not update. developer can do this. but better to change the board
Hello Sir,
I need TP SK518D PB802 software bcs getting aging view and tv does not have power button. Please sir provide me the solution.
Thanks and your well wishers
open back cover connect external keypad and do the needful
THANKS MASTER F
THANKS MASTER FOR FIRMWARE..YOU ARE GREAT
i have board TP.MS358.PB802 I TRY TO INSTALL FIRMWARE THEN POWER OF.. WHEN I POWER ON NOTHING SHOWING ON THE SCREEN.. TOTALLY NO DISPLAY.. CAN YOU HELP ME????
if the board is powered on then check the panel resolution and reload firmware acordingly
The link is not working please help unable to download 1920×1080
mention part number
AOA
I am trying to download the software but not allowed by site and every times gives errors. can you plz upload them on google drive as a single file for download.
Tp.Ms358.TP. PB 802 1920×1080
Please upload
OK I ADD LINK2
4Gb, 512 memory
512M, 4G, non samsung remote- looks like samsung but chinese
AOA
please upload on other site as file-upload site is not allowing downloads by showing multiple ads. Please upload on google drive as a single file. Rest parts downloaded but these parts not allowed which are uploaded on file-upload
Thanks for great service and help
w.salam
dear ads ko cancle karte jaen
MSD358-809 software ?
NA
hello sir
i am not able to download any software all the time it is showing (coudnt generate download link )
please do something for this error
thanks
link2 added
Respected sir
I have TP_MS358_PB802 40″ tv resolution 1080*1920, 4gb rom n 512 mb ram
Android version 4.4.4 YouTube not working.
Can i upgrade android version 5.0 or 6.0 uper android version, is it possible to upgrade android version.??
can not update
remote
tp.ms358.p802 femwer
sir ms358.pb803 kaa software chahiye urgently
sir aapko mila kya software ??
sir plese upload ms358 pb802 1gb 8gb ref75.bin …data ..thanks
rename ref to sos
sir mera tv dead ho gya in software se…black screen ho rhi hai bus or remote nhi chal rha hai..bus stand by par rahta hai. flash karne se pahle hardware me msd358_8G_1G_AS_ref75.bin ye dikha rha tha….
please upload file ….1366×768 hd rady hai 40inch ka tv hai…
sir ji mene TP.MS358.PB802 1920×1080 1G 8G Amman wala software use kiya tha isee dead hua h
apka panel to 1366 hy phir 1920 kion kar lia apne. ap jtag hoga programmer se
Sir,
BOARD BD_TP_MS358_PB802
RESOLUTION 1366X768
SW UPGRADE msd358_4G_512M_AS_ref38.bin
any update of this version its urgent
No
TP.MS358.PB802_1366X768_1G_8G_REF35_INDIA.part1.rar
This file not getting downloaded please any one mail it to mku.ahad@gmail.com
Link working
Sir i need TP.MS358.PB803 full hd software _/\_
Hi!
I installed one of the firmware, it installed correctly but it won’t let me use the remote control.
I have a Milexus TP.MS358.PB802 tv had the FIRMWARE good if you have it pass it on ..
What control uses the TP.MS358.PB802_1366x738_1G_8G_REF41
Not available
Thank you for the softwares Kazmi!
I have a Videocon smart TV board TP.MS358.PB802
I successfully downloaded “TP.MS358.PB801_A20_1366x768_4G_Pakistan_Ref44” and installed/upgraded the software on my TV but then the remote control does not work anymore and I cannot proceed with the initial setup due to this remote no tworking. Furthermore the screen display is rotated 180 degrees (flipped).
I tried downloaded TP.MS358.PB802_1920x1080_1G_8G_Amman and TP.MS358.PB802_1366X738_1G_8G_REF41 separately and tried each to connect to the TV but neither set initializing nor installing.
Now I am stuck and I cannot proceed to repair my TV.
Thanks if any other solution steps to proceed further.
use universal remote control then later find original software for videocon
Thank you so much, it works. However, the screen display is not clear due to TP.MS358.PB801 is installed. Any advice to re-install TP.MS358.PB802 since the above software I downloaded does not boot?
Also, kindly advice further how to reposition the rotated screen display?
I appreciate you professional advice.
goto service menu then panel setting then mirror setting
pls i dont know how to download the exact file of my tv.
what is the issue with tv?
Salam
Sir,
This Software is excecute mkv format in TP.MS358.PB802 Board.
Please reply me soon as possible.
Regard
M. NAEEM KHAN
not sure
Hello Sir,
BOARD TP_MS_358_PB802
RESOLUTION 1366×768
SW UPGRADE msd358_1G_AS_ref44.bin
is there any update of this version urgent…
No
Does the smart side of the tv board support bluetooth cabability
No
Think you
Thanks
tp ms358 pb802 512m pakistan 1920 1080 chahye ye 1366 768 nhi plzplz plz upload
Tp.ms358 pb802
