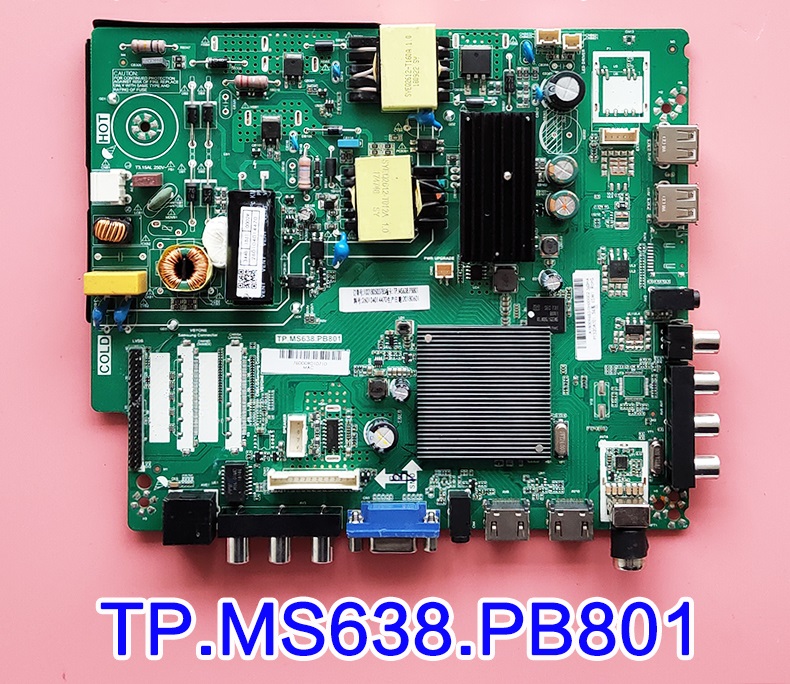

TP.MS638.PB801 4K Smart LED TV Board
TP.MS638.PB801 is a universal and Intelligent 4K smart network drive board with a resolution of 3840×2160. It is dedicated to 60 and 120 Hz screens. TP-MS638-PB801 has a powerful wifi system. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. TP_MS638_PB801 is a 4K original CA53*2Core@1.2GHz Android smart Mainboard.
TP MS638 PB801 has multiple Input interface ports like Dual USB, HDMI, AV, Earphone out, PC VGA interface, and wifi built in with an RJ45 Ethernet port for wired internet connection and smooth connectivity. TP.MS638.PB801 firmware file is given below for the technician’s support.
General Specifications:
Brand/Mark: Universal LCD Network board
Main Board: TP.MS638.PB801
Main Chipset: MSD6A638
PANEL Type: TFT LCD
Panel Size: 42″-65″
Interface: Single/Dual LVDS,V-by-one(4K2K)
Max Resolution: 3840*2160
Panel Power: 12V
Function: ATV(PAL/NTSC/SECAM)/DTV(DTMB)
Aspect Ratio: 16:09
Audio Output Power: 2x10W(8Ω)
OS: Android 4.4
CPU: CA53*2-Core
CPU Frequency: 1.2 GHz
GPU: Mali T720 MP2*2-Core
GPU Frequency: 450 MHz
Ram: 1Gb
Rom: 8Gb eMMC
Backlight: 108W 450mA
Power Input: 100-280V AC
Service Code: Menu+1147
Firmware Name: allupgrade_msd638_8G_1G_ref35.bin
Firmware Type: USB Upgradeable
Product: Mitashi
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.MS638.PB801 firmware for free download:
S.NO. | BRAND/MODEL | DOWNLOAD LINK |
---|---|---|
1 | TP.MS638.PB801-3840x2160-1G-8G-Mitashi.part1 | Download |
TP.MS638.PB801-3840x2160-1G-8G-Mitashi.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
I have koryo wisdom china cloud tv. I can’t using apps on my tv. I am trying to download but unable to open link.
TP.MS638.PB801A
reset to factory default and try again. no need to load software
Is it neccessory to download all parts of TP.MS638.PB801
Yes
I downloaded the firmware and i plug it into the tv board, the tv boot and began to install the firmware and then show that there is a software error, and when i tried to firmware the tv again it stuck on tv led blinking and no ot showing the screen.
there is some issue with the ram/rom or usb disk. jtag with programmer
thanx ffor replay sir, the screen fine everything working perfctlly, but i want youtube to work on it.. i tried serval USB flash drive fat32, my panal i name from the factory menu ( BD_TP_MS638_PB801A ) , and the SW upgread name (allupgrade_msd638_4G_1G_ref56.bin) , sir this typ off panal just i hve to do is : plug the USB Flash and plug the panal to the power shoud get into softe mode?? or i have to press some click?? cuz i used your frimewear and didint get into soft mood at all , than again for your time, i hop you can help me as soon as posible please
best regaards
no need to update. just install smart youtube app
