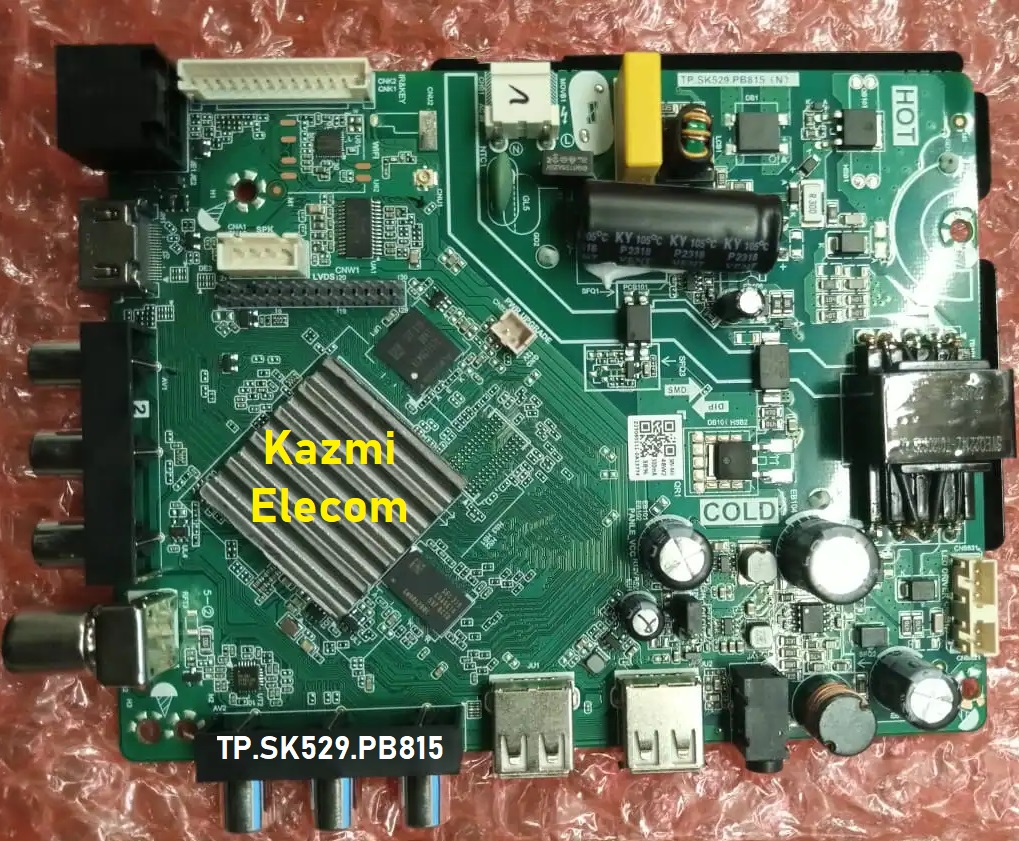

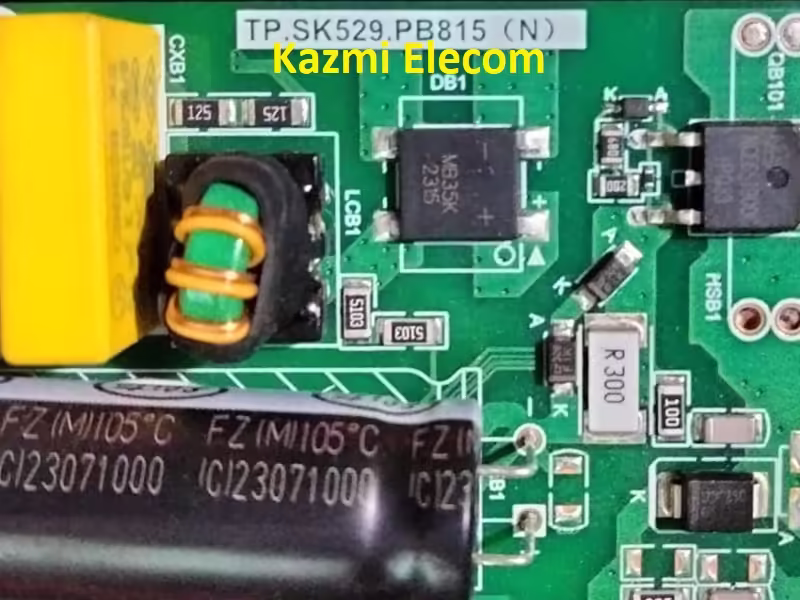

TP.SK529.PB815 Smart Android Board
TP.SK529.PB815 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. TP_SK529_PB815 has a powerful wifi system. Smart FHD TV With the latest Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. TP SK529 PB815 Smart Board has multiple ports A/V, USB interface Ports, and a single HDMI port, as well as the VGA interface for computers. TP-SK529-PB815 has a LAN/RJ45 Connector interface port for the wired internet network.
TP.SK529.PB815 is a Combo Network Triple play board that has the Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of this android board are very good and the Response rate is very efficient. TP.SK529.PB815 China smart network board is the best fit for 32″ to 42″ LED Panels. TP.SK529.The PB815 firmware file is available for technician support. If you are facing any issues during firmware installation then visit and read here first.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.SK529.PB815
Main Chipset: HV352
Operating System: Android 12
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Mali 450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512MB
ROM: 4 Gb
Resolution: up to 1920×1080
Backlight: 35V-52V 25W480mA
Screen Size supported: 32 to 42 Inch
Audio Output power: 2x8W
Mirror Mode: Yes
Logo Change: Yes
Bluetooth: Yes
Tuner: SI2159
Input Voltage: 200-240V AC
Firmware Name:allupgrade_V3520N0E_4G_512M_60.bin
Firmware Type: USB Updateable Firmware
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.SK529.PB815 Software file for free download:
tp.sk529.pb815 us ka download lik kaam ni kar raha
links working
BAHI ISKa FHD wala chahye
NA
Aoa bhai N. H352. 818 ka software mil jy ga
No
Tp.sk529.pb815 software.painl tpm215hwq1
Ye card samsung k tv ma installed karna ha wo had panel ha kia karna ha
laga len. 1366×768 resolution hoti hy HD panel ki
Ya card for e194548 ma ya card tp.sk529.pb815 fit Karna ha
After installing the software how to install in LCD
https://www.kazmielecom.tech/how-to-load-firmware/
is ma 1920 ni ha mil rha wo kaha ha
NA
Anonymous Proxy detected.
Plz sir solution.
disconnect VPN
Sir tp sk529 PB 815 link not working
working
I need lvds pin out sk529
same pinouts for universal boards
Tp.sk529.pb815n ka resolution software update NAHI ho raha
https://www.kazmielecom.tech/how-to-load-firmware/
Here is two part of firmwares, both file i downloaded, also Both file installed completely without displayed i ensure to pendrive light bilink and power light bilink after done it power link flashing very fast but my TV remort not working also showing colour burning.
My TV Is 24″ now what i do to solve this issue
Link not working kazmi shb please help.tp.sk529.pb815 n board logo hang problem…
links working
Assalamualaikum kazmi bhai meny apko Facebook pr bhi msg kiya ha Mujhe ya software chiye mujhe se download nhi ho ra
w.salam dear ad blocker laga kar download kar len
tp.sk529.pb815 link not working…
working
