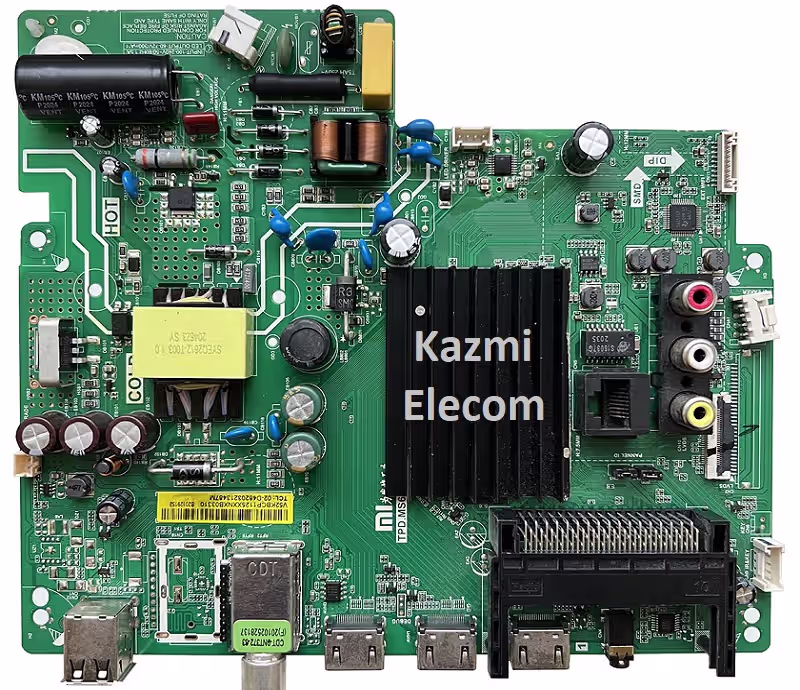

TPD.MS6683.PB791 Smart Android Board
TPD.MS6683.PB791 is a smart Android LED TV board. Its maximum supported screen resolution is 1920×1080 Full HD 1080P. It has several input-output user connectivity interfaces, such as a headphone output jack of 3.5mm to amplify the audio output. For connecting Analog devices, it has an RCA (Component) input interface. For connecting digital Full HD devices, it has three HDMI ports by which users can connect several full HD devices such as Blu-ray players, Playstations, Gaming consoles, Media Players, etc. It has a dual USB input interface for connecting hard disk drives and other USB devices, and for upgrading software purposes.
TPD.MS6683.PB791 is a three-in-one Android smart LED TV motherboard. It is also called a Combo network LCD LED TV driver board. It is built with three major parts on a single PCB: the cable TV tuner, the LED backlight inverter driver controller circuit module, and the main power input supply module. This board has a 48-pin LVDS connector interface for LCD LED TV Screen Panels. It has 4 GB of storage memory capacity. The main processor is a quad-core made by Mstar. The graphics and sound quality of this board are excellent.
General Specifications:
Board Model: TPD.MS6683.PB791
Main Chipset: MSD6683BQHA-8-00H4
CPU: ARM Cortex-A53
GPU: Mali-T720 MP2
Android Version: 7.1
Resolution: FHD
Audio Power: 2x8W (16 watts 8 ohm)
Backlight Current: NA
Backlight Power: NA
USB Ports: 2
HDMI Ports: 3
CI: Yes
Component: Yes
RJ45: Yes
Tuner: CDT-9NT372-63
Analog Tuner: PAL/SECAM/NTSC (AV) BG/DK/I/LL
Digital Tuner: DVB-T2/C/S2
Wifi: Yes
Mira-Cast: Yes
Memory (RAM): 1 GB DRAM
Storage (ROM): 8 GB EMMC Flash

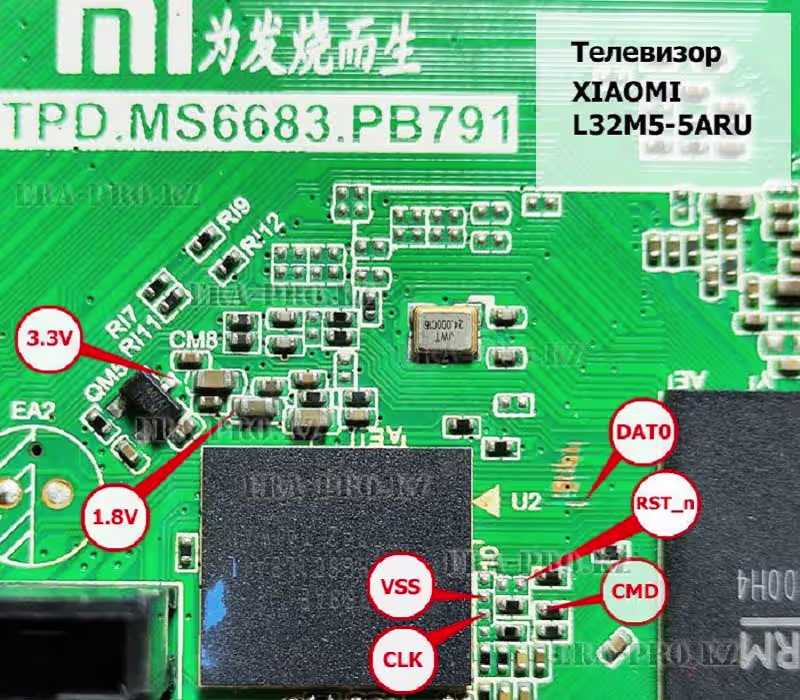

EMMC: THGBMHG6C1LBAIL
Power Rating: 220V~240V 50Hz
Power Consumption: 75 watts
Firmware Type: USB Bootable
Firmware Name: MiTVUpgrade_6683.bin
Product User: MI
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage or loss resulting from uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
TPD.MS6683.PB791 Firmware files for free download:
