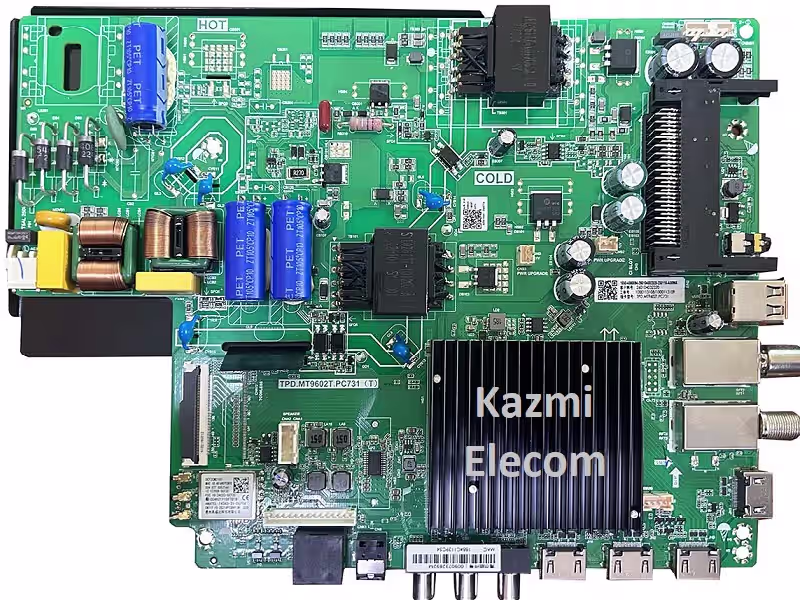

TPD.MT9602T.PC731 UHD Smart Board
TPD.MT9602T.PC731 is an analog and digital 4K UHD smart Android board with a resolution of 3840×2160, a supported smart Android board with the latest Android version of 11.0. TPD MT9602T PC731 is a universal module without a backlight driver circuit and a power supply module. TPD-MT9602T-PC731 can support many panel screens from 15.6 inches to 55 inches with the best picture quality.
The TPD.MT9602T.PC731 features multiple connectivity ports, including AV, three HDMI ports, USB, and a Digital Tuner input (DVB-T/T2, C, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and built-in Apps. TPD-MT9602T-PC731 firmware files are given below for the technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Driver Board
Model: TPD.MT9602T.PC731
Main Chip: MT9612IAATDC
Supported Resolution: 3480×2160
Screen Format: 16:9
Chipset: MT9632
Platform: M7332
Operating System: Android 11.0
CPU: Cortex A53*4 64-bit
GPU: G52(2EE)MC1
RAM: 1/2Gb
ROM: 8/16Gb
HDMI: 04
USB: 02
Sound Output: 10Wx2
Transmission: DVB-C/DVB-T/T2/S2
Video System: PAL/SECAM
Backlight Voltage: NA
Backlight Current: NA
Backlight Power: NA
Firmware Name: upgrade_image_no_tvcertificate.pkg
Firmware Type: EMMC Backup Dump

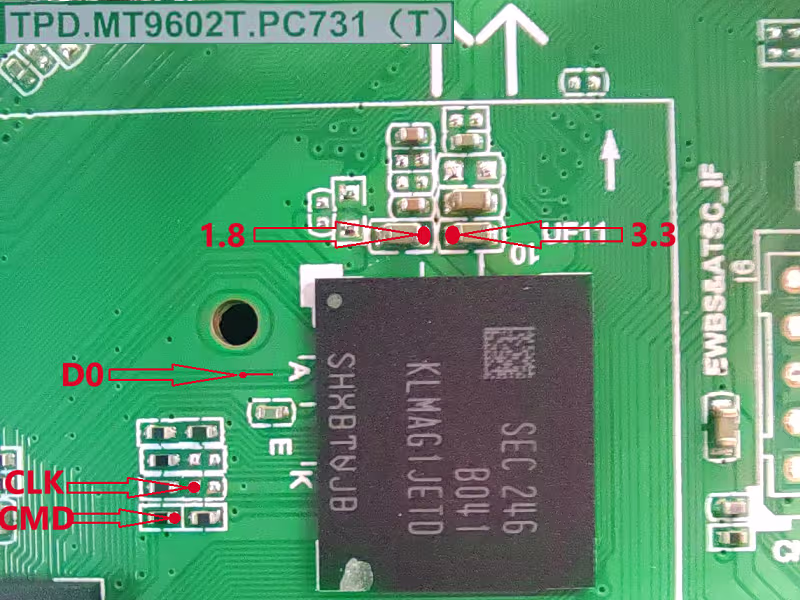

EMMC: KLMAG1JETD-B041
Product: Haier
Note: The following firmware is an EMMC backup dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
TPD.MT9602T.PC731 Firmware files for free download:
