TPD.T950X.PB791 Smart LED TV Board
TPD.T950X.PB791 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. TPD-T950X-PB791 is dedicated to 60 Hz screens. It is a combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports like triple HDMI, Mini AV, Coaxial, headphones, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. TPD.T950X.PB791 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special connectivity feature of Bluetooth 4.1. This board has an inbuilt WiFi module and LAN interface. The TPD-T950X-PB791 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: TPD.T950X.PB791
Chipset: T950
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 8.1
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC
Backlight: 60-72V 300mA,
USB Input: 02
HDMI Input: 03
Scart: No
VGA: Yes
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 4.1
AV Input: Yes (Mini)
Sound Output: 20W DTS-HD
RF TUNER: NTSC/PAL
Video System: PAL/SECAM/NTSC

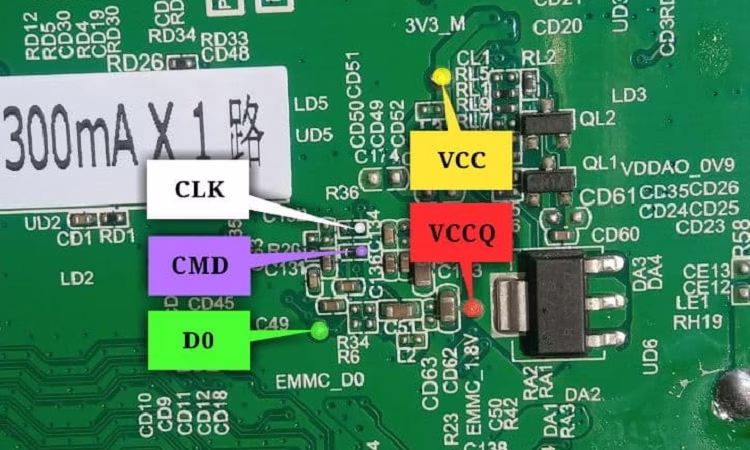

Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
