VS.SP35851 Firmware

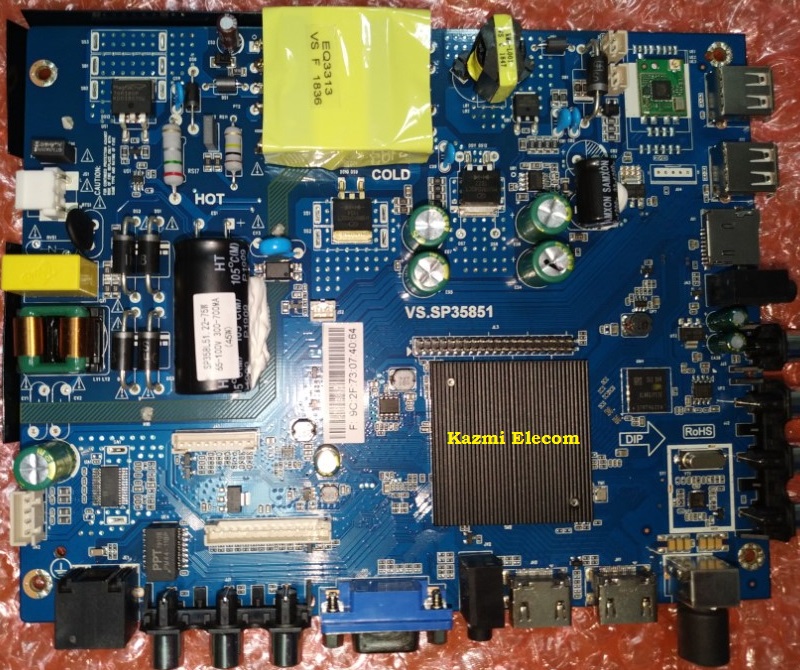

VS.SP35851 is an intelligent Network Smart TV Driver Board specially designed as a Universal LCD LED Controller Board For Android WI-FI ATV functions. This is suitable for all HD LCD/LED panels. This Intelligent Network TV board has a special feature of Android and ROM storage capacity. VS-SP35851 Supports RJ45 network signal, USB 2.0, HDMI 1.4 and TV.VGA, AV input, and earphone output.
VS_SP35851 Built full-featured browser and support for HTML5 web page format, providing the fun of browsing the web and watching a video at random. It also supports surfing the internet with a wireless mouse and keyboard. VS.SP35851 is a three-in-one driver motherboard which is also called the combo board.
General Specifications:
Brand/Mark: Video Space
Main Board Model: VS.SP35851
OSD Language: Chinese, English, Espoal, French, Vietnamese
TV Signal: ATV
Input Interface: PC / VGA / HDMI / TV / Network / USB / TF / Dual AV
Panel Voltage: 5V/12V
Screen Supported: 32-65 inch
Resolution Supported: 1920×1080
OS: Android 6.0
CPU: 1.5GHz (ARM Cortex A7 double Core CPU)
GPU: Multi-core Mali -400MP2
Backlight: 65-100v 45W-65W
Ram: 1Gb
Rom: 8 Gb eMMC
Flip/Mirror Mode: Yes
Display/Boot Logo: Yes
Power Input: 220v AC
Power Rating: 12V/4Amp DC
Service Code:
Input/Source 208
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Load Software:
- Transfer the required resolution file to the USB Disk
- Plugin the USB Disk into the Main Board
- Power on the board
- Wait until the red light starts flashing
- Note: Do Not Cut the power during the Flash burning process
VS.SP35851 firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | VS.SP35851_1366x768_1G_8G_SamsungIR.part01 | Download |
VS.SP35851_1366x768_1G_8G_SamsungIR.part02 | Download | |
2 | VS.SP35851_1366x768_MEPL_India.part1 | Download |
VS.SP35851_1366x768_MEPL_India.part2 | Download | |
VS.SP35851_1366x768_MEPL_India.part3 | Download | |
VS.SP35851_1366x768_MEPL_India.part4 | Download | |
VS.SP35851_1366x768_MEPL_India.part5 | Download | |
3 | VS.SP35851_1920x1080_MEPL_India.part1 | Download |
VS.SP35851_1920x1080_MEPL_India.part2 | Download | |
VS.SP35851_1920x1080_MEPL_India.part3 | Download | |
VS.SP35851_1920x1080_MEPL_India.part4 | Download | |
VS.SP35851_1920x1080_MEPL_India.part5 | Download | |
4 | VS.SP35851_1366x768_1G_8G_Logo_Welcome.part01 | Download |
VS.SP35851_1366x768_1G_8G_Logo_Welcome.part02 | Download | |
5 | VS.SP35851_1366x768_512M_4G_India.part1 | Download |
VS.SP35851_1366x768_512M_4G_India.part2 | Download | |
VS.SP35851_1366x768_512M_4G_India.part3 | Download | |
VS.SP35851_1366x768_512M_4G_India.part4 | Download | |
VS.SP35851_1366x768_512M_4G_India.part5 | Download | |
6 | VS.SP35851_1366x768_Raltronic_SamsungIR.part01 | Download |
VS.SP35851_1366x768_Raltronic_SamsungIR.part02 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
VS. SP35851 RAM512 4GB
FIRM
WARE SIR PLEASE
MOHD KHADEER
mkkhadeerlover@gmail.com
Mahendra Singh 90278922 @email led TV sp 35851 chaina 35851 smart software
sir how to load VS.SP35851 BOARD LOGO HOW TO LOAD
VS.SP35851_1920*1080_MEPL_ india>part1,2,3,4,5
konsi company katv h
Use input 208 logo export from general design menu then import / flash. USE MSTAR PACK UNPACK
sir plz upload vs.sp35821.2 firmware
SIR 35851 1GB AND 8GB FULL HD FILE PLZ
Sir 35862
SIR VS.SP35851 4GB/512 EMMC FILE REQ
hii sir
vs.sp35851 1gb 8gb
1920×1080 soft. uplod karo plz
muje vs.sp35851 ka software bheje
sir vs.sp35851 1920 1080
hi sir
aapako ye software mila kya
Mahesh
Vs.sp35851 RAM512 4GB
1366X768 NONE DH
Sir please
VS.SP35851 RAM 512 4GB
1366X768 NONE HD
Vs sp 35851 mother bord chahiye
apni local market check karen
After downloading all Parts we need to copy all files separately to USB or something I missed ?
extract any one of then you will get the folder then copy all files in folder to usb disk
Vs sp35851 is bord ka logo change kaise karna hogo
mene kabhi try nai kia is board pe
Hi, Do you have MBoot.Bin file of this board ?
vs.sp35821.2 software plz
sir maine softwer uplode kiya leking screen nahi aa raha hai balnck ho gaya
agar tv on ho raha hy to phir resolution ka fault hoga
Hello sir vs.sp35851 512 ram 4gb 6.0 1366 720 software usb
VS.SP35851 BOARD SOFTWARE NOT WORKING PROPERLY
kindly request u please send or upload 1920×1080 full HD software for vs.sp35821.2 led mother board
sir ji vs.sp35851 512 mb& 4gb
VS.SP35821.2-1366X768 BIN FILE
sorry dear is waqt nai hy
Vs. Sp35851 firmware need
vs.sp35821.2
vs.sp 35851 sumsung non hd file
Hello sir, mene ye vs.sp35851 software upgrade kiya sab Thik se ho gaya service mode se picture flip bhi ho gayi but abhi backlight control option work nahi kar raha hai service mode me kis option se problem sahi hogi
maybe is board me backlight control ki option na ho
Hi sir – Kya Vs_ SP35821L board m SP358251 wala firmware kam kar sakta h .Agr nhi karega to pls upload SP35821L / 512 RAM wla upload kr dijiye
not confirm
Hi Sir,
Need VS_S358AT.bin in this software. VS_S538XX.bin not working on my board.
Pls Share the same
Not available
hello sir please upload this card no.- VS.SP35821.2 Software sir
dear iska software nai hy mere pas
Karthikeyan vs.sp35851 software please
vs.sp35851 software chahiye.mil nahi raha.please help.
mob-9896570818
share to kia hua hy download kar len
Hello Sir,
I need the software for VS.SP35822.2
Can you please provide it?
Thank you
Dinesh Kumar Aggarwal
ph : 9211439211
9210042068
not available for this board
Vs.sp35851 software please sir
Panel 39
vs.sp35851 1920×1080
mere board VS.MSD6A358.SP358T21.45W HAI..
pls batayein es board k compatble software konsa h aur kya wo apki site par available h. agar hai to pls link share kar dijiye..
not available
Sir, please can you upload firmware for VS.S358A3.2
not available
need software vs sp35822.2
358PB818 KA SOFTWARE TO UPLOAD KREIN PLEASE
Sr MERI led on of ho rage hai plz help
maybe power module fault
Sir i have VS.SP35851 Full HD 1980×1080 (43 Inch TV) but software not getting update we have tried serval time, please give its solutions
update not available for Chinese boards
adsun smarttv software vs.sp35851 chaiya
I want VS.SP3581 BOARD NEW software. My tm not working for YouTube. I tried all with factory reset. Didn’t have any other app installed.
maine 512_4G waali software update ki hai but remote nai chalra, Samsung IR waala config b add karne ki koshish ki but nahi lera wo, kya aap bata sakte img me kaisa change karna remote
youtube se idea le len
Does it support HDMI arc? I have 1gb 8gb model
Not sure
hello sir mera HOM LED SMART TV H
uska board h VS.SP35851
but sir me konsa part download kru pta nhi chl rha h
please help me
mere led me ye problem h ki uski key locked ho gyi h
Good afternoon sir Mera tv Neo Aiwo VS .SP 35851 tv Android is upgrading…. Optimizing app1of1
Dikaraha he kya karu sir
factory reset kar len
Neo Aiwo VS.SP 35851
Android upgrading TV par dikaraha he magar factory reset option nahi settings bhi nahi dikha raha he logo ane ke bad band hota ja rahe
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Otherwise, load firmware
Bhai sp35851 512 4g india ka jo firmware hai uspe konsi company ka remote set hota hai
not sure but mostly samsung he hota hy
Assalamualaikum Bhai can you please provide SP35871.2 board latest software
SIR SONY BRAVA LED
VS.SP35851 BORD KA SOWFTWAR
sony me nai hy
Hello Sir I Need Version 9 For VS.SP35851 1gb 4gb
NA
Sir sp35221.5 1gb 8gb ka firmware chahye hai, isko kindly arrange krdain ye boards market mn bht aye hue hain, Thanks in advance.
sir,
Kindly send software/firmware for klm8g1geme-b041, vs.sp35851. my 32 inch LED tv is foxsky
i would be very thankful to you
Foxsky not available
sir i want to software card no. sp35211.5
1366*768
NA
