VS.TP56L62.2

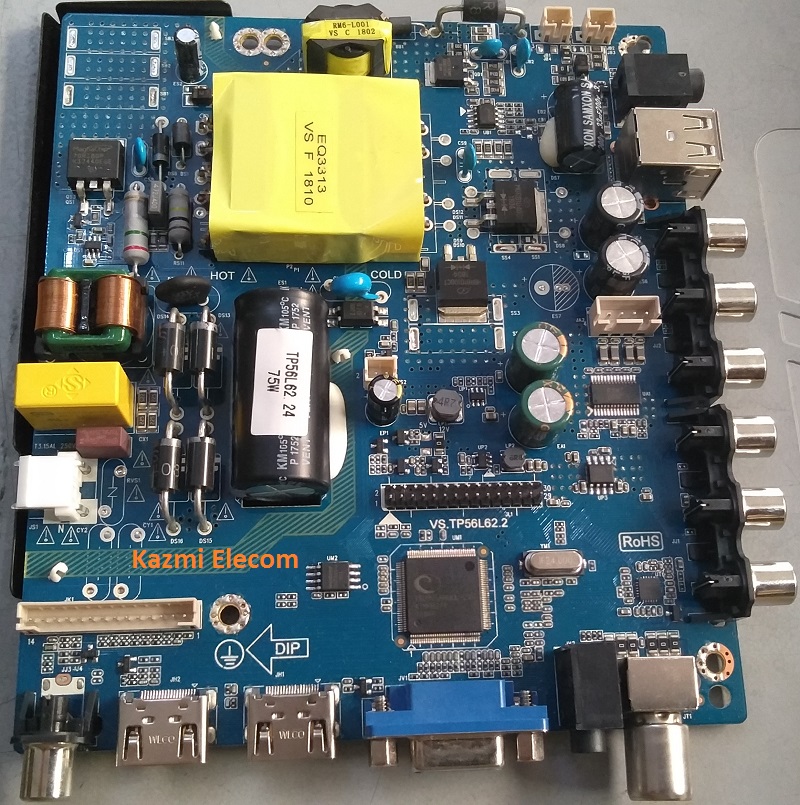

VS.TP56L62.2 is a combo LCD/LED driver controller board suitable for 32 to 55-inch TVs. This new Board is best according to its features like backlight adjustment, Mirroring option, and Logo capture. VS-TP56L62.2 is best suitable for the Asia Pacific and the Middle East as well. It has a 30-pin LVDS connector that is suitable for universal LCD LED TV screen panels. This is a three-in-one combo non-smart motherboard with 75-watt backlight power.
It has multiple connectivity input interfaces like Dual HDMI Input, Dual USB input, Dual RCA Input, RF tuner, VGA port for laptop and computer, and Coaxial connection. The main processor is TSUMV56 by which picture quality is good.
General Specifications:
Model Number: VS.TP56L62.2

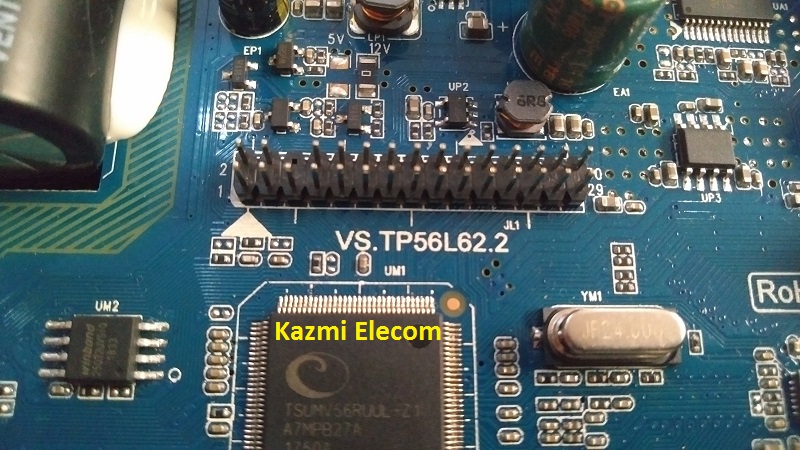

Main Chip: TSUMV56RUUL-Z1
Screen Supported: 32 to 55-inch
Resolution: 1920×1080
Backlight: 520mA (75W)
Mirror Option: Yes
Backlight Adjustment: Yes
Panel Voltage: 12V
Capture Logo: Yes
Service Menu:
Menu + 1147
Note: The following firmware collection is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here
VS.TP56L62.2 firmware for all resolution free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | VS.TP56L62.2_1366x768_LG_USB | Download |
| 2 | VS.TP56L62.24_1366x768_Sony_USB | Download |
| 3 | VS.TP56L62.2_1366x768_Samsung_USB | Download |
| 4 | VS.TP56L62.2_1920x1080_LG_USB | Download |
| 5 | VS.TP56L62.2_1920x1080_Sony_USB | download |
| 6 | VS.TP56L62.2_1920x1080_Samsung_USB | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
