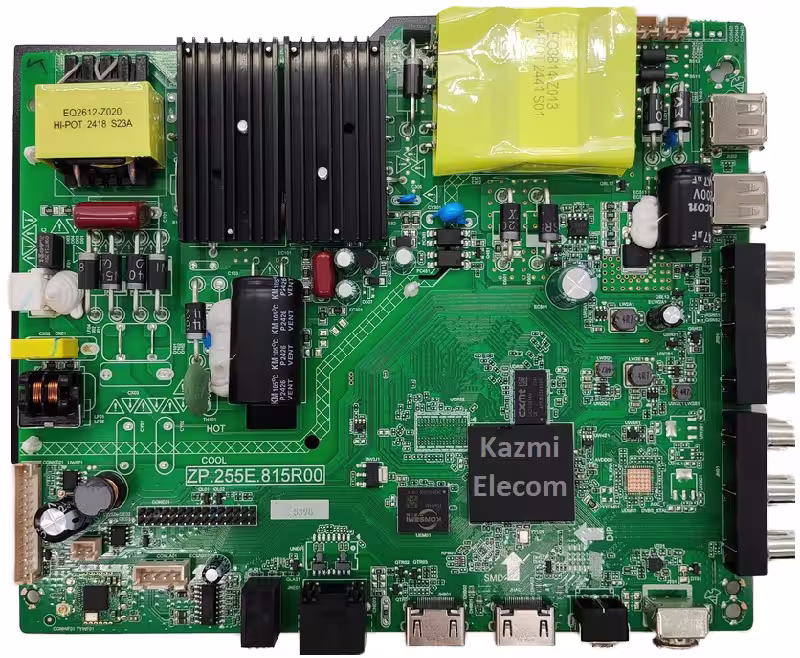

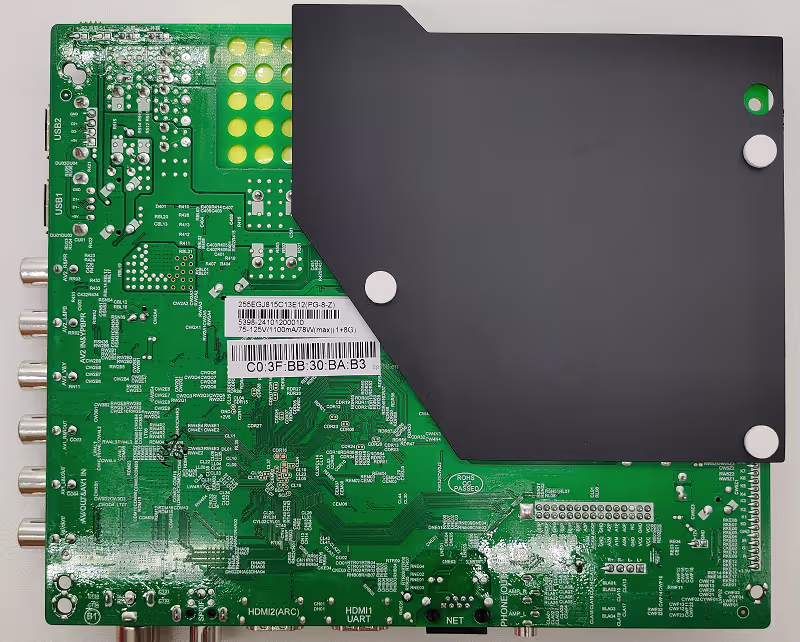

ZP.255E.815R00 Smart Android Board
ZP.255E.815R00 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. ZP-255E-815R00 has a powerful wifi system. Smart FHD TV with Android Platform and great features to entertain, Full HD Wide Screen with better-to-work SMART. ZP-255E-815R00 Smart Board features multiple A/V, USB interface Ports, and dual HDMI ports, in addition to Headphones. The VGA interface is not available on this board. ZP.255E.815R00 features a LAN/RJ45 Connector interface port for wired internet networks.
ZP.255E.815R00 is a Combo Network Triple play board that has a Digital TV tuner (Optional) built in it (digital terrestrial receiver). The Graphics and Sound quality of the ZP-255E-815R00 Android board are very good, and the Response rate is very efficient. ZP-255E-815R00 China smart network board can support up to 43-55″ LED Panels. The ZP.255E.815R00 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: LCD/LED Main Board (Android WIFI Network Drive Board)
Main Board: ZP.255E.815R00
Main Chipset: HI3751
OS: Android 14
CPU: Cortex-A53 Quad Core @ 1GHz
GPU: Mali450MP
CPU Frequency: 1GHz
GPU Frequency: 432MHz
Back Light V/C : 75-125V 78-100 Watt
Ram: 1 GB
Rom: 8 GB eMMC
Resolution: up to 1920×1080
Speakers: 2 x 8W
RF connectivity X 1
HDMI X 2
USB X 2
YPbPr X 1
HEADPHONES X 1
Scart 0
RJ45 X 1
Tuner: ATV
Firmware:
Firmware Type: USB Updatable Firmware
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
ZP.255E.815R00 firmware for free download:
- ZP-255E-815R00
