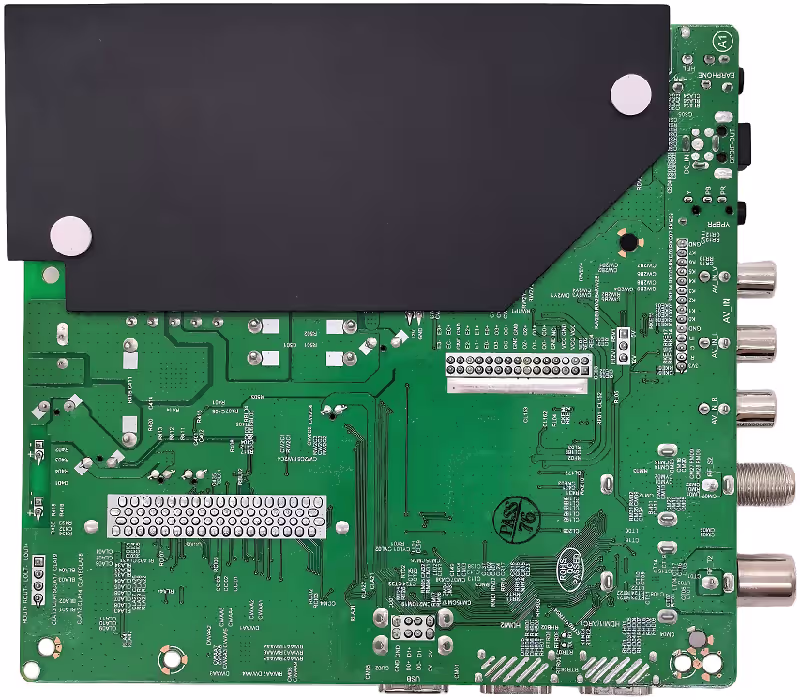

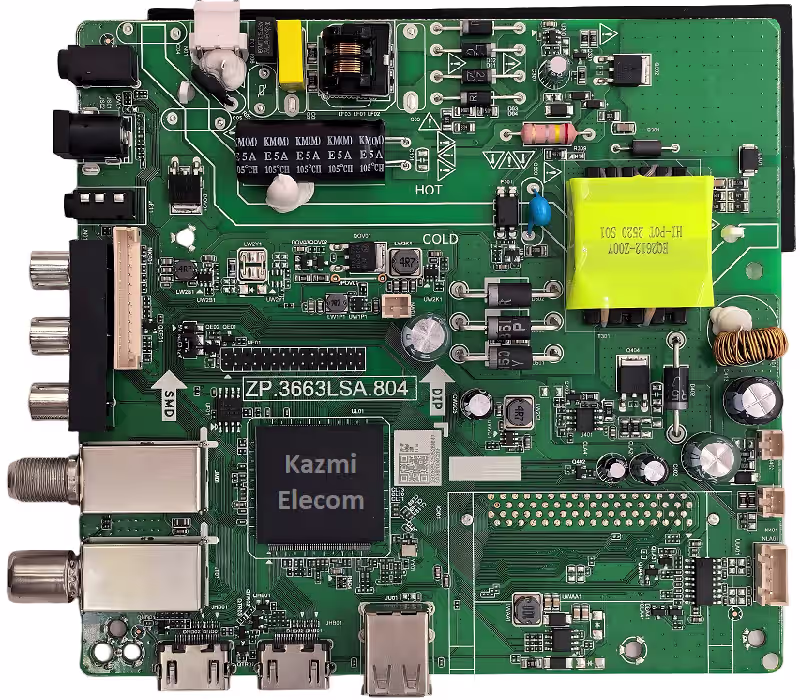

ZP.3663LSA.804 LED TV Board
ZP.3663LSA.804 is a combo HD&FHD DVB LED TV non-smart Board. It has a supported FHD resolution of 1920×1080 and a Refresh Rate is 50/60 hertz with a smooth motion rate of 200 SMR. It has multiple HDMI ports to connect a set-top box, Blu-Ray players, and gaming consoles, and also has more than one USB port to connect hard drives and other USB devices and play multimedia as well.
ZP.3663LSA.804 has a Dolby Sound system that supports 16 Watts sound output and HDR Display viewing. It can support multiple LCD/LED panels. ZP.3663LSA.804 firmware files are given below for free download to support technicians.
General Features and Specifications:
Brand/Mark: China Universal
Model: ZP.3663LSA.804
Main Chipset: MSD3663LSA
Product: LED TV
Resolution: 1920×1080
Panel: 32-42 Inch
Backlight: 35-57V 25W
HDMI Ports: 2
Component: Yes
Tuner: ATV & DTV (DVB-T2 DVB-S2 DVB-C)
USB Ports: 2
VGA Port: No
Scart: No
DTS Studio Sound™ Yes
Analog Audio Out AV Out
Digital Audio Out (SPDIF) Yes
SPI Flash: 8MB
Service Code: 1147/8899
Firmware Type: Backup Dump
Firmware Name: MSD3663
Power Input: DC 12V & AC 220V
Factory Service Mode:
Menu 1147/8899
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files, then read here first.
ZP.3663LSA.804 Firmware Free Download:
