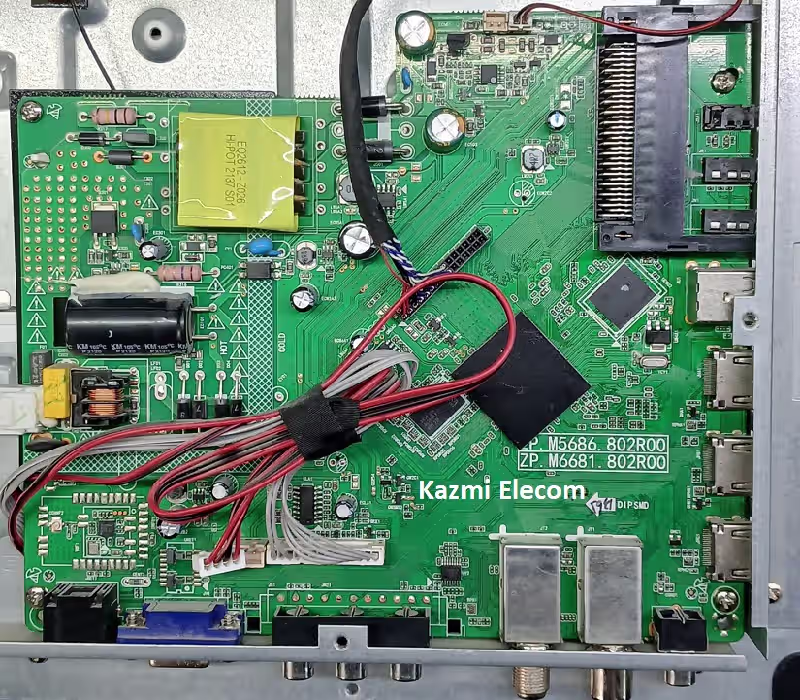

ZP.M5686.802R00 Smart Android Board
ZP.M5686.802R00 is an Intelligent, smart Android network driver LED TV motherboard with a Full High Definition 1920×1080 resolution. This board is specifically designed for 50/60 Hz screens. It is a combo board. It features full connectivity for the input interface. It features multiple input connectivity ports, including three HDMI, RCA AV, Coaxial, VGA, headphones, a USB port, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. This board features a digital and analog TV tuner integrated into the main board, allowing it to receive both analog and digital television signals. It features a special connectivity option for screen mirroring. This board has an inbuilt WiFi module and LAN interface. The ZP.M5686.802R00 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: ZP.M5686.802R00 ZP.M6681.802R00
Chipset: MSD6681
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 9.0/12
CPU: Dual Core
GPU: Mali-450
RAM: 512G/1G
ROM: 4G/8G EMMC

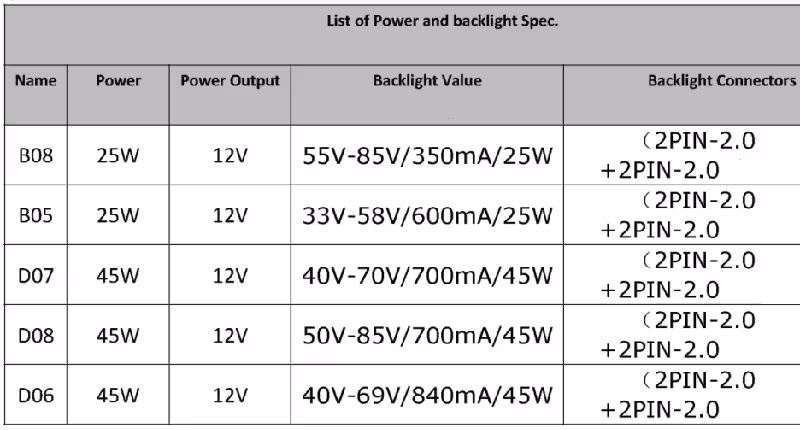

Backlight Volt: 35V-65V&50V-85V/70-105V
Backlight Current: 200-780mA
Backlight Power: 25W/35W/45W
USB Input: 02
HDMI Input: 03
Scart: Yes
VGA: Yes
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: No
AV Input: Yes
Sound Output: 16W DTS-HD
RF TUNER: ATV and DTV (DVB-C DVB-T DVB-T2 DVB-S DVB-S2)
Video System: PAL-M/PAL-N/NTSC
Firmware: Type: NA
Firmware Name: NA
Product User:
Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you’re new and lack knowledge of loading/installing software/firmware or dump files, or are experiencing issues during firmware installation, please visit and read this first.
ZP.M5686.802R00 Firmware for free download:
- ZP-M5686-802R00 ZP.M6681.802R00
