5800-A9K51G-1P20 UHD Smart Board
5800-A9K51G-1P20 is a combo LED Ultra HD (4K) Certified Android TV Board. It has a 4K Ultra HD resolution of 3840×2160 and a Refresh Rate of 60 hertz. It has 3 HDMI ports to connect a set-top box, Blu-Ray players, and gaming consoles, and 2 USB ports to connect hard drives and other USB devices and play multimedia as well. It has Dolby DTS Support, 20-watt audio output, and HDR display.
5800-A9K51G-1P20 can support Smart TV Features such as Android, Google Play Store, Google Voice Search, Remote with Voice & Air Mouse, and Front Firing Speakers, etc. 5800-A9K23G-0P10 firmware files are given below for free download.
General Features & Specifications:
Brand: China

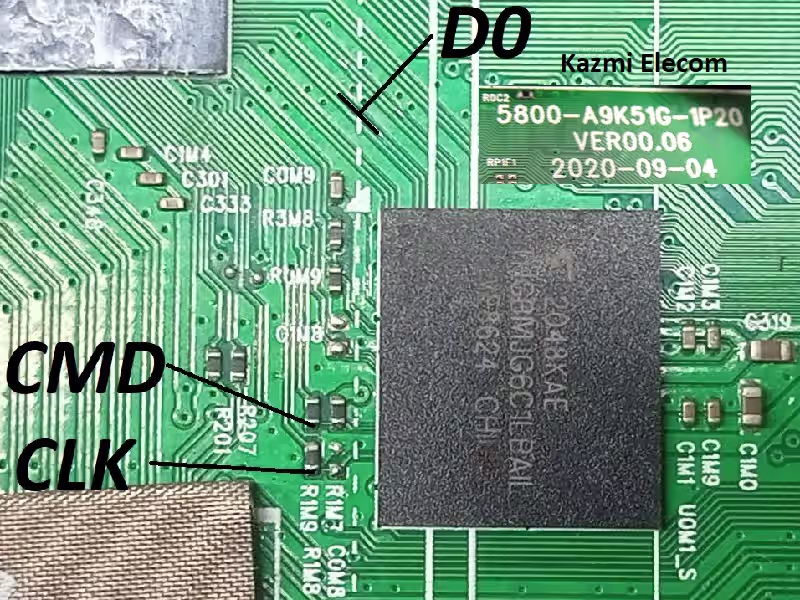

Board Model: 5800-A9K51G-1P20 VER00.06 2020-09-04
Display Format: UHD
Screen Type: LED
Features Format: Smart
OS Version: Android 10
Chipset: Mediatek
Processor: CA53
Graphic Processor: Mali-450
RAM Capacity: 1/2.25 GB
Storage Memory: 8/16 GB ROM
Screen Resolution: 4K 3840×2160 (Ultra HD)
No of HDMI Ports: 3
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output RMS: 30W (15W*2)
TV Tuner: Analog/Digital
Power Requirement: AC 110 – 240 V, 50/60 Hz
Power Consumption: 135 W
Firmware Type: USB Update
Firmware Name: MstarUpgrade_no_tvcertificatetvconfig_20201230
Product: Realme, Sansui
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
5800-A9K51G-1P20 Firmware for free download:
