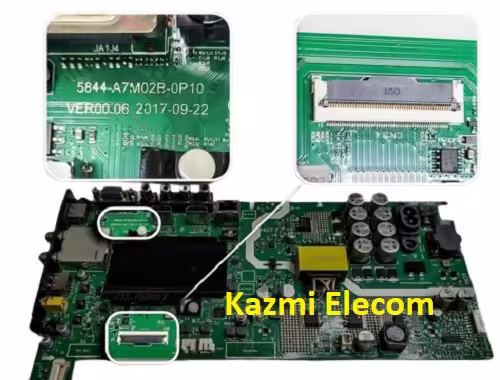

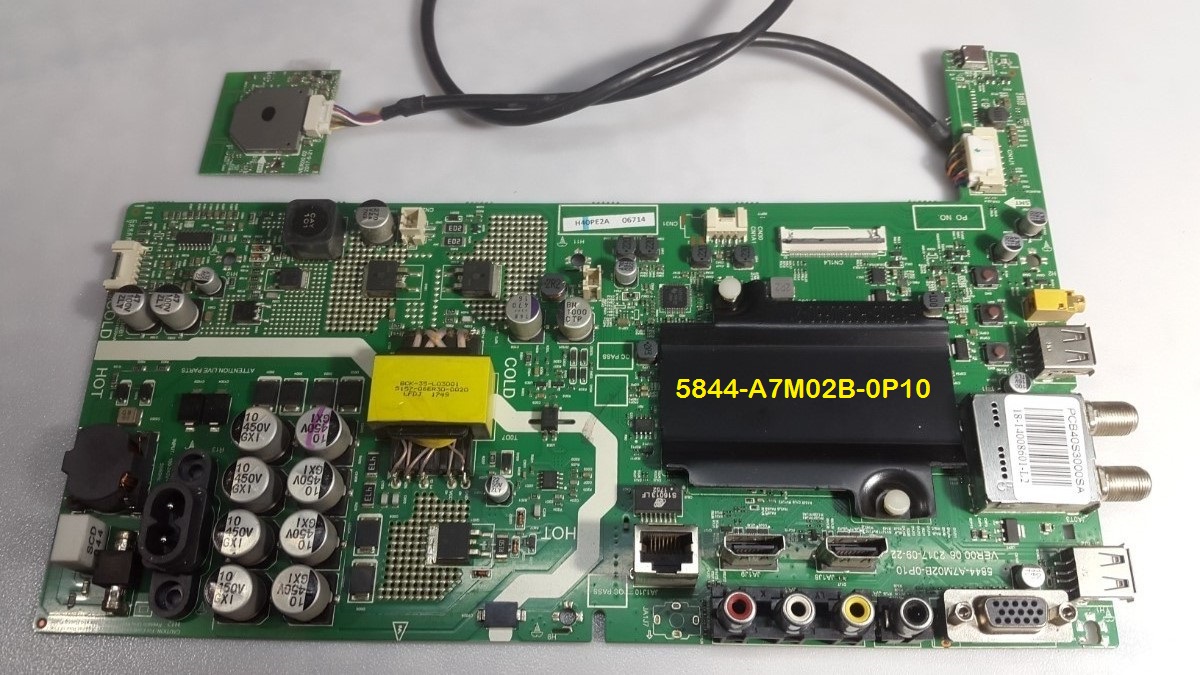

5844-A7M02B-0P10 FHD LED TV Board
5844-A7M02B-0P10 is a combo LED FHD Smart TV Board. It has a Full HD resolution of 1920×1080 and a Refresh Rate is 50 hertz. It has 2 HDMI ports to connect a set-top box, Blu-Ray players, and gaming console, and 2 USB ports to connect hard drives and other USB devices and play multimedia as well. It has Dolby DTS Support 20 Watts sound output and HDR Display viewing. 5844-A7M02B-0P10 has smart featured applications built into the software.
It can support the ATV, DTV, and CATV signals. All connectivity interfaces as per latest user needs like HDMI Input ports, RCA input, USB ports, VGA ports for computer system connectivity, and RJ45 ports for wired internet. 5844-A7M02B-0P10 firmware files are given below for free of cost download.
General Features & Specifications:
Make: China
Board Model: 5844-A7M02B-0P10
Display Format: FHD
Screen Type: LED
Features Format:
OS Version:
Chipset:
Processor: Quad-Core
Graphic Processor: Quad-core
RAM Capacity: GB DDR3
Storage Memory: NAND Flash
Screen Resolution: 1920×1080
No of HDMI Ports: 2
No of USB Ports: 2
Wi-Fi Type: Wi-Fi
Built-In Wi-Fi: Yes
Ethernet (RJ45): Yes
Speaker Output RMS: 12 (6W*2)
TV Tuner: Analog/Digital
Power Requirement: Bivolt
Power Consumption: 85 W
Firmware Type: USB Update
Firmware Name: 5844-A7M02B-0P10.bin
Product User: Philco, Skyworth
Caution:
All the pictures and specification details related to 5844-A7M02B-0P10 in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.
Pros:
There are many advantages to installing the given 5844-A7M02B-0P10 USB software or eMMC backup dump file. A few benefits are described below:
- The dead stuck board can be recovered and operational by loading the given USB software or EMMC backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given 5844-A7M02B-0P10 USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
5844-A7M02B-0P10 Android Version Upgrade:
Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
5844-A7M02B-0P10 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first. Always keep a backup before writing the flash.
How to Download Firmware Files:
Download all parts of the following 5800-A6M88G-0P10 firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
5844-A7M02B-0P10 Firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | 5844-A7M02B-0P10-Philco PTV40E21.part1 | Download |
5844-A7M02B-0P10-Philco PTV40E21.part2 | Download | |
2 | 5844-A7M02B-0P10_Skyworth 40E21.part1 | Download |
5844-A7M02B-0P10_Skyworth 40E21.part2 | Download | |
5844-A7M02B-0P10_Skyworth 40E21.part3 | Download | |
5844-A7M02B-0P10_Skyworth 40E21.part4 | Download | |
5844-A7M02B-0P10_Skyworth 40E21.part5 | Download |
