6M181V1.0 Software Free Download

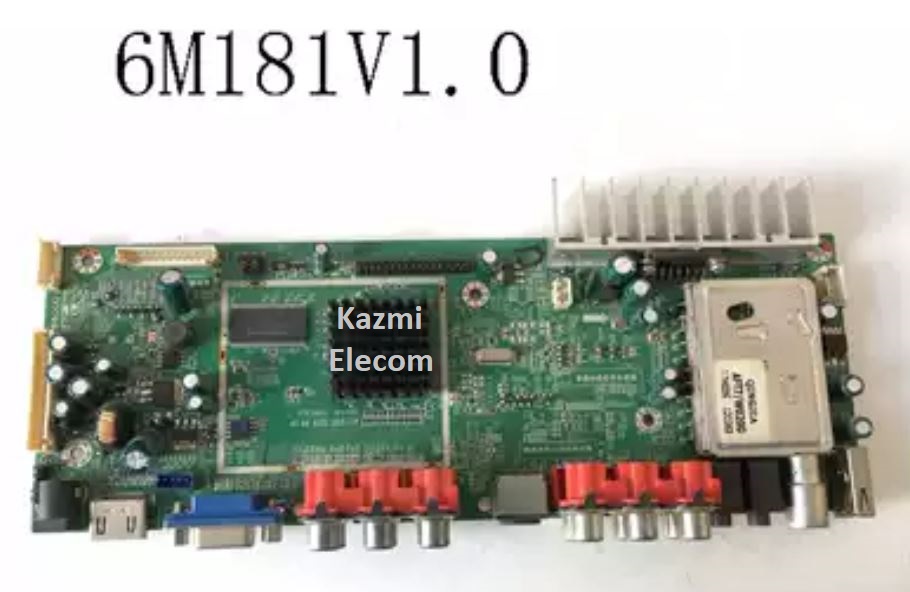

6M181V1.0 HD LCD TV Board

6M181V1.0 is an HD LCD TV Board for Asia and the Middle East, supports HDMI, AV, PC-RGB, S-Video(Option), USB, YPbPr, TV signal input, Earphone, SPDIF, CVBS.

Basic Info:

Model No. 6M181V1.0

Main Chipset: MST6M48

Trademark: TOP-TECH

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

6M181V1.0

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel 6/8 bit LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes for Firmware Upgrade and Multimedia Playback Support also

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program to the U disk based on your screen size.

Step 3: Connect the U disk with the Mainboard

Step 4: Connect the Keyboard and TV Mainboard

Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, and then connect the power supply again.

Factory Service Mode:

Menu+2580

Note:

The following Software is a USB bootable file and can be loaded by USB disk. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

6M181V1.0 Firmware Free Download :
