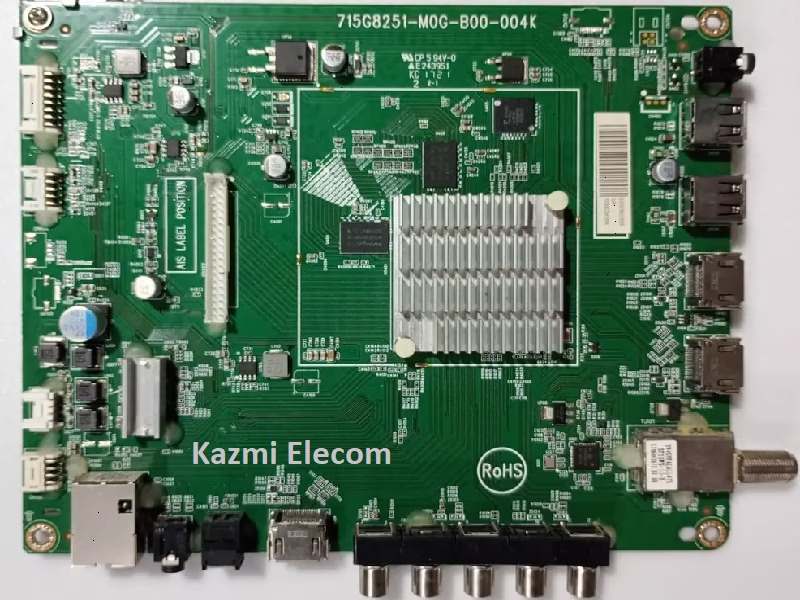

715G8251-M0G-B00-004K Smart Board
715G8251-M0G-B00-004K is an Intelligent, smart Android network driver LED TV motherboard with a Full High-Definition 1920×1080 resolution. This board is dedicated to 60 Hz screens. It is a small combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports, such as triple HDMI, RCA input AV, Coaxial (SPDIF), headphones, Optical interface, dual USB ports, RF Tuner, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. This board is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL-M/NTSC/PAL-N). This board has an inbuilt WiFi module and LAN interface. The 715G8251-M0G-B00-004K Firmware files are given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: 715G8251-M0G-B00-004K
Chipset: MTK
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 512MB DDR
ROM: 4 GB EMMC
EMMC: THGBMDG5D1LBAIT
Backlight: NA
USB Input: 02
HDMI Input: 03
Scart: No
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: NA
AV Input: Yes
Sound Output: 16W DTS-HD
RF TUNER: Yes
Video System: PAL-M/NTSC/PAL-N
Product: AOC, PHILIPS

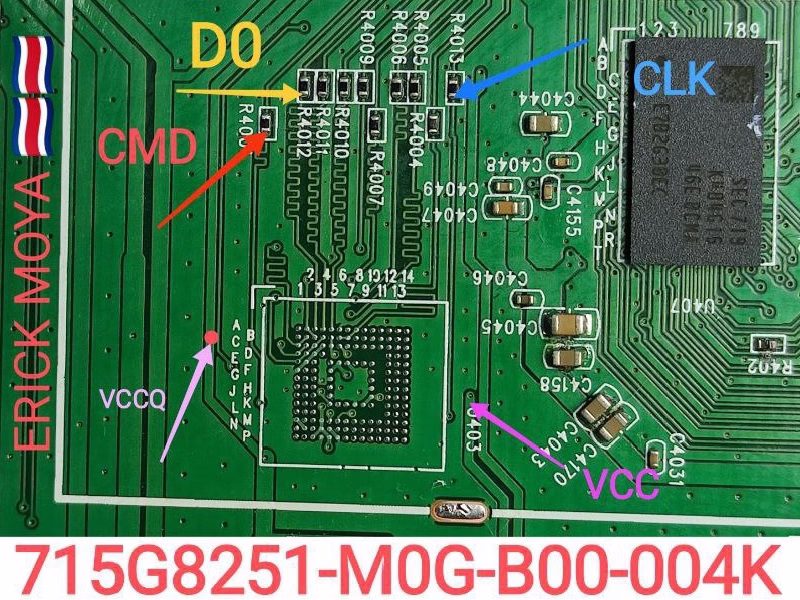

Note: The following firmware is an EMMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
715G8251-M0G-B00-004K Firmware for free download:
