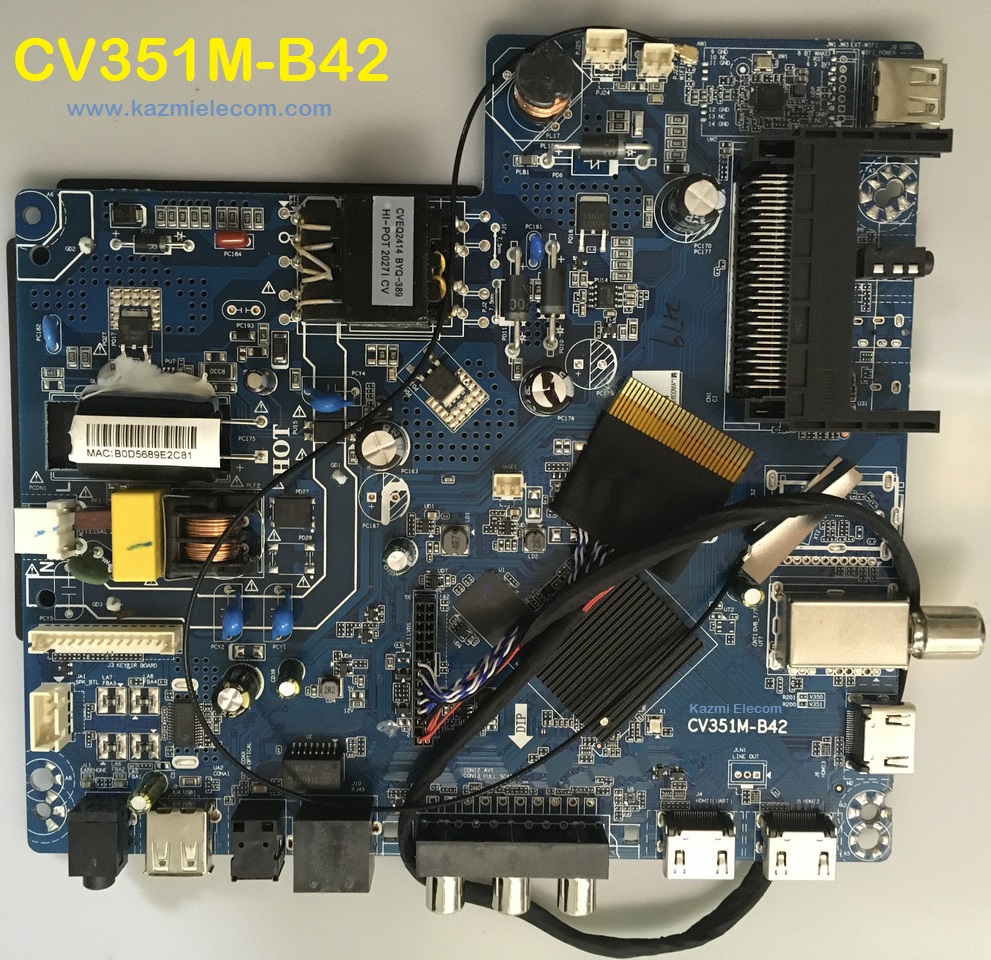

CV351M-B42 Smart Android Board
CV351M-B42 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. CV351M_B42 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. CV351M B42 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to SCART. VGA interface is not available on this board. CV351M-B42 has a LAN/RJ45 Connector interface port also for the wired internet network.
CV351M.B42 is a Combo Network Triple play board that has a Digital TV tuner built-in in it (digital terrestrial receiver). The Graphics and Sound quality of the CV351M.B42 android board are very good and the Response rate is very efficient. CV351M.B42 China smart network board can support up to 43″ LED Panels. CV351M.B42 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: LCD/LED Main Board (Android WIFI Network Drive Board)
Main Board: CV351M-B42
Main Chipset: Hi3751V350
OS: Android 9.0
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Multi-Core Mali-T450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
Back Light V/C : 37.2-42v 600mA
Ram: 1Gb
Rom: 8 Gb eMMC
Resolution: up to 1920×1080
Speakers: 2 x 8W
RF connectivity X 1
HDMI X 3
USB X 2
YPbPr X 1
HEADPHONES X 1
CI + X 1
RJ45 X 1
Firmware: Ctv351Upgrade.bin
Firmware Type: USB Updateable Firmware
Firmware Installation Guide: Click Here
Note: The following given CV351M-B42 firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download CV351M-B42 Firmware Files:
Download all parts of the following given CV351M-B42 firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Load Software:
- Transfer the required resolution file into a USB Disk
- Plugin the USB Disk into the Main Board
- Keep Pressing the Standby/Power button and Power on the board
- Wait until the LED light starts flashing
- Note: The USB file must be the name “CtvUpgrade.bin”
CV351M-B42 firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | CV351M-B42_1920X1080_1G_8G_USB.part1 | Download |
CV351M-B42_1920X1080_1G_8G_USB.part2 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part3 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part4 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part5 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part6 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part7 | Download | |
CV351M-B42_1920X1080_1G_8G_USB.part8 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
