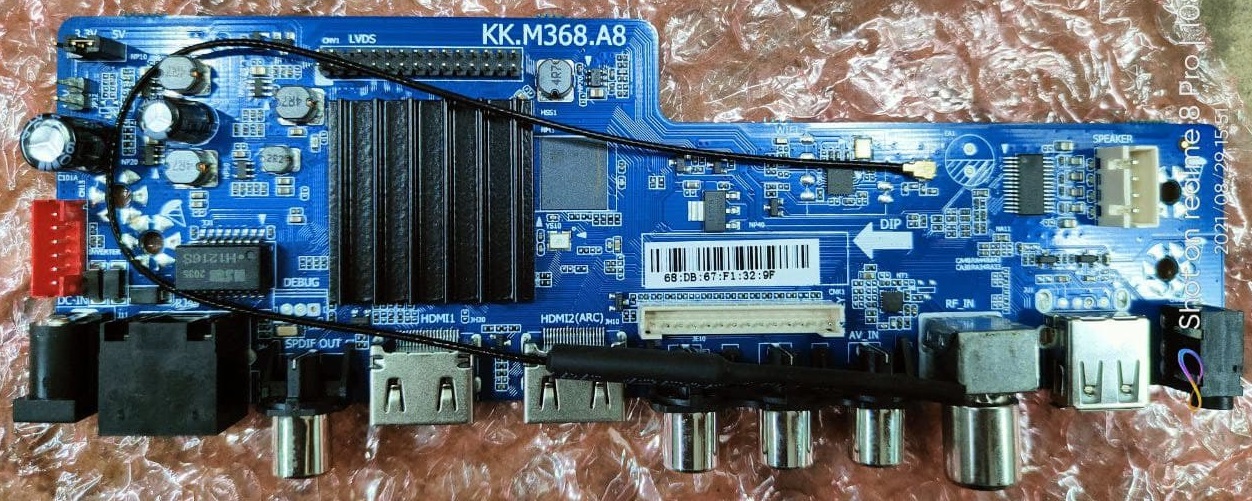

KK.M368.A8 Android Smart Board
KK.M368.A8. KK.M368.A8 is a Full HD resolution 1920×1080 smart board with the latest android version of 9.0 pie. KK-M368-A8 is universal with a DC supply and good audio output. KK_M368_A8 can support many panel screens from 14 inches to 55 inches with the best picture quality. KK M368 A8 has multiple connectivity ports like AV, Dual HDMI, USB, and Digital Tuner input. Its special features are the Mirroring option, WiFi support, and inbuilt Apps. KK.M368.A8 firmware files are given below for the technician’s support.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: KK.M368.A8
Supported Resolution: 1920×1080 FHD
Screen Format: 16:9
Chipset: MT9255
Platform: MT5862
Sound IC: VA2221TSG28
Operating System: Android 9.0
CPU: ARM Cortex-A53 quad-core
GPU: Mali-400
RAM: 512M/1Gb
ROM: 4Gb/8Gb
Sound Output: 5Wx2
Transmission: DVB-T2
Video System: PAL/SECAM
Tuner: AB253
Power Input: 12V DC
Panel Power: 3V, 5V, 12V (Jumper Cap Setting)
Firmware Name: MT9255_512M_A8.bin
Firmware Type: USB Upgradeable
Service Menu Code: Menu/Source 1147
Price:
The price of this Universal Smart Android LED TV Board is approximately USD 25 but keep in mind that the price should be varies according to the dollar rate in Pakistan. Convert the dollar rate in rupees to get the approximate price in PKR.
Supported Resolutions:
- 1280×1024
- 1366×768
- 1440×900
- 1440×1050
- 1600×900
- 1680×1050
- 1920×1080
- 1920×1200
Note: The following given software for Technician’s support. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download KK.M368.A8 Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here is below KK.M368.A8 firmware files for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | KK.M368.A8_1366X768_512M_USB.part1 | Download |
| KK.M368.A8_1366X768_512M_USB.part2 | Download | |
| KK.M368.A8_1366X768_512M_USB.part3 | Download | |
| 2 | KK.M368.A8_1920X1080_512M_USB.part1 | Download |
| KK.M368.A8_1920X1080_512M_USB.part2 | Download | |
| KK.M368.A8_1920X1080_512M_USB.part3 | Download | |
| 3 | KK.M368.A8_1280X1024_512M_4G_USB.part1 | Download |
| KK.M368.A8_1280X1024_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1280X1024_512M_4G_USB.part3 | Download | |
| 4 | KK.M368.A8_1366X768_512M_4G_USB.part1 | Download |
| KK.M368.A8_1366X768_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1366X768_512M_4G_USB.part3 | Download | |
| 5 | KK.M368.A8_1440X900_512M_4G_USB.part1 | Download |
| KK.M368.A8_1440X900_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1440X900_512M_4G_USB.part3 | Download | |
| 6 | KK.M368.A8_1440X1050_512M_4G_USB.part1 | Download |
| KK.M368.A8_1440X1050_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1440X1050_512M_4G_USB.part3 | Download | |
| 7 | KK.M368.A8_1600X900_512M_4G_USB.part1 | Download |
| KK.M368.A8_1600X900_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1600X900_512M_4G_USB.part3 | Download | |
| 8 | KK.M368.A8_1680X1050_512M_4G_USB.part1 | Download |
| KK.M368.A8_1680X1050_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1680X1050_512M_4G_USB.part3 | Download | |
| 9 | KK.M368.A8_1920X1080_512M_4G_USB.part1 | Download |
| KK.M368.A8_1920X1080_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1920X1080_512M_4G_USB.part3 | Download | |
| 10 | KK.M368.A8_1920X1200_512M_4G_USB.part1 | Download |
| KK.M368.A8_1920X1200_512M_4G_USB.part2 | Download | |
| KK.M368.A8_1920X1200_512M_4G_USB.part3 | Download |
Where can I buy Android smart tv mainboard?
visit your local market
Sir.. KK. 368.A8 board i installed but sound out put very low.. In volume full.. Speaker also good.. How to set sounds setting in service manu sir…. Pls gaide us.. My no whats app: +918850309017
Halpful
Nice site
Nice
Sir ye 1920*1080 nai 1920*1200 hai kindly upload 1920*1080 please
Helpful sir great work
AOA: SIR KK.M368 A8 KN SA REMOTE ATECH HOTA H
WATCH VIDEO
Sir KK. M368.A8 Part 6 Not Downloading Please Fix It Please
try now
KK.M368.A8_1920X1080_512M_USB.part6.rar download link not available
Noted
Sir l download software 1920×1200 but software does not extract l tried so many time but the same result please help me I need it
download all parts then extract any one of them
sir, software loded but remote not working
use universal remote
32, Inch smart LED TV, combo board model number, Kk,M,368,818, service code number chahie
Sir 1600×900 file not working
Please refresh this link
all links working
Extract password required
Please give password
No password set. download all parts then extract anyone of them
Please upload multi resolution file and code list
Hi can i install google tv on it??
apk file can be installed by USB
