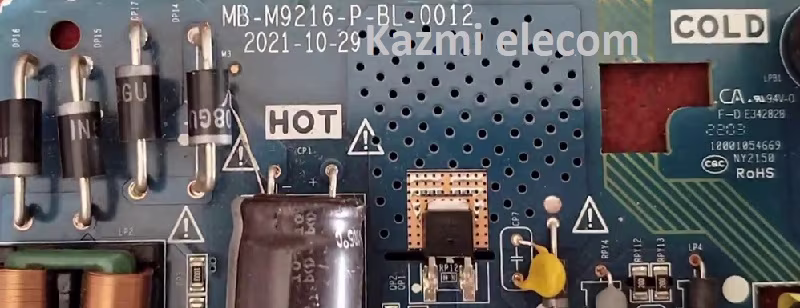

MB-M9216-P-BL-0012 Smart FHD Board
MB-M9216-P-BL-0012 is an Intelligent, smart Android network driver LED TV motherboard with a Full High-Definition 1920×1080 resolution. MB-M9216-P-BL-0012 is dedicated to 60 Hz screens. It is a combo board. It has the full features of input interface connectivity. It has multiple input connectivity ports, such as dual HDMI, Mini AV, Coaxial, headphones, Scart Interface, Optical interface, USB ports, and an RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades and multimedia playback. MB-M9216-P-BL-0012 is a digital and analog TV tuner built into the main board, which can receive analogtelevision (PAL/NTSC). It has a special Bluetooth 5.1 connectivity feature. This board has an inbuilt WiFi module and LAN interface. The MB-M9216-P-BL-0012 Firmware file is given below for the Technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED FHD Smart Android Driver Board
Model: MB-M9216-P-BL_0012
Chipset: MT9216AAATCB
Supported Resolution: 1920×1080 FHD 1080P
Screen Format: 16:9
Operating System: Android 11
CPU: 4-core ARM Cortex-A53(64bit) 1.2GHz
GPU: Mali-450 MP3 up to 667MHz
RAM: 1 GB DDR3
ROM: 8 GB EMMC
Backlight: 60-72V 300mA,
USB Input: 01
HDMI Input: 02
Scart: Yes
VGA: No
RJ45 (LAN): Yes
Wifi: Yes
Bluetooth: 5.1
AV Input: Yes (Mini)
Sound Output: 20W DTS-HD
RF TUNER: DVB-C , DVB-S2 , DVB-T , DVB-T2
Video System: PAL/SECAM/NTSC
Product: Realme
Power Input: 100- 240V 50/60 Hz
Note: The following firmware is a USB bootable file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or are facing any issues during firmware installation, then visit and read here first.
MB-M9216-P-BL-0012 Firmware for free download:
