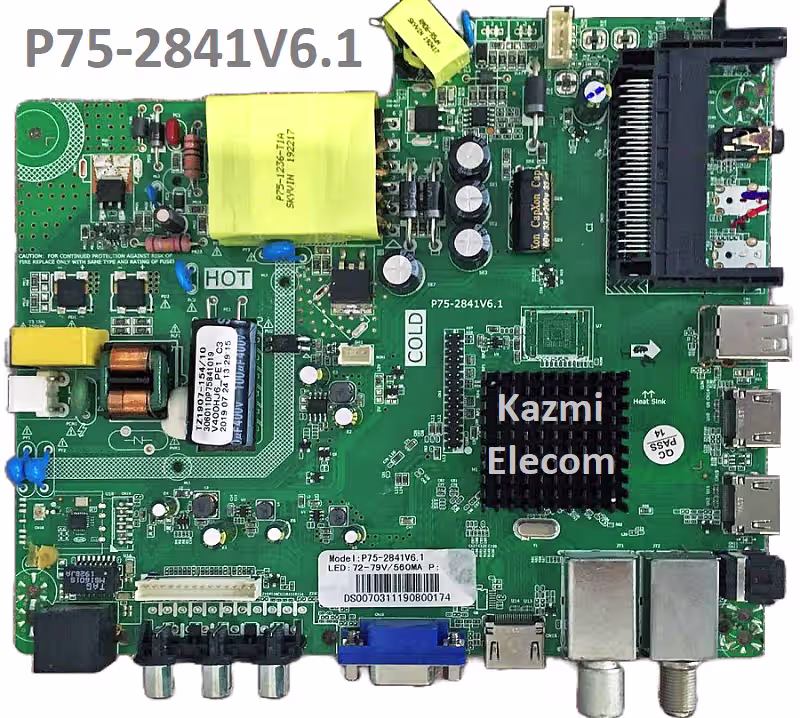

P75-2841V6.1 Android Smart Board
P75-2841V6.1 is a high-speed smart network universal driver board with an FHD resolution of 1920×1080. It is dedicated to 32″ to 55″ screens. This board has an integrated powerful wifi system. All the connectivity user interfaces are provided on this board as per the requirement. P75-2841 V6.1 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well, in addition to VGA, SCART, and Headphones. P75_2841_V6.1 has a LAN/RJ45 Ethernet Connector interface port, also for the wired/cable internet network.
P75 2841 V6.1 is a Combo high-speed network triple-play motherboard that has the ATV/DTV, Backlight Driver Board, and Power Supply Module built into it. The Video and Sound quality of the P75-2841-V6.1 Android board is very good, and the Response rate is very efficient. The P75-2841-V6.1 China Smart Network Board has an Android 7. x version.
Specifications & Features:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: P75-2841V6.1
Main Chipset: RTD2841
Interface: Single/Dual LVDS
TV System: DVB-T/T2/S/S2/C
Operating System: Android 7.x
RAM: 1Gb
Rom: 4Gb/8Gb eMMC
Backlight: 72 to 79 V 560 mA
Audio Output: 2x8w (8 Ω)
Resolution: up to 1920×1080 (43” to 55″)
Panel Power: 12V
Power Input: 100-240V AC
Service Menu Code: Source/Input 2008, Menu 1201

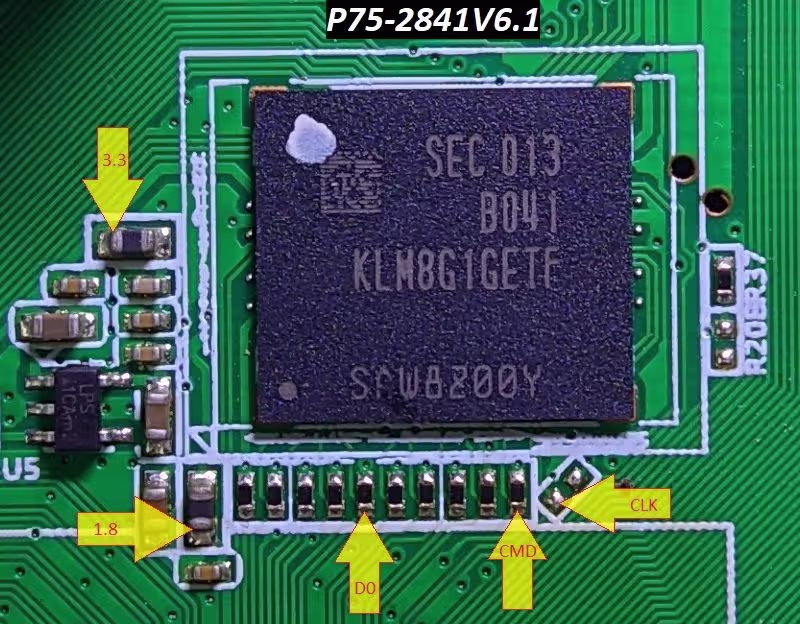

EMMC: KLM8G1GETF
Tuner: DVBT/T2 & SAT
Note: The following given Software/Firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of installing/downloading the firmware/software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files, then read here first.
P75-2841V6.1 firmware for free download:
