RSAG7.820.8752 4K Smart Board

RSAG7.820.8752 is a UHD smart Android LED TV Board. This board has HDR (High Dynamic Range) picture quality with a supported resolution of 3840×2160. It’s 4K Ultra HD 2160p Resolution And 60Hz Effective Refresh Rate Provide a Brilliant Picture Quality And Smooth Motion For Optimal Viewing Experience. It is a smart UHD Android platform board with a Mstar Quad-core Processor. Its memory (RAM) is 1.5 GB, and its ROM storage is 4GB. This board has both the option of analog signal reception and digital signal reception. It has both Wi-Fi and Local Area Network (RJ45) for wireless and wired internet connectivity. The Bluetooth option is also available.

Download Here

It has inbuilt apps Hotstar, YouTube, Sony Live, Zee5, Eros Now, Alt Balaji, Hungama Play, Google Movies-TV & Google Music, etc. The user can install and uninstall other apps of their own choice. Other Smart Features: All-Share, Display Mirroring, DLNA, DLNA DMP, Double USB Sharing, Easylink (HDMI-CEC), Free Share (DLNA), MHL, Network File Sharing, One-touch Connect, Photo share, Screen Casting, Smart-Share, Smart-View, WiFi Direct, Android, and Future Ready. It also has a voice recognition feature in its software. Users can use voice to enjoy Google Home voice features.

RSAG7.820.8752 General Information:

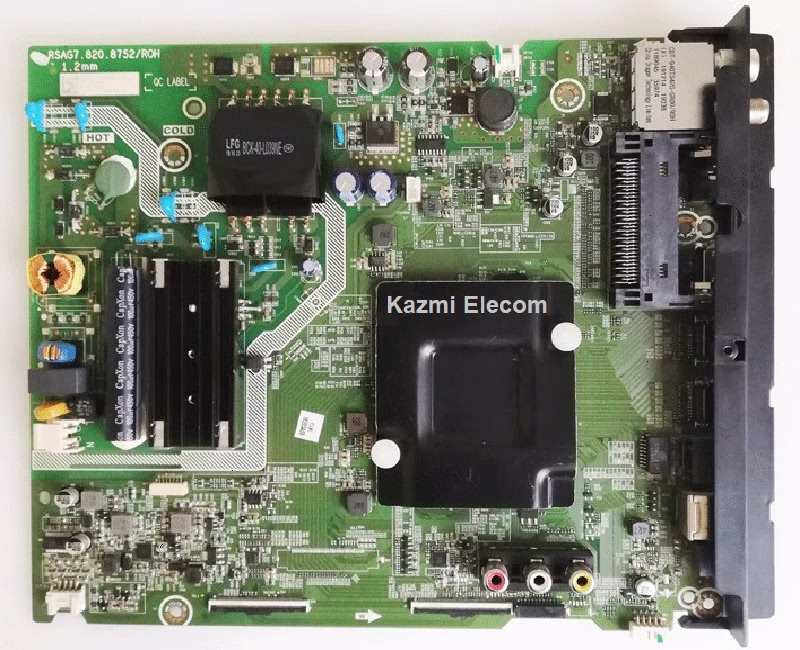

Board Model: RSAG7.820.8752/ROH

Processor: MSD6886NQHAT

CPU: CA9 *2, 1.0GHz

GPU: Dual-Core MALI-400

Android Version: NA

Resolution: 3840×2160

Audio Power: 2x7W (14 watts 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: No

Component: Yes

RJ45: Yes

Analog Tuner: PAL, NTSC, SECAM

Digital Tuner: DVB

Wifi: Yes

Mira-Cast: Yes

SPDIF OUT: Yes

Memory (RAM): 1.5 GB DDR3

Storage (ROM): 4 GB EMMC Flash

EMMC: THGBMBG5D1KBAIL

Power Rating: 100V~240V 50/60Hz

Power Consumption: 110Watt

Firmware Name: NA

Firmware Type: EMMC Backup Dump

Product User: HISENSE

RSAG7.820.8752 Technical Specifications:

Operating System Vida
Display 3840*2160
RAM/ROM 1.5G Byte DDR3 /4G Byte ROM
HDR HDR10 Decoding
HDMI ports 3
MHL enabled Yes
HDMI Support MHL & ARC
Ethernet sockets 1
USB ports 2
USB supports Audio, Video, and Image
Cable Port Yes
SPDIF Yes
A/V IN Yes
Headphone speaker output ports 1
Refresh rate 60 Hz
Resolution 4K Ultra HD 2160P
Backlight Adjustable Yes (0~100)
Image formats supported: BMP, GIF, JPEG, PNG
Analog TV reception formats: PAL, NTSC, SECAM
Video formats supported: MKV, MPEG, MPEG-1, MPEG-2, MPEG-4
Upscaling Yes
Other Video Features: Dolby Vision, HDR 10
Audio formats supported AAC, AC3(Dolby Digital), MP2, MP3, PCM
Audio Features: 5 Band Equalizer, Auto volume leveler, Balance, Dolby Atmos
Dolby Decoder MS12
No. of speakers 2
Total speaker output 14 W
Output per speaker 7 W
Sound type 2.0, Stereo
Bluetooth Yes
Processor Type: Quad Core
Screen Format 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2
Inbuilt apps Yes
Wi-Fi Yes
Internet Link 2.4GHz WiFi 802.11 b/g/n 2T2R, Ethernet Network
Remote Type RF (Radio frequency)
Other Remote Feature: Smart Control
Certification CB, Dolby/MS12, HDMI, YouTube、NETFLIX
Miracast screen mirroring support: Yes
Voltage requirement: 100 – 240V 50/60Hz
Power saving mode: Yes
Band support Single Band

How to Write RSAG7.820.8752 EMMC Backup:

Download the given RSAG7.820.8752 EMMC backup shared in this post below
Note the EMMC Pinouts in the given picture above
JTAG the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following RSAG7-820-8752 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board, then install the software. If you are new to loading, installing, or updating software, firmware, or dump files, or are experiencing issues during firmware installation, please visit and read this information first.
