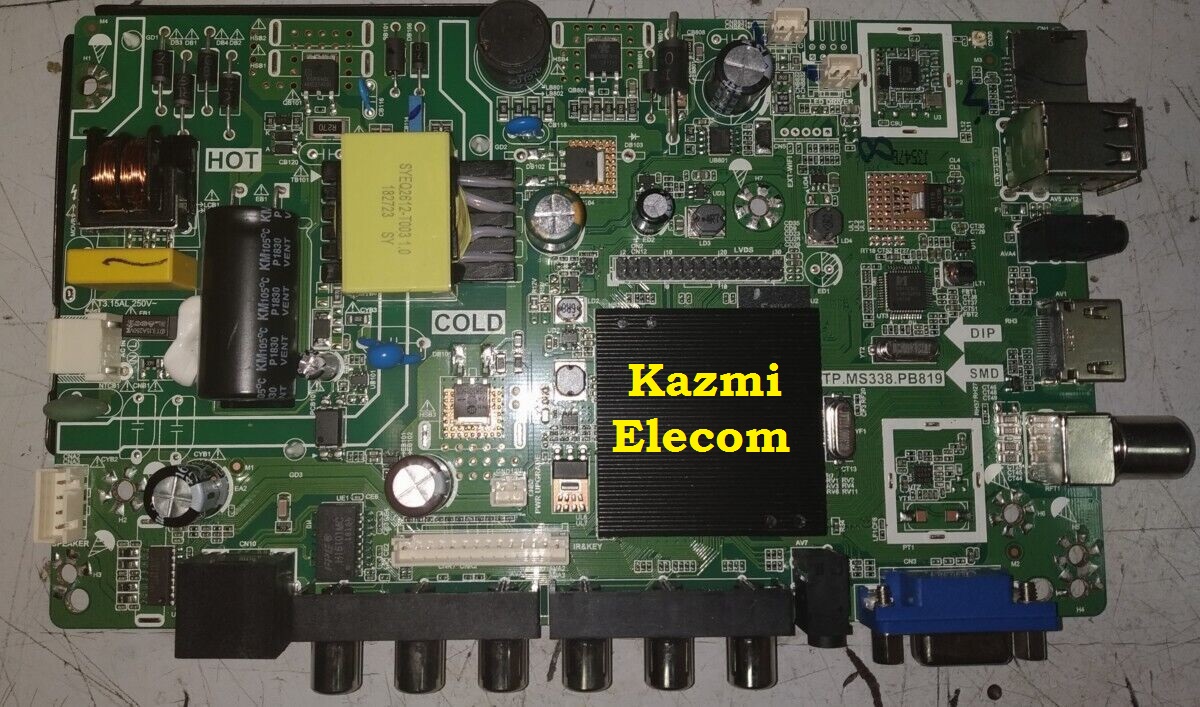

TP.MS338.PB819 Universal Smart Board
TP.MS338.PB819 is a universal smart integrated board with an Android wifi network function. TP MS338 PB819 is a three-in-one network Driver Wi-Fi board that can support up to 28 to 42-inch screens. TP_MS338_PB819 can be equipped with various screens. TP.MS338 PB819 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well in addition to VGA, Scart, and Earphones. TP.MS338-PB819 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP_MS338_PB819 is a Combo Network Triple play board that has a Digital TV tuner built-in in it. The Graphics and Sound quality of the TP.MS338-PB819 android board are very good and the Response rate is very efficient. TP.MS338.PB819 firmware is available for technician support.
General Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP-MS338-PB819
Main Chipset: DTMB: MSD6A338ST-WL OR MSD6A338ST-003J
OS: Android 4.4
CPU: A7*2
CPU Frequency: 1GHz
GPU: Mali400*2
GPU Frequency: 550MHz
Ram: 512 Mb
Rom: 4 Gb eMMC
Backlight: 30v to 160v 48w, 300mA
Audio Output: 2x8w
Resolution: upto 1920×1080 (28” to 42″)
Service Code: Menu+1147
Firmware: allupgrade_msd338_4G_1G_ref30. Bin
Firmware Type: USB Updateable Firmware, TP.MS338.PB819 program data USB
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Copy the .bin file into the USB disk
- Connect the U-Disk to TV
- Switch on the TV
- Standby lights start flashing. when the light flashing speed increases it means it is complete.
- Switch OFF, Remove the Disk, and Switch ON again. Done
TP.MS338.PB819 firmware for free download:
S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
---|---|---|
1 | TP.MS338.PB819-1366x768-1G-4G-REF30.part1 | Download |
TP.MS338.PB819-1366x768-1G-4G-REF30.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
BD_TP_MS358_PC821 software not show
Please help
This software youtube problem 50″ ledtv
update the youtube or use youtube helper or aptoid tv app
Tp.ms338.pb819 1366*768 bin file plese help me
Ami
fektory setting bol sab dewate disple soni of Howe gese saun ase
Sir yeah software download nhe ho rahy. This site cannot be reached aa rha hy please active sir
link is working dear. watch video on the homepage of this website how to download
Tp.338.pb819 1920*1080 Software apka pas nahi haa.
No
how the software of the TP.MS338.PB819 board is installed.
Oh how is the procedure for me to recognize the USB with the software.
HI I HAVE IKON ANDROID TV WITH THE SAME BOARD AND I HAVE INSTALLED THE OS , ITS NOT WISDOM SHARE AND REMOTE ALSO NOT WORKING. PLEASE HELP
sorry not available in IKON remote. better to try universal remote
el firmware de la TP.338.PB819 no esta disponible. Por que?
Servers updating
sir tp ms338pb819 sofware part 2 me err aarahihai
Noted. i will replace soon
no extracting dekharahai boss? problem kyea …..mujhe kyea karna parege please batadijie boss
download all parts then extract any one of them with 7zip
Hi sir
I required filmware of
TP.MS338.PB802 1GB 8GB
1366×768 resu…
Pls help me..
8g me nai hy
sir i need to know the rename for the file to install the software for all universal boards
do i have to download all 10 files of ms338.pb819 motherboard ?
yes
IM trying to progamTP.MS338.PB19 board but seems to be doing something wrong plz advice
No need to load the program. just reset to factory default
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
watch video tutorial also
unzip password…???
no pw
Tp.ms338.pb.819 bord men ic heating problem
No sorting found ic over heat ke Baad display up dawan line show and pictures crashed and audio ok runing giv me diagram
please help
ic change kar den ya phir board he change hoga
SIR TP.MS338.PB819 BOARD ME SOFTWARE INSTALLATION COMPLETE HO JA RHA HAI PR FIR ON KRNE K BAAD KUCH SECONDS ME LCD BAND HO JAA RHA HAI ,PLEASE HELP SIR
Board me fault ho sakta hy
Sir to kya karna chahiye , factory reset bhi nhi ho rha 1% se aage nhi bd rhi file (factory reset wali)
technician pe visit karen
Can upload the files no works.
updated
Hi, How can I buy the PCB itself please? I need a spare one. Thanks
check your local market or some online shop
Hello…
Premium downloading me software 1 hi file me hoga ya parts me please tell me
free download
sir ye software 1 part me kaisy mily ga ye to 10 part me ha time bohat laita ha please koi tareeka btain.
SIR TP.MS338.PB819 FHD File MIL SKATI HE
isme nai hy. ap PB801 ya 818 wali kar len. agar logo pe stuck hy to software karne ki zarorat nai just reset to factory default
Hello, I have installed all 10 part and extracted. It is showing upgrading 100% completed. But when I turnoff and then turn on ‘NGI Digitize your life’ only this screen appears and then it goes black. Wisdom Share screen is not coming. I am trying it in my Toshiba LCD TV which is around 8 years old.
install any other software
Sir, can I upgrade board BD_TP_MS338_PB819 or upgrade android version? how to connect my android mobile as remote control?
https://youtu.be/FZm70xPwc0M
hi dear
sir mere pas jo board hai us mein apollo software tha mujhse koi dusra software flash hogaya ab wapas apollo per kese jaun remote bhi apollo ka hai jo iss frimware pe nhi chal raha 32 inch apollo led hai card model 338.pb819 apollo remote
wapas to nai jye ga. software search kar k install karna hoga
