TP.MS358.PB801 WIFI Network Board
TP.MS358.PB801 is a high-speed network driver board with an FHD resolution of 1920×1080. It is dedicated to 32″ to 46″ screens. TP_MS358_PB801 has a powerful wifi system. Smart FHD TV features With Android Platform and great features to entertain Full HD Wide Screen with better to work SMART. TP-MS358-PB801 Smart Board has multiple ports of A/V, USB interface Ports, and many HDMI ports as well in addition to VGA and Headphone also. TP MS358 PB801 has a LAN/RJ45 Connector interface port also for the wired/cable internet network.
TP.MS358.PB801 is a Combo high-speed Network Triple play motherboard that has the ATV, Backlight Driver Board, and Power Supply Module built-in in it. The Video and Sound quality of TP.MS358.PB801 android board are very good and the Response rate is very efficient. TP.MS358.PB801 china smart network board has an android 4.4 version. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
Technical Specifications:
Brand/Mark: FHD Smart LED TV Main Board
Main Board Model: TP.MS358.PB801
Main Chipset: MSD6A358ATH-003D
OSD Language: Chinese, English
Interface: Single/Dual LVDS
VIDEO INPUT: TV(Details in 3.1) ATV(PAL)/DTV (DTMB)
Operating System: Android 4.4
CPU: A35*4
CPU Frequency: 1.5 GHz
GPU: Mali400*2
GPU Frequency: 500MHz
Ram: 512 Mb DDR SD-Ram
Rom: 4Gb eMMC
Backlight Power/Voltage: 65W 12V 30V-160V/35W 2PIN-2.0+3PIN-2.0 or 2PIN-2.0+2PIN-2.0
75W 12V 36V-140V/45W
80W 12V 60V-140V/50W
82W 12V 141V-180V/52W
Backlight Current: 350-600mA
Audio Output: 2x8w
Resolution: up to 1920×1080 (32” to 46″)
Panel Power: 12V
Power Input: 100-240V AC
Tuner: R842
Service Code: Menu+1147
Note: Following given firmware is USB upgradeable. Download all parts of the required resolution and then extract/unzip anyone of them you will get the folder. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are not a technician or do not have any knowledge of loading or installing firmware files then you should visit your nearest professional technician to get it repaired and to avoid any hypertention.

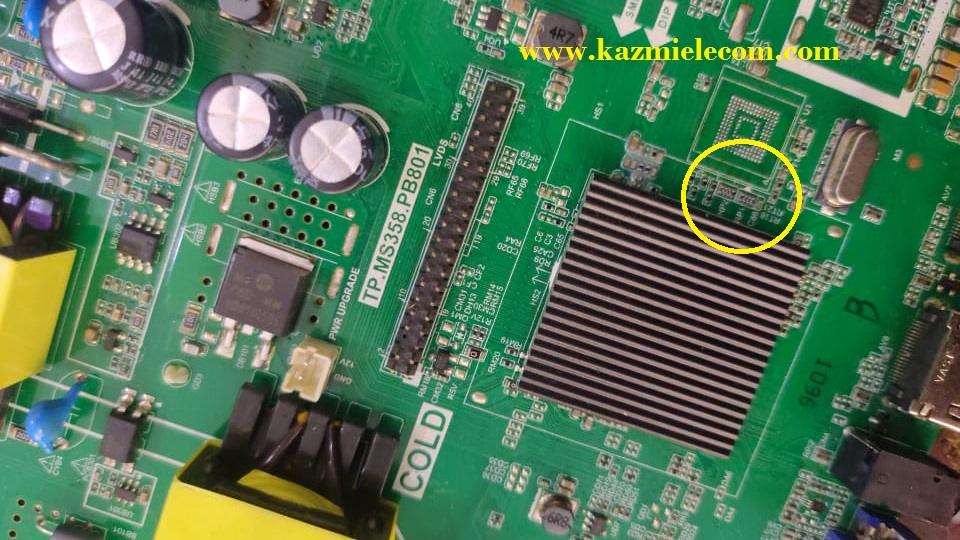

This board is with 512 MB RAM and 4GB ROM Tuner R842. Mostly observed that the fault in this board is that it hangs on the logo. First, you should confirm before loading software If the board hangs on the logo for more than 10 seconds, then the issue seems to be a software problem and if the board is reset immediately after showing the logo, then it is a hardware problem, not a software problem. If you are sure that this is a hardware problem, then check the resistance arrays which are mounted on the motherboard along with its EMMC chip as shown in the below picture.
Software Installation Instructions:
Keep in mind that this board has two different types of software versions. One is A10 and the second is A20. There is a big difference between both versions A10 and A20 and can not replace each other. If you are trying to load A10 firmware in the A20 version Board then USB will not boot and the standby light may continuously blink if you are trying to load the A20 version ina10 version board then also the same condition or maybe update progress stops at 1 %. So, be careful while loading firmware. If you are facing any issue during firmware installation then visit and read here first.
How to Download Firmware Files:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some TP.MS358.PB801 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MS358.PB801_1366x768_4G_512M_REF64.part1 | Download |
| TP.MS358.PB801_1366x768_4G_512M_REF64.part2 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF64.part3 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF64.part4 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF64.part5 | Download | |
| 2 | TP.MS358.PB801_1920x1080_4G_512M_USB.part1 | Download |
| TP.MS358.PB801_1920x1080_4G_512M_USB.part2 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_USB.part3 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_USB.part4 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_USB.part5 | Download | |
| 3 | TP.MS358.PB801_1366x768_4G_512M_REF60.part1 | Download |
| TP.MS358.PB801_1366x768_4G_512M_REF60.part2 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF60.part3 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF60.part4 | Download | |
| TP.MS358.PB801_1366x768_4G_512M_REF60.part5 | Download | |
| 4 | TP.MS358.PB801_1920x1080_4G_512M_REF60.part1 | Download |
| TP.MS358.PB801_1920x1080_4G_512M_REF60.part2 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_REF60.part3 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_REF60.part4 | Download | |
| TP.MS358.PB801_1920x1080_4G_512M_REF60.part5 | Download | |
| 5 | TP.MS358.PB801_A10_1366x768_Samsung_Nobel_Mohan_IR.part1 | Download |
| TP.MS358.PB801_A10_1366x768_Samsung_Nobel_Mohan_IR.part2 | Download | |
| TP.MS358.PB801_A10_1366x768_Samsung_Nobel_Mohan_IR.part3 | Download | |
| TP.MS358.PB801_A10_1366x768_Samsung_Nobel_Mohan_IR.part4 | Download | |
| TP.MS358.PB801_A10_1366x768_Samsung_Nobel_Mohan_IR.part5 | Download | |
| 6 | TP.MS358.PB801_A20_1366x768_4G_Pakistan_Ref44.part01 | Download |
| TP.MS358.PB801_A20_1366x768_4G_Pakistan_Ref44.part02 | Download | |
| 7 | TP.MS358.PB801_A20_1920x1080_4G_Pakistan_Ref70.part01 | Download |
| TP.MS358.PB801_A20_1920x1080_4G_Pakistan_Ref70.part02 | Download | |
| 8 | TP.MS358.PB801_A20_1366x766_4G_Pakistan_Ref35.part01 | Download |
| TP.MS358.PB801_A20_1366x766_4G_Pakistan_Ref35.part02 | Download | |
| 9 | TP.MS358.PB801 1366x768-1G-8G-CYBER-REF30.part1 | Download |
| TP.MS358.PB801 1366x768-1G-8G-CYBER-REF30.part2 | Download | |
| 10 | TP.MS358.PB80-1366x768-8G-SANSUI-REF41.part1 | Download |
| TP.MS358.PB80-1366x768-8G-SANSUI-REF41.part2 | Download |
