TP.MT5510S.PB802 Firmware

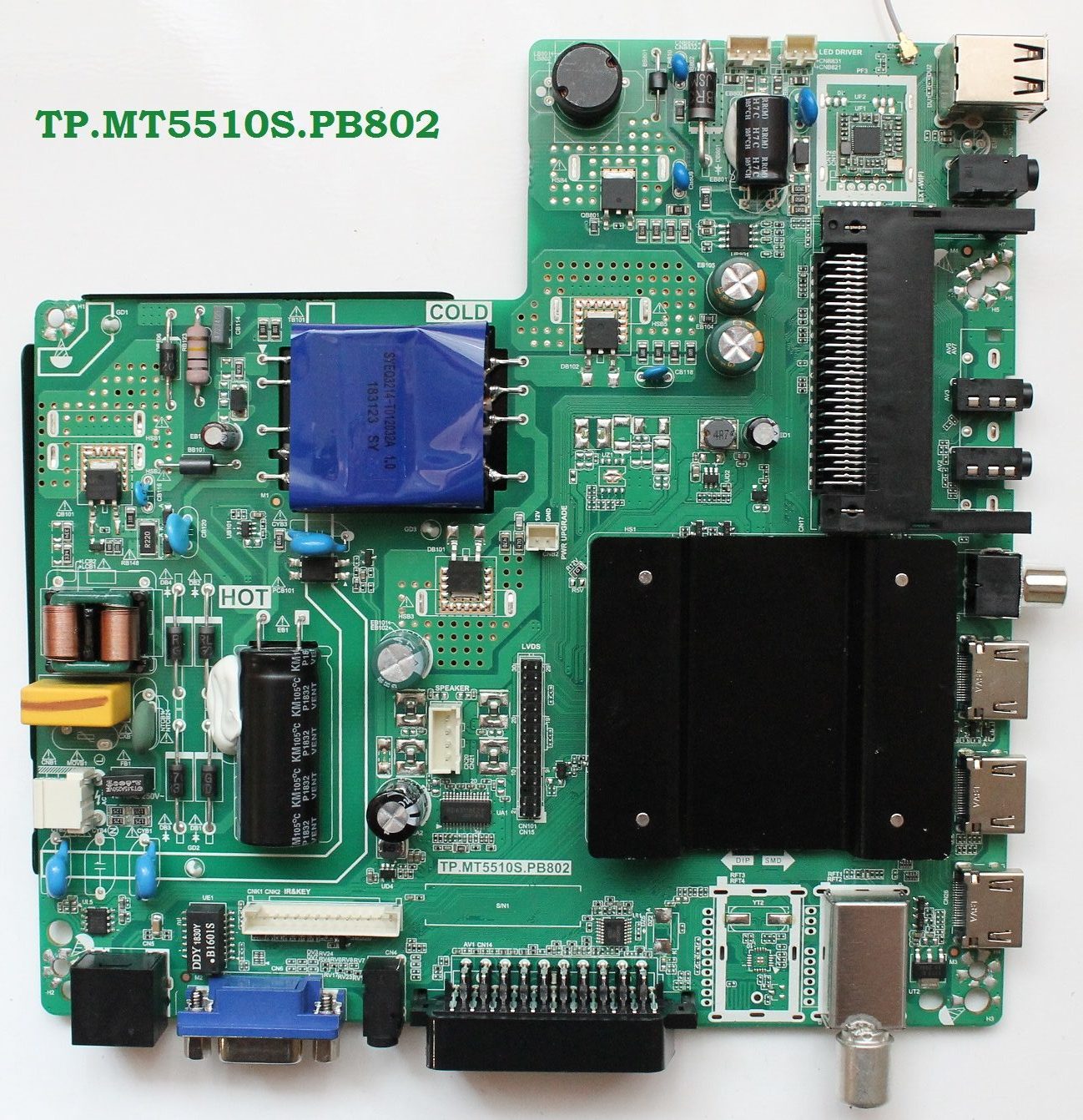

TP.MT5510S.PB802 is an android network driver smart led tv board with an FHD resolution of 1920×1080. TP_MT5510S_PB802 has a powerful wifi system. Smart FHD TV With Android Plateform and great features to entertain Full HD Wide Screen with better to-work SMART. TP MT5510S PB802 Smart Board has multiple ports of A/V, a USB interface Port, and Dual HDMI ports as well. TP-MT5510S-PB802 has a LAN/RJ45 Connector interface port also for the wired internet network.
TP.MT5510S.PB802 is a Combo Network Triple play board. The Graphics and Sound quality of the TP_MT5510S_PB802 android board are very good and the Response rate is very efficient. TP-MT5510S-PB802 china’s smart network board can support up to 42″ LED Panels. TP.MT5510S.PB802 firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: TP.MT5510S.PB802
Main Chipset: MT5659DHMT or MT5659DHNT
Operating System: Android 7.0
CPU: ARM Cortex-A53 quad-core 804MHz
GPU: Mali-450 Dual-Core 432MHZ
RAM: 1Gb
ROM: 8Gb
Back Light V/C : 30-140v, 32w-45w
Resolution: up to 1920×1080
Screen Size supported: 32 to 42 Inch
Audio Output power: 2x8W
Video System: PAL, SECAM, NTSC
DTV Transmission: DVB-T/C/T2/S/S2
Input Voltage: 100-240V AC
Firmware Name: allupgrade_5510_8G_1G_refxx.pkg
Firmware Type: USB Updateable Firmware
Note: The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given Software/firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
TP.MT5510S.PB802 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.MT5510S.PB802_1920x1080_8G_1G_VIVAX_REF69.part01 | Download |
| TP.MT5510S.PB802_1920x1080_8G_1G_VIVAX_REF69.part02 | Download | |
| 2 | TP.MT5510S.PB802_1920x1080_8G_1G_VIVAX_REF86.part01 | Download |
| TP.MT5510S.PB802_1920x1080_8G_1G_VIVAX_REF86.part02 | Download | |
| 3 | TP.MT5510S.PB802_1920x1080_Polarine 40PL11TC-SM.part01 | Download |
| TP.MT5510S.PB802_1920x1080_Polarine 40PL11TC-SM.part02 | Download | |
| TP.MT5510S.PB802_1920x1080_Polarine 40PL11TC-SM.part03 | Download | |
| 4 | TP.MT5510S.PB802_1920x1080_1G_8G_Asano 40LF7030S.part01 | Download |
| TP.MT5510S.PB802_1920x1080_1G_8G_Asano 40LF7030S.part02 | Download | |
| TP.MT5510S.PB802_1920x1080_1G_8G_Asano 40LF7030S.part03 | Download | |
| 5 | TP.MT5510S.PB802_1366x768_1G_8G_Shivaki_STV-32LED42S.part01 | Download |
| TP.MT5510S.PB802_1366x768_1G_8G_Shivaki_STV-32LED42S.part02 | Download | |
| 6 | TP.MT5510S.PB802-3840x2160-1G-8G-SAMTRON-REF80.part1 | Download |
| TP.MT5510S.PB802-3840x2160-1G-8G-SAMTRON-REF80.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
HOLA TENDRIAS EL SOFTWARE O FIRMWARE PARA UNA PLACA TP.5510I.PB801?? ES DE UN SMART TV PANORAMIC MODELO: PNM-3032-SM
not available
Dear brother, I’ve got a TV with board number TP.MT5510I.PB805
I have its firmware but I don’t know how to push it to the TV board. tried to copy bin, pkg files to a blank USB and powered on the TV but nothing happened. could you please help me?
what is the issue with tv?? if only red light then maybe board fault if stuck on logo that load firmware
bonjous aide moi a trouve tp.mt5510s.pc822 firmware svp
Assalamu Alaikum Bhai
I am searching TP.MT5510S.PB802 for my SkyTech TV 55 Inches. My TV stuck at wisdom Share Smart Cloud. Please Help which to download.
Jazakallah Qair
Yusuf Khan
w.salam
first try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Brother, I tried all the options which you mentioned in the link for reset, but none of them worked. Please help me to resolve the issue.
JQ
Yusuf
then load firmware
Cannot download any of the file, it gives error message. Is it possible to send the link to my email. I will be very thankful to you. [email protected]
My TV name is Sky Tech and board No. tp.mt5510s.pb802
Hello Friend,
Can you help me?
My TV is Sky Tech, model: STV43H5310 Smart. Board nummber: tp.mt5510s.pb802. my tv stuck at Wisdom Share Smart Cloud. Please Help my Where to find and how to download.
Thank you
First, try to hard reset. get an idea from the following post:
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
I tried it but it did not work …
then load firmware
Can you give me a link? skytech model: stv43h5310 Board: tp.mt5510s.pb802
please hellp me. I can not find this…
I don’t have one for skytech, you can try another one according to your board and panel specifications
hola mi tv se quedo colgado smartvision TP. M5510S. PB802
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Cordial saludo desde Colombia, por favor solicito su ayuda con este firmware, ya lo descargue pero pide password y no lo encuentro en su pagina, en el titulo dice que es gratis pero si tiene costo me dice
No password set. download all parts then extract anyone of them
Salam mənə bu proqram lazımdı zəhmət olmasa
TP.MT5510S.PB802
download
HELLO HELP PLIASE I NEED FIRMWARE SKYTECH STV32H5311 SMART TP.MT5510S.PB803
Not Available
muchas gracias ude recuperar un tv daewoo con esta placa esta en ingles pero no importa es algo ya que no lo consigo en español pero lo saque de un brick de bootloader claro jumpeando la memoria y despues instalar este firmware que subies milgracias es de 32 pulgadas pense que se lo iba a paragar a el cliente que lo trajo en buen estado y yo lo brikie pero bueno ya por lo menos tengo algo instalado seguire buscando un firmware en español
Glad to know that
