TP.RD8503.PB816

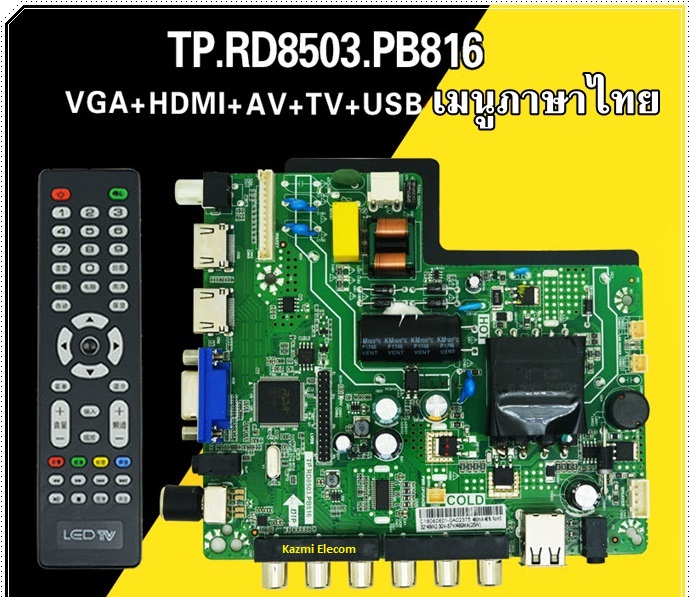

TP.RD8503.PB816 is a universal LED TV Board with a Full HD supported resolution of 1920×1080. It is a combo board means three in one board, a power supply module, an ATV module, and a Backlight driver module are built into this single piece of PCB. It has all the connectivity interfaces as per user requirements like HDMI, VGA, AV, RF, and USB for multimedia playback and for software loading as well.
TP.RD8503.PB816 firmware files are shared in this post for the technician’s support.
General Specifications:
Brand/Mark: CXEL/China Universal
Model: TP.RD8503.PB816
Main Chipset: RDA8503
Product: LED TV Driver Board
Resolution: Up to 1920×1200
Panel: 26″ to 50″
Panel voltage: 12V
Input Supply: 220V AC
Backlight: 45-65V 35w, 66V-94V 45w
Speaker Output: 2x5W
Service Code: Menu+1147
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.RD8503.PB816 firmware free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.RD8503.PB816_GENERAL_1366_768 | Download |
| 2 | TP.RD8503.PB816_GENERAL_1920_1080 | Download |
| 3 | TP.RD8503.PB816_Samsung_1366x768 | Download |
| 4 | TP.RD8503.PB816_Samsung_1920x1080 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
U r gret sir
Thanks ok
TP.RD8503.PB816 1366*768 SAMSUNG FILE DOWNLOAD NAHI HO RAHA HAI
PLEASE HELP
website k homepage pe video hy woh dekh len
tp.rd8503.pb816 1366*768 samsung file unable to download please help. i follwed your video that you put it in the homepage .but not download .failed message comes while downloading.please help
server issue will be resolved soon
sir i need your help
ek panel maine change kiye to usme screen on ho raha hai aur usme kewal color change ho raha hai red,green, blue, white, black
apke video se help le kar kafi option try kiye par solve nahi huwa jaise power button hold karke rakhna….
isme jo board hai CV338H-A42
PANEL= PANDA LC390TA2A
Dear kuch panels me agar resolution match na ho to woh aise he colours show karte hen, ap isme correct resolution ka software dalen
1366*768 ka genral wala download karke dala tha par ye bhi nahi liya aur sumsung wala download nahi ho raha hai
Tp.rd8503.pb816 1366×768 samsung software china board ka chiye
Assalamo alikom
Sir as TP.RD8503.PB816
Ka link error araha hin please check this link
Noted. it will be updated soon
Ok thanks sir
Main ic nomber kya hai
Sir,
TP.RD8503.PB816 BOARD RESTART HO JATA HAI RED LIGHT BLINK KAR KE
KYA PROBLEM HO SAKTI HAI,
PLEAE HELP..
power supply issue
Kazmi bhi samsung logo wala firmware per remote konsa chalage ga tp.rd8503.pb816 combo board ha
not confirm. maybe samsung ka he remote work kare ga
Sir jee CHINA LED BOARD TP. RD8503. PB816 WAS STANDBY LED BLINKING AND RAM SUPPLY IS COMES AT PLUG IN AND STILL SIR PLEASE CHECK
sir I have need for lvds pin detail of TP.RD8503.PB816
all universal boards have the same lvds pin connection
Plz is 8503 ka circut diagram mil jy ga
https://www.kazmielecom.tech/2018/08/29/universal-lcd-led-tv-controller-boards-schematic-diagrams.html
TP.RD8503.PA671 Schematic Diagram
Thankss
1920×1200 show nh horaha
is board me yeh resolution nai hoti
WINRAR CANNOT OPEN FOR CLIPBOARD ERROR
try with 7zip
Does firmware have a mirror option?
Excuse me I’m looking for the big size file the one you mentioned in the other article , the one that over 100 mb not just the 4mb one , I’m looking to do new firmware from scratch not just updating. Thank you so much
only 4mb is actual flash memory of this board
Thanks
The remote stopped working after the installation, can you help me, thanks
use universal remote control
Alright thank you so much
My screen is on but not working after doing usb upgrade from the system itself by using remote not just the method that we use usb flash dumb, and the files that was on the usb were[ .bin& .tar]. I think .tar file missed up my motherboard or my panel. Can you help please.thanks
maybe panel resolution mismatch. 1366×768 is for 32 to 39″ and 1920×1080 is for 40 and above
thanks very much
Assalam-O- Alikum sir tp rd 8503 pb816 Nobel 32ME7 RED LIGHT BLINK KR RAHEE HAI AFTER 5-7 SECOND BAAD, BOARD PHYSICALLY THEAK HAI KYA SOFTWARE KRNA CHAHYE
w.salam dear software ka issue to nai lagta. agar board k sab voltage theek hen to software try karen backup rakh k
This software cannot be given with USB, so how is this software installed on the TV?
20 data panel ko kasy lagy ga
1920×1080 ka software hoga
N.H352.801 V6 Frimware required Youtube issue
