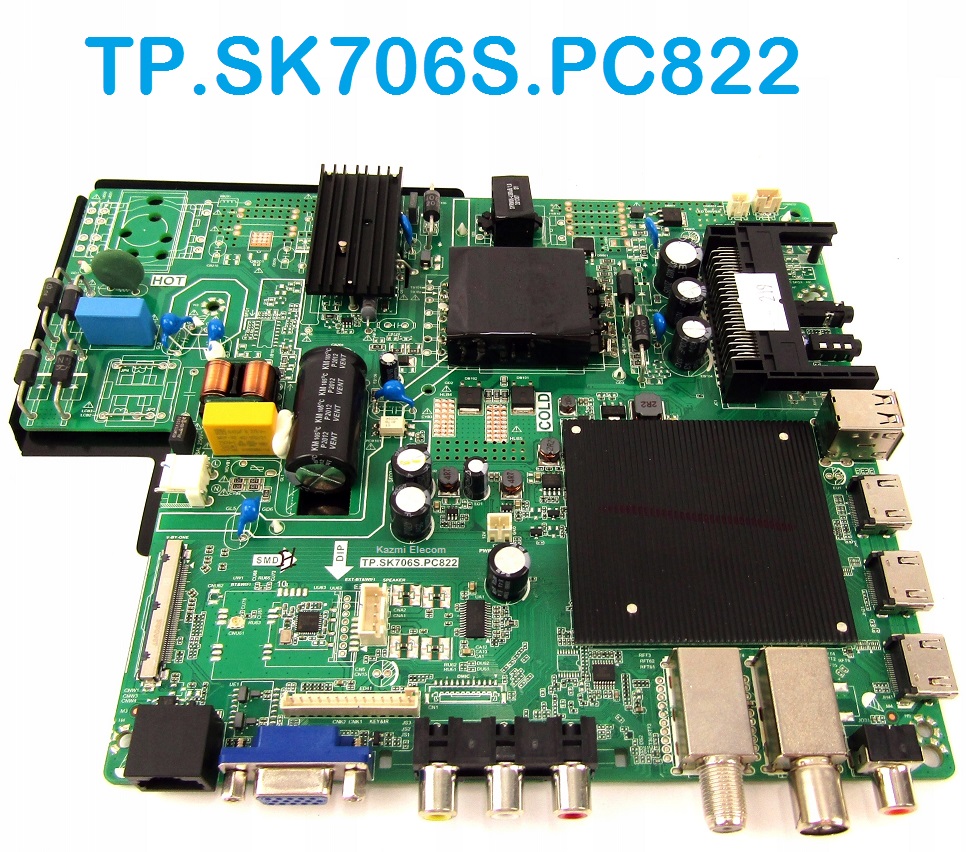

TP.SK706S.PC822 Smart Android Board
TP.SK706S.PC822 is a 4K digital smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 42-65-inch LED panels, with a maximum resolution of up to 3840×2160. TP_SK706S_PC822 is a three-in-one (combo) board, i.e., a power card, a backlight driver module, and an ATV board integrated into a single motherboard.
TP-SK706S-PC822 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It is also built in a Wireless interface. TP.SK706S.PC822 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. TP.SK706S.PC822 supports analog TV signals, and digital TV (DVB-C/T/T2). TP SK706S PC822 firmware file is given below for the technician’s support.
General Specifications:
Model: TP.SK706S.PC822
Main Chipset: MTK9632
Resolution Supported: 3840×2160
Panel Power: 12v, 5v
CPU: Quad-core ARM core processor A35
GPU: Dual Core
OS: Android 9.0 (Without Bluetooth) and Android 11 (with Bluetooth)
Ram: 1/2 GByte
Rom: 8/16 GByte
Audio Output Power: 2X8 W (8Ω)
Backlight Current: 500-800mA
Backlight Voltage: 135-160V
Power Input: 100 to 240v AC
Tuner: R842
Service Code:
Firmware File: allupgrade706_8GB_1P5GB_ref71.bin
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TP.SK706S.PC822 Firmware files for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | TP.SK706S.PC822_3840x2160_1.5G_8G_REF71.part1 | Download |
| TP.SK706S.PC822_3840x2160_1.5G_8G_REF71.part2 | Download | |
| TP.SK706S.PC822_3840x2160_1.5G_8G_REF71.part3 | Download |
