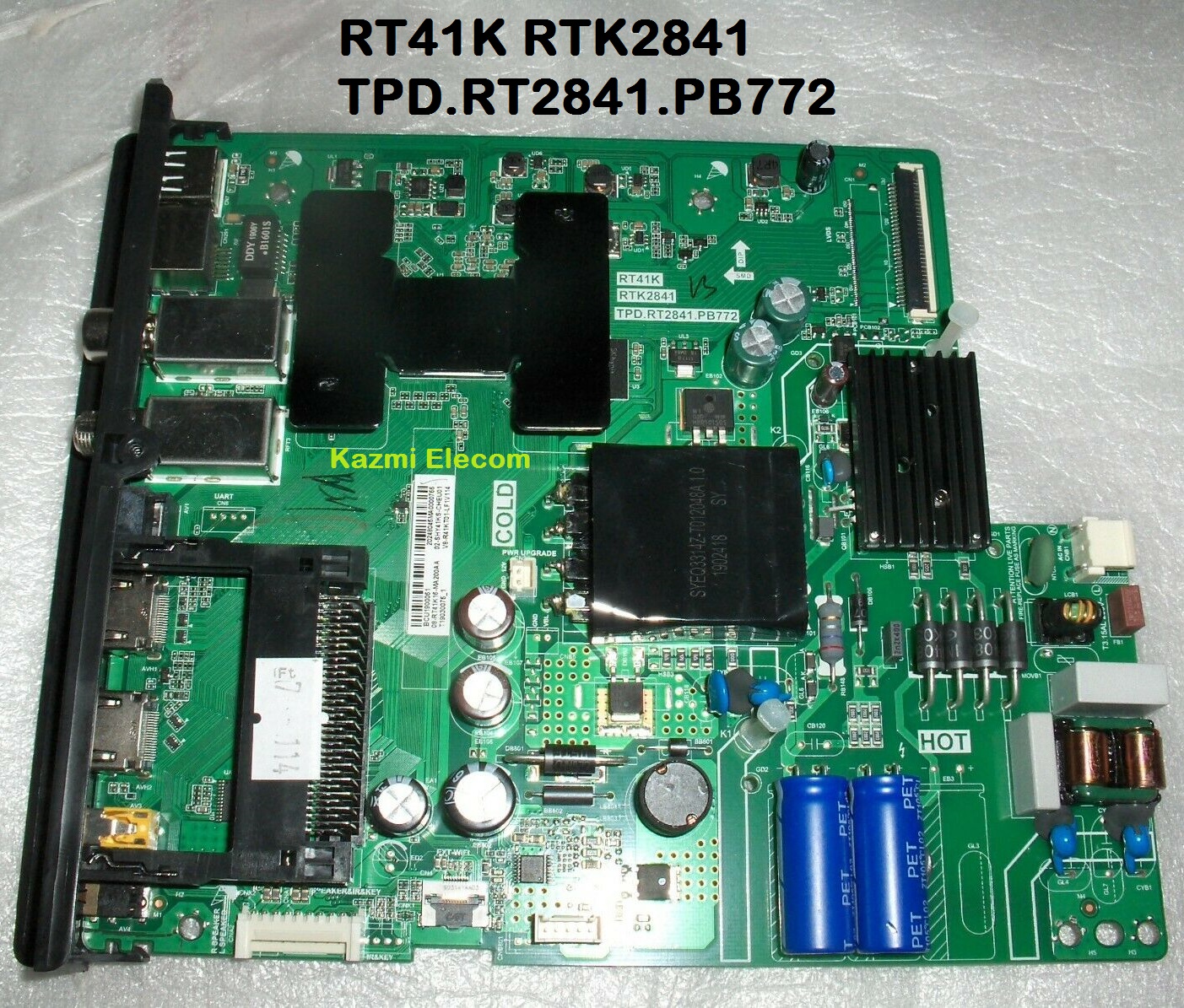

TPD.RT2841.PB772 Smart Android FHD Board
TPD.RT2841.PB772 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, maximum resolution of up to 1920×1080 FHD. TPD_RT2841_PB772 is a three-in-one (combo) board i.e. power card, backlight driver module, and ATV board is builtin in it. TPD-RT2841-PB772 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It is also built in a Wireless interface.
TPD RT2841 PB772 came with some brand LED TVs like TCL LED TV, Union TV, Thomson LED TV, etc. Its USB interface can be used for loading software as well as for playing multimedia files. TPD.RT2841.PB772 support for analog TV signals, and digital TV (DVB-C, DVB-S2, DVB-T2). TPD.RT2841.PB772 firmware file is given below for the technician’s support.
General Specifications:
Model: RTK2841 TPD.RT2841.PB772
Main Chipset: RT41K
Resolution Supported: 1920×1080
CPU: CA53*4 64bit
CPU Frequency: 1.5 Hz
GPU: Mali470x2
OS: Android
Ram: G
Rom: 8Gb
Audio Output Power: 2X8 W (8Ω)
Tuner: Auto/PAL/NTSC/SECAM, DK/BG/I/M DTV:DVB-T2/T/C
Backlight: Adjustable
Backlight Power:
Service Code:
Power Input: AC 100V-240V 50/60Hz
Power Consumption: 75W
Firmware File: Install.img
Firmware Type: USB upgradeable Firmware, TPD.RT2841.PB772 program data USB
Firmware Version: V8-R41KT01-LF1V226
Product: TCL, Union TV
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
TPD.RT2841.PB772 Firmware file for Free Download:
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
asking for TCL L40S6500
TPD.RT2841.PB772
there are 10 files, do we have to download all or just one?
yes, this is for 40s6500.
download all parts then extract any one of them
I have tcl 32s6500 stop a logo tpd. rt. 2841. pb 775
try to reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
yes
I am looking for TPD.RT2841.pb775
TCL 32S65A
NA
sir im looking for tv LED32S68001 chaces no. RT41v TPD RT2841 PB771 it same for PB772 sir pls help me
Hello , firmware for tcl 32 ” no Roku. Main Is tpd.rt2841.pb771 , do you upload in your site? Thank you for your help
NO
Sir send the firmware of TPD.RT2341.PB771 as soon as pssible.
NA
sir may I connect 42 inch FHD pannel use this board … The board are support or not sir
supported
Sir is it same for RTK2841 RT41V1?
(Tcl Led 32s6500)
TCL 32S6500 RT41V RTK2841 TPD.RT2841.PB771 1.0.0
Maybe sound/tuner ic is different
Thanks foe reply.
Can you provide link for tpd.rt2841.pb771 1.0.0
NA
I have tcl 32s5200 stack in remote display on screen how to fix this
First, try to hard reset:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Otherwise, load firmware:
https://www.kazmielecom.tech/how-to-load-firmware/
HI SIR.
WE NEED IFFALCON 40F2A MODEL
CHASSIS NO RK41K RTK2841 TPD.RT2841.PB772
Hi Sir
We need TPD.RT2841.PB771…RT41V, RTK2841
NA
TCL LED40S6800 / TPD.RT2841.PB772 need firmware
please help me’ thanks..
NA
thank you
how upgread frimware tpd.rt2841.pb772
can not upgrade
We want circuit diagram this board
hi master i need to learn how to program mstar, mediatek etc
https://www.kazmielecom.tech/how-to-load-firmware/
Bonjour, je recherche sofware pour tv tcl rtk2841
search by model number or board number or software version
Good day sir,
How do I load the firmware, after coping the file into the USB stick and connect it to the TV, do I have to hold down the power button for it to start? Or should I just connect the power plug and wait for it to start loading the firmware.
I would like you to briefly tell me how to start the loading.
press and hold the power button
I tried that, that is to press and hold the power button connect the cable to maiins and it didn’t work. The fault of the TV is not booting up. Rather it keeps going to recovery mode and I can’t select the resect option because the TV only have power button, no volume button. The model of my TV is 43S6500 and I saw your other post TCL 43S6500FS. So I want to know how if they are the same firmware or different since you indicated 49″ for this one.
One more thing I would like to know how to load the firmware.
Thanks
https://www.kazmielecom.com/how-to-load-firmware/
mostly observed DRY System IC in TCL boards
I tried all 5 methods and it didn’t work, I want to know if this firmware is different from this https://www.kazmielecom.tech/tcl-43s6500fs-software/ TCL 43S6500FS
hardware issue
I want software
Dear Kazmi Electronics,
I have a iffalcon 32f2a, need firmware for it, it stuck on the iffalcon logo,
Details are
40-rt41v1-mpc2hg
v8-r41kt01-lf1v155.006446
RTK2841
RT41V1
https://www.kazmielecom.tech/tcl-32s6500s-software/
Dear Kazmi Electronics,
I have TCL LED, 49S6500, did reset it from inside android menu, LED rebooted to complete the factory reset, now after reboot screen displays nothing, backlight is working fine, power LED keeps blinking. tried to plug in the USB with the above firmware which never boots, tried pressing and holding the button, which does nothing, please help!
Thanks.
LED keeps blinking means stuck on boot. can be reset by recovery tool or jtag process. visit to nearest technician
