ZS.Z53RL.A81 Firmware Free Download

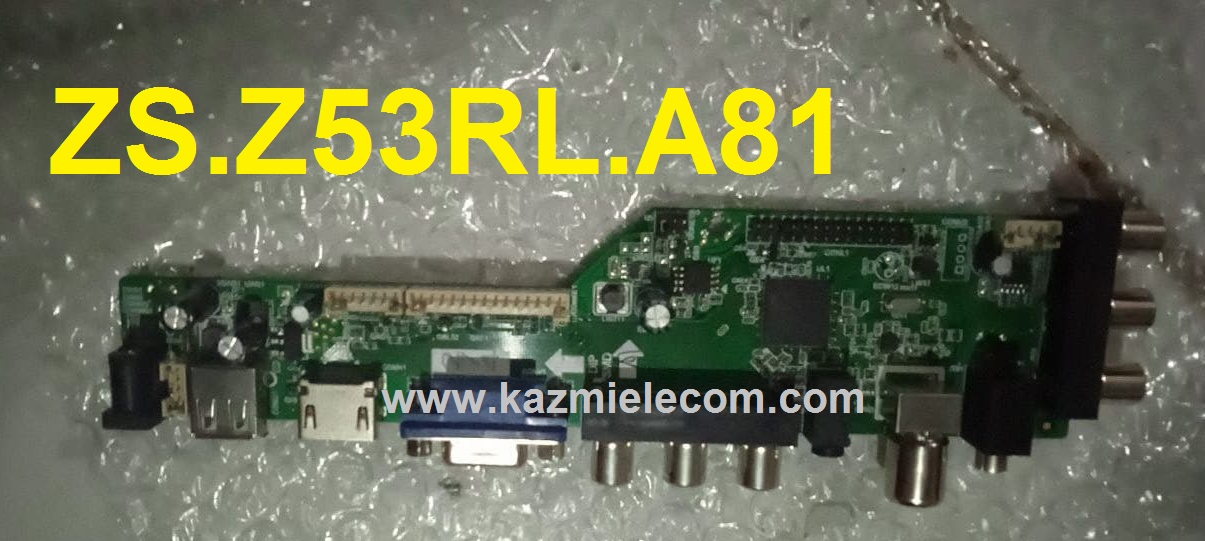

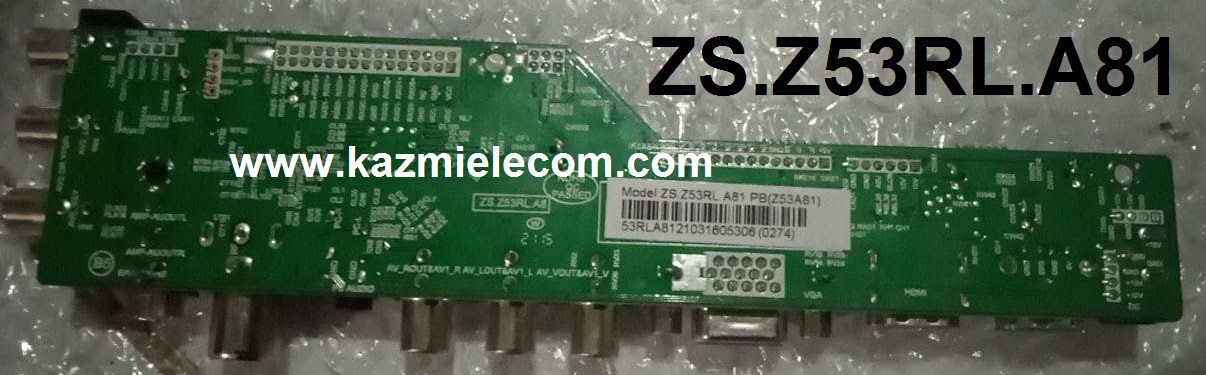

ZS.Z53RL.A81 Universal Board

Basic Info:

Model No. ZS.Z53RL.A81

Main Chipset: TSUMV53RUUL-Z1

Trademark:

Display Format: up to 1920×1200 (FHD)

Screen Panel Supported: 8.9-42 inch

Aspect Ratio: 4:3, 16:9 & 16:10

Board Size:

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes (Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Chinese, Italian, Spanish)

Input/Output Ports: HDMI, VGA, DUAL AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into FAT32 USB Disk
2. Plugin the U disk into the Mainboard USB port of the LCD/LED TV
3. Switch ON the power and Wait until even the IR indicator led stops flashing
4. Done. Unplug the U-disk (It will take max 1 min to upgrade firmware)

Factory Service Mode:

Menu+1147

Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first. No need to install panel resolution firmware. Just enter to service menu and change the panel type.

How to Download ZS.Z53RL.A81 Firmware File:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

ZS.Z53RL.A81 Firmware Free Download:

• ZS-Z53RL.A81 ORG DUMP
