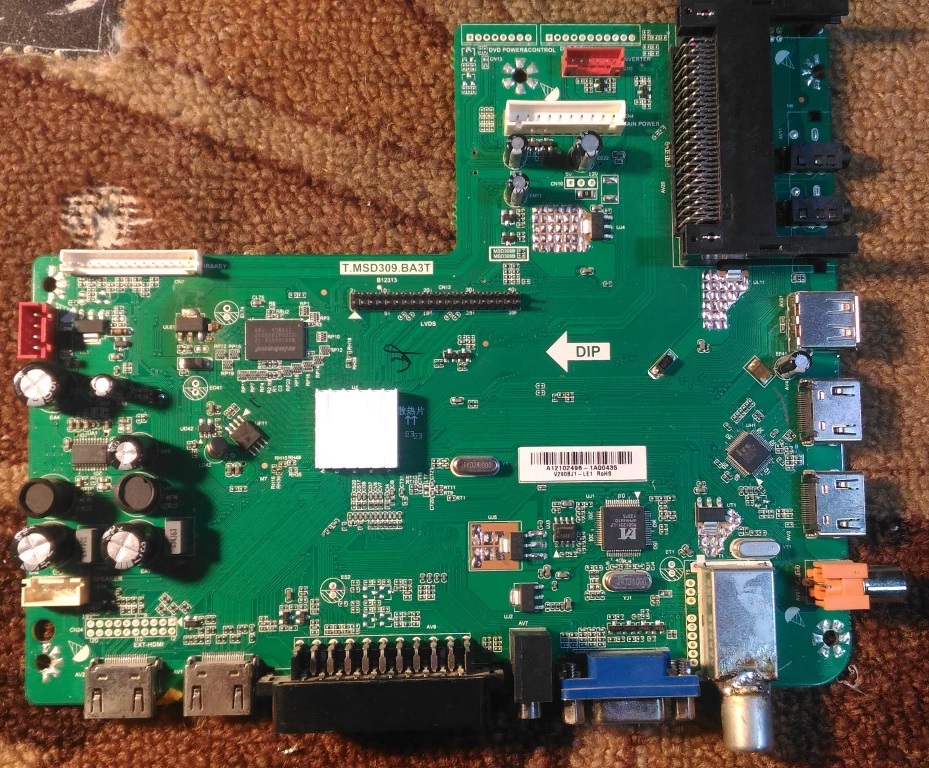

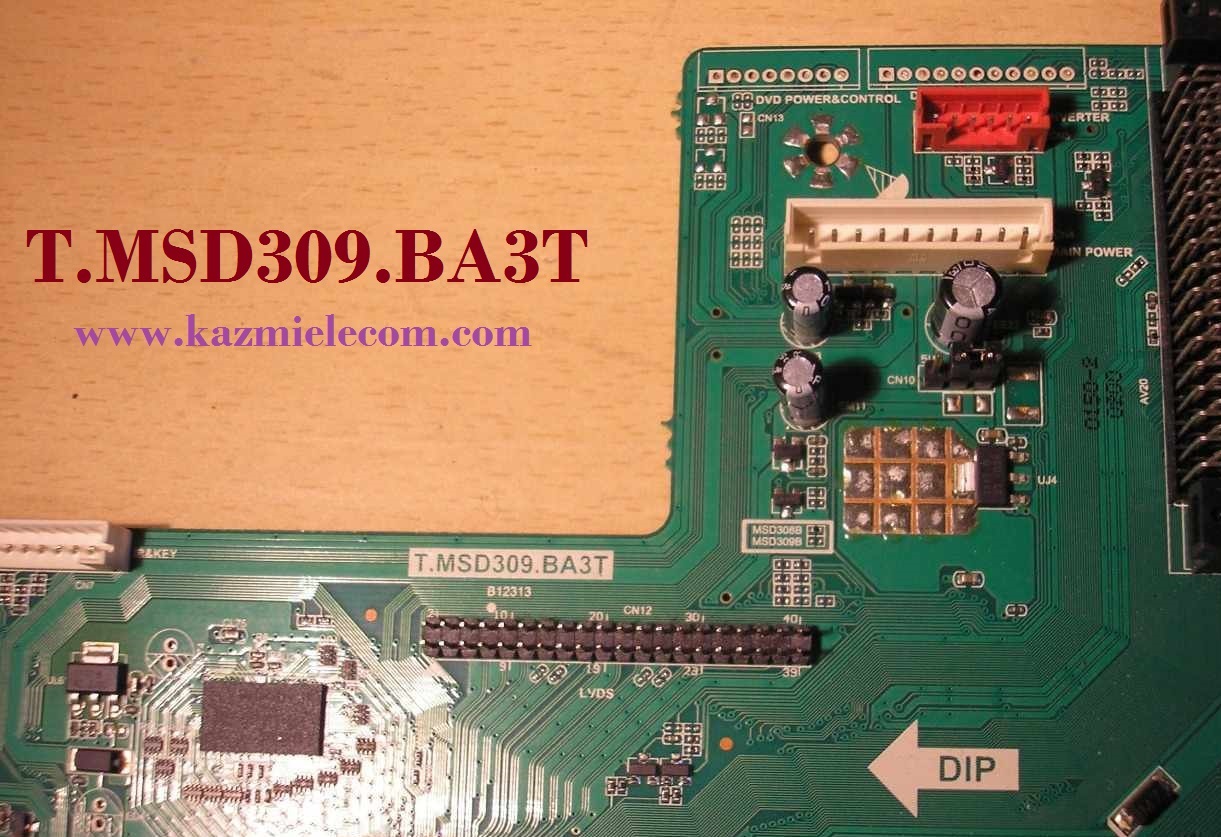

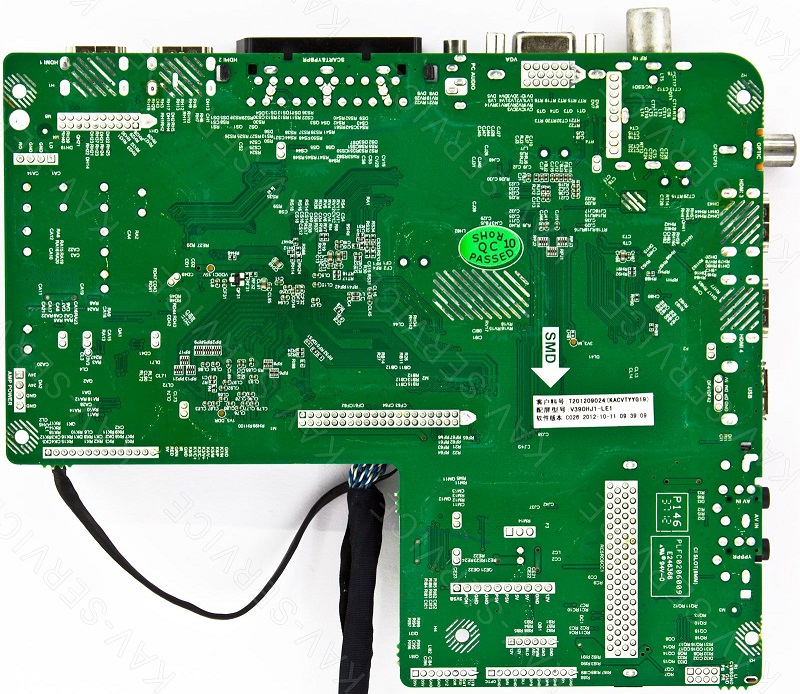

T.MSD309.BA3T LED TV Board
T.MSD309.BA3T is a simple ATV&DTV Driver Motherboard designed for LCD/LED TVs. T_MSD309_BA3T board is suitable for the Asia Pacific and the Middle East markets.T-MSD309-BA3T is a non-Combo Board. The main power module, LED backlight inverter circuit are required and ATV/DTV Card is builtin into the motherboard.
T MSD309 BA3T has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.T.MSD309.BA3T firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: T.MSD309.BA3T
Main Chip: MSD309BT
Product: LED TV
LED Backlight: NA
Flash IC: 4Mb
Screen supported: 26-48 inch
Resolution: Up to 1920×1080
HDMI: 4
USB: 1
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Menu 1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dumping files then read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
T.MSD309.BA3T firmware for free download:
