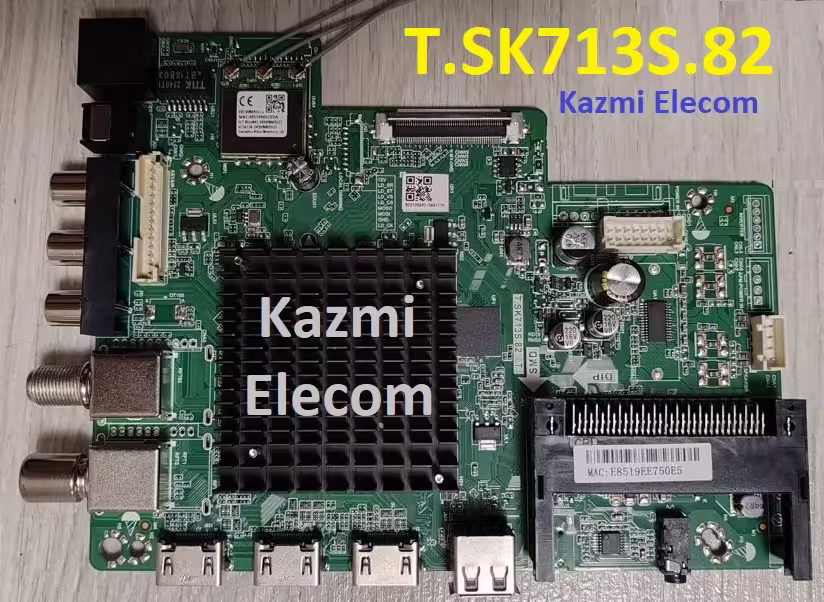

T.SK713S.82 Smart UHD Board
The 4K digital smart android Intelligent Network LCD/LED TV Board is called T.SK713S.82. It is compatible with LED panels ranging in size from 42 to 65 inches and has a resolution of up to 3840 x 2160. It works with the LVDS interface. The T_SK713S_82 is a power card, backlight driver module, and ATV board all contained within a single motherboard.
For wired internet connectivity, the T-SK713S-82 has multiple input interface ports, including USB, HDMI, AV, a Scart port, and a LAN port. There is also a Wireless interface built into it. A few brand-name LED TVs came with the T.SK713S.82. It has a USB interface that can be used to play multimedia files and load software. Both digital and analog TV signals are supported by T.SK713S.82 (DVB-C/T/T2). The T SK713S 82 firmware file is provided for technician support below.
General Specifications:
Model: T.SK713S.82 (T)
Main Chipset: MTK
Resolution Supported: 3840×2160
Panel Power: 12v, 5v
CPU: Quad-core ARM core processor A35
GPU: Dual Core
OS: Android 13.0
Ram: 1.5 GByte
Rom: 8 GByte
Audio Output Power: 2X8 W (8Ω)
Backlight: 800mA
Backlight Power:
Power Input: 100 to 240v AC
Tuner: R842
Service Code:
Firmware File: allupgrade_aml962d4_an13_8G_1P5GB_100.img
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
T.SK713S.82 Firmware files for Free Download:
For video tutorials, visit “Kazmi Elecom” on my YouTube channel.
i have been watching your videos on youtube and i like you alot
I am trying to download TP.SK713S.PC822 (N) firmware but the download button on your page is not working
could you please send the software to my mail?
links available under the download now button at the end of post
https://www.kazmielecom.tech/tp-sk713s-pc822-firmware/
Please I need TP.SK713.PC822 ( T ) help me get it
i have only:
https://www.kazmielecom.tech/tp-sk713s-pc822-firmware/
