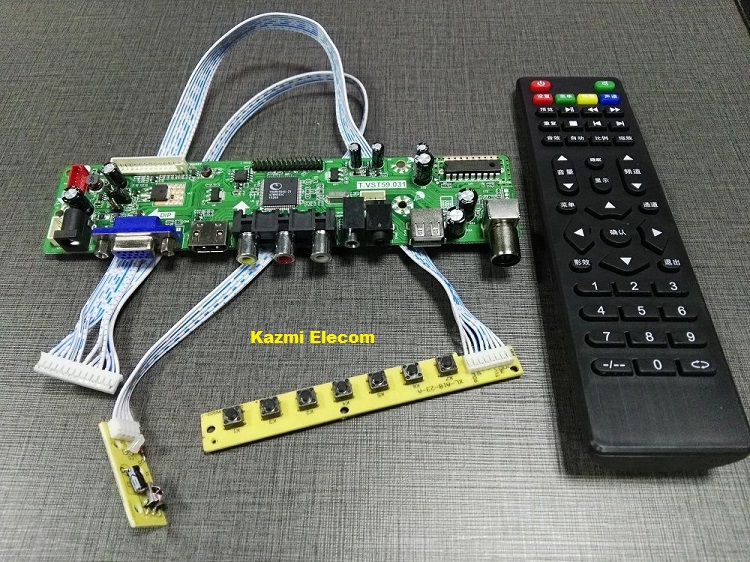

T.VST59.031 Universal LCD/LED Controller Board
T.VST59.031 is a small universal driver board for LCD/LED TV Panel Screens.
Basic Info:
Model No. T.VST59.031
Main Chipset: TSUMV59XU-Z1
Trademark: Leroy
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
Board Size: 168.00 X 42.0 (mm)
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes

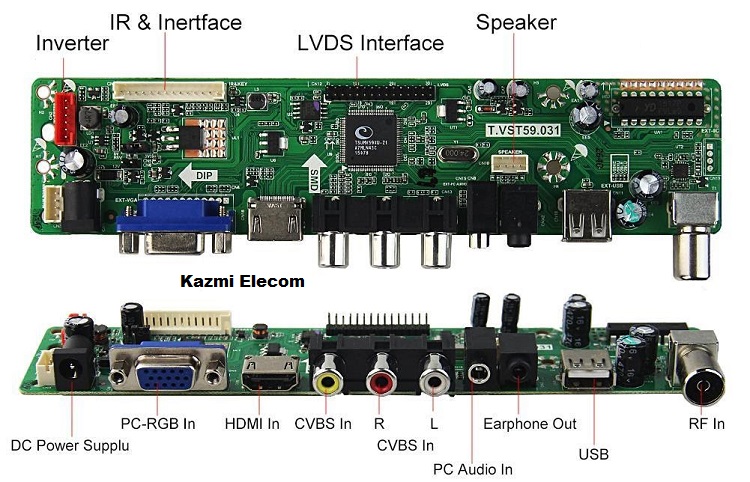

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to the U disk base on your screen size.
Step 3: Connect the U disk with Mainboard
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
(Note: *During Step 5,the power supply can’t be cut off *The same firmware can only be burned once time)
Factory Service Mode:
Menu+1147
Note:
If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download your required software and then extract it you will get the folder. Now copy the files to USB or load with Programmer. For More Detail about the download process, watch the video Click Here

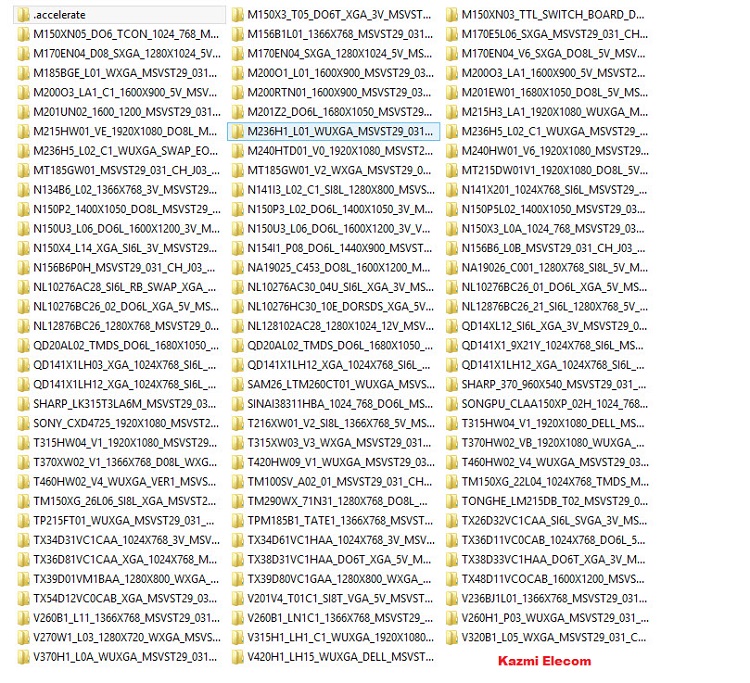

T.VST59.031 Firmware All resolutions Free Download Here :
| S.NO. | ITEM DETAIL | DOWNLOAD LINK |
|---|---|---|
| 1 | T.VST59.031_800x600_General | Download |
| 2 | T.VST59.031_1024x768_General | Download |
| 3 | T.VST59.031_1366x768_General | Download |
| 4 | T.VST59.031_1440x900_General | Download |
| 5 | T.VST59.031_1600x900_General | Download |
| 6 | T.VST59.031_1680x1050_General | Download |
| 7 | T.VST59.031_1920x1080_General | Download |
| 8 | T.VST59.031_1920x1200_General | Download |
| 9 | T.VST59.031_1366x768_LG Remote | Download |
| 10 | T.VST59.031_1366x768_Samsung Remote | Download |
| 11 | T.VST59.031_1366x768_Sony Remote | Download |
| 12 | T.VST59.031_1920x1080_LG Remote | Download |
| 13 | T.VST59.031_1920x1080_Samsung Remote | Download |
| 14 | T.VST59.031_1920x1080_Sony Remote | Download |
| 15 | T.VST59.031_Mix Software | Download |
| 16 | T.VST59.031-Panel-Firmware-USB.part1 | Download |
| T.VST59.031-Panel-Firmware-USB.part2 | Download | |
| 17 | T.VST59.031_17/19 Inch, Wide and Other | Download |
| 18 | T.VST59.031 1280x800 | Download |
| 19 | T.VST59.031 1280x1024 | Download |
