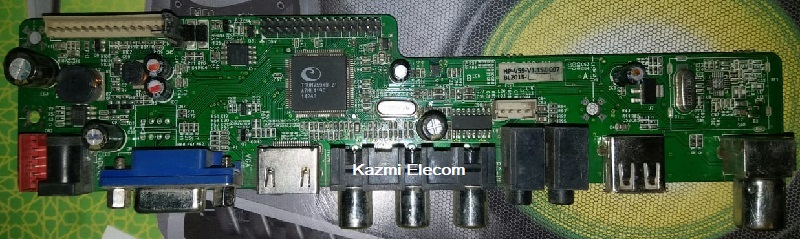

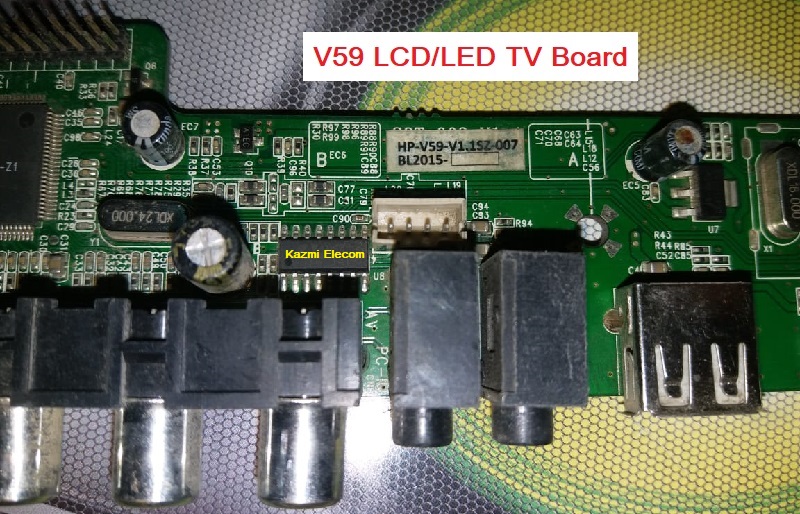

HP-V59-V1.1 Universal Board
Basic Info:
Model No. HP-V59-V1.1
Main Chipset: TSUMV59XU-Z1
Display Format: up to 1920×1200
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade HP-V59-V1.1 Firmware:
Step 1: Empty the U disk
Step 2: Copy the corresponding resolution program (MERGE.Bin) to the U disk.
Step 3: Connect the U disk with the Mainboard
Step 4: Connect the Keyboard and TV Mainboard
Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,
(Note: *During Step 5, the power supply can’t be cut off *The same firmware can only be burned once time)
Factory Service Mode:
Menu+1147
Note:
If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts and then extract any one of them you will get the folder. For More Details about the download process, watch the video Click Here
HP-V59-V1.1 Firmware All resolutions Free Download Here :
- HP.V59-V1.1-800×600-Firmware-USB
- HP.V59-V1.1-1024×768-Firmware-USB
- HP.V59-V1.1-1152×768-Firmware-USB
- HP.V59-V1.1-1280×768-Firmware-USB
- HP.V59-V1.1-1280×800-Firmware-USB
- HP.V59-V1.1-1280×960-Firmware-USB
- HP.V59-V1.1-1280×1024-Firmware-USB
- HP.V59-V1.1-1366×768-Firmware-USB
- HP.V59-V1.1-1400×1050-Firmware-USB
- HP.V59-V1.1-1440×900-Firmware-USB
- HP.V59-V1.1-1600×1200-Firmware-USB
- HP.V59-V1.1-1680×1050-Firmware-USB
- HP.V59-V1.1-1920×1080-Firmware-USB
- HP.V59-V1.1-1920×1200-Firmware-USB
